Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the energy absorber (1) to the body.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the three nuts (2).
Tighten

Tighten the nuts to 25 N-m (18 lb ft).
Install the bolt (3).
Tighten

Tighten the bolt to 25 N-m (18 lb ft).

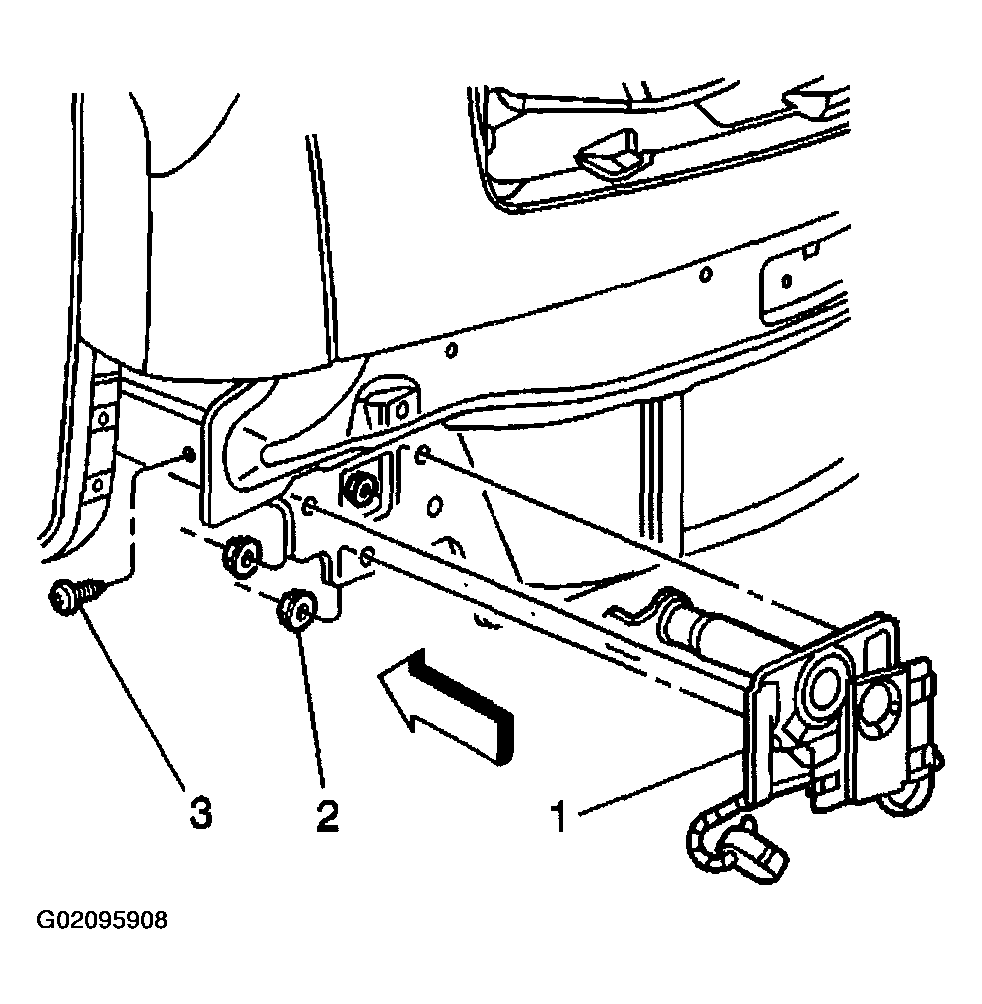

Fig 1: Installing Energy Absorber
Courtesy of GENERAL MOTORS CORP.
Install the exhaust system (4) to the exhaust hangers (3) on the rear energy absorbers.
Install the rear impact bar. Refer to IMPACT BAR REPLACEMENT - REAR BUMPER .

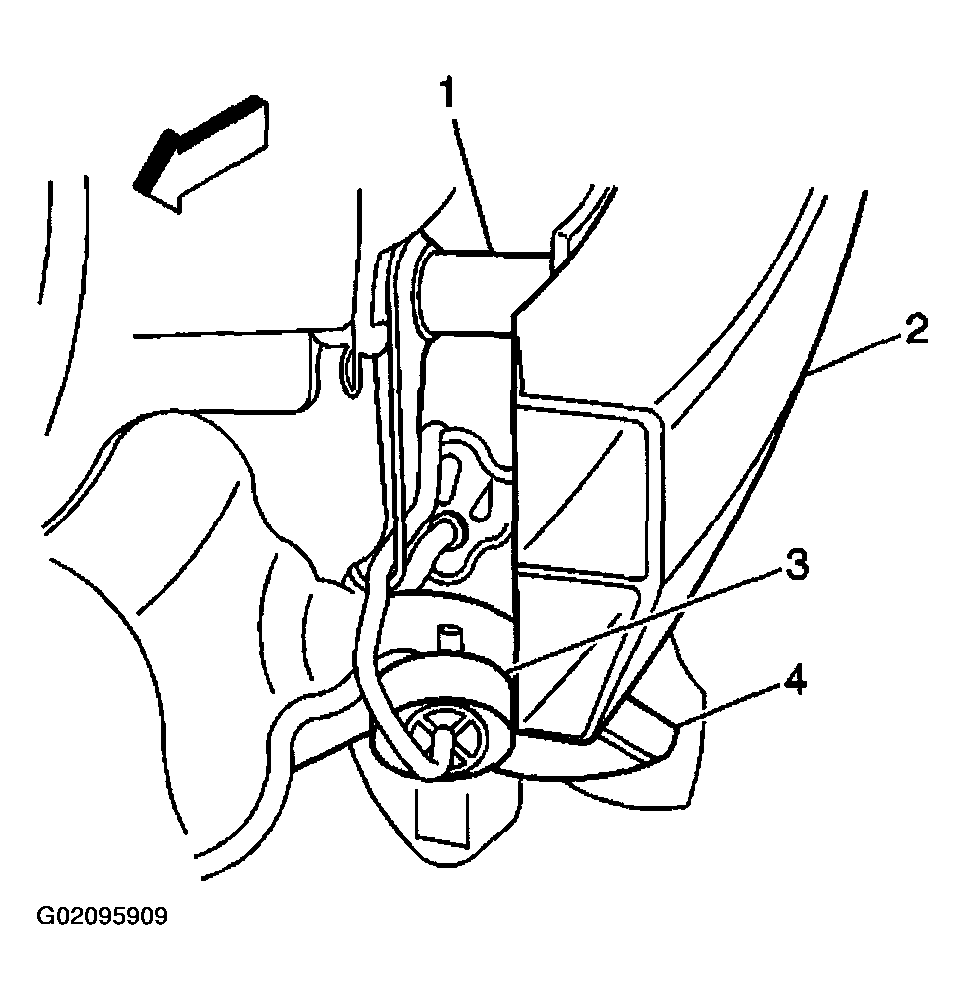

Fig 2: Installing Exhaust System To Energy Absorber
Courtesy of GENERAL MOTORS CORP.
