Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the grille to the fascia.
  2. Install the push-in retainers that hold the grille to the fascia.
  3. Install the fascia to the vehicle. Refer to FASCIA REPLACEMENT -- FRONT BUMPER in Bumpers.

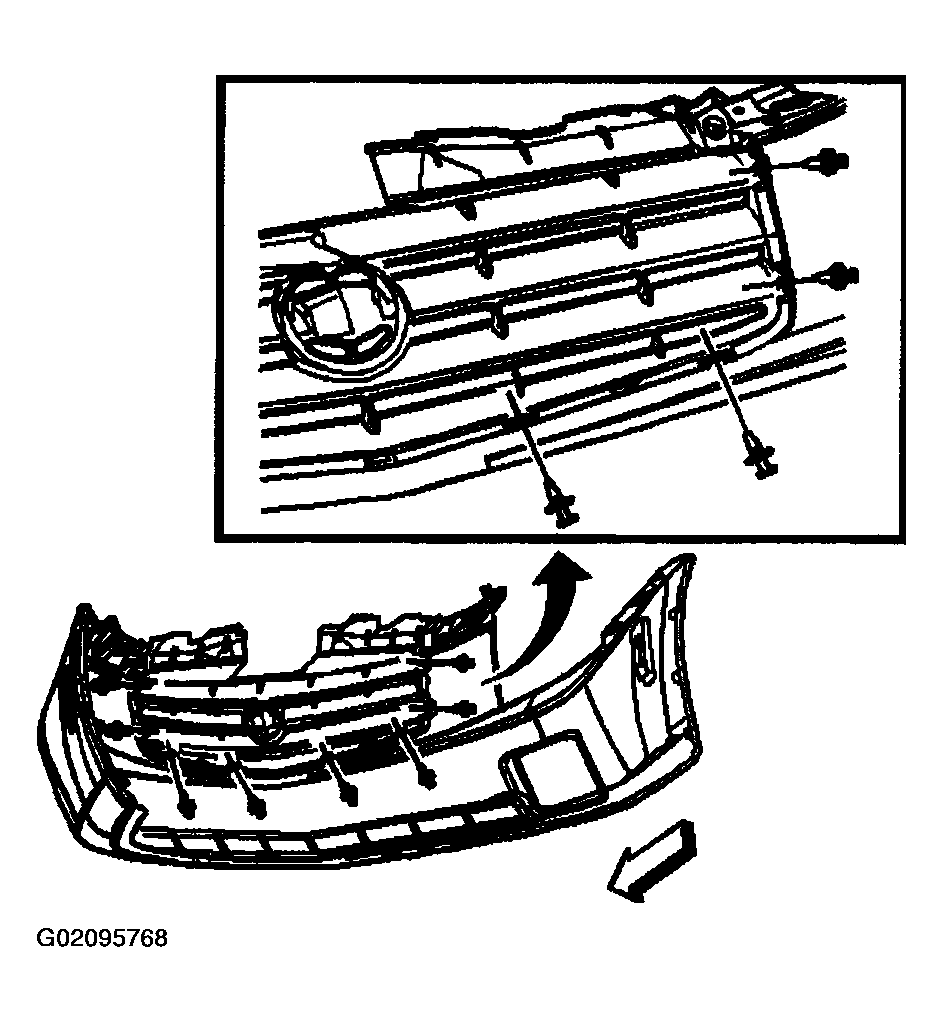

    Fig 1: Installing Grille
    G02095768Courtesy of GENERAL MOTORS CORP.
