Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

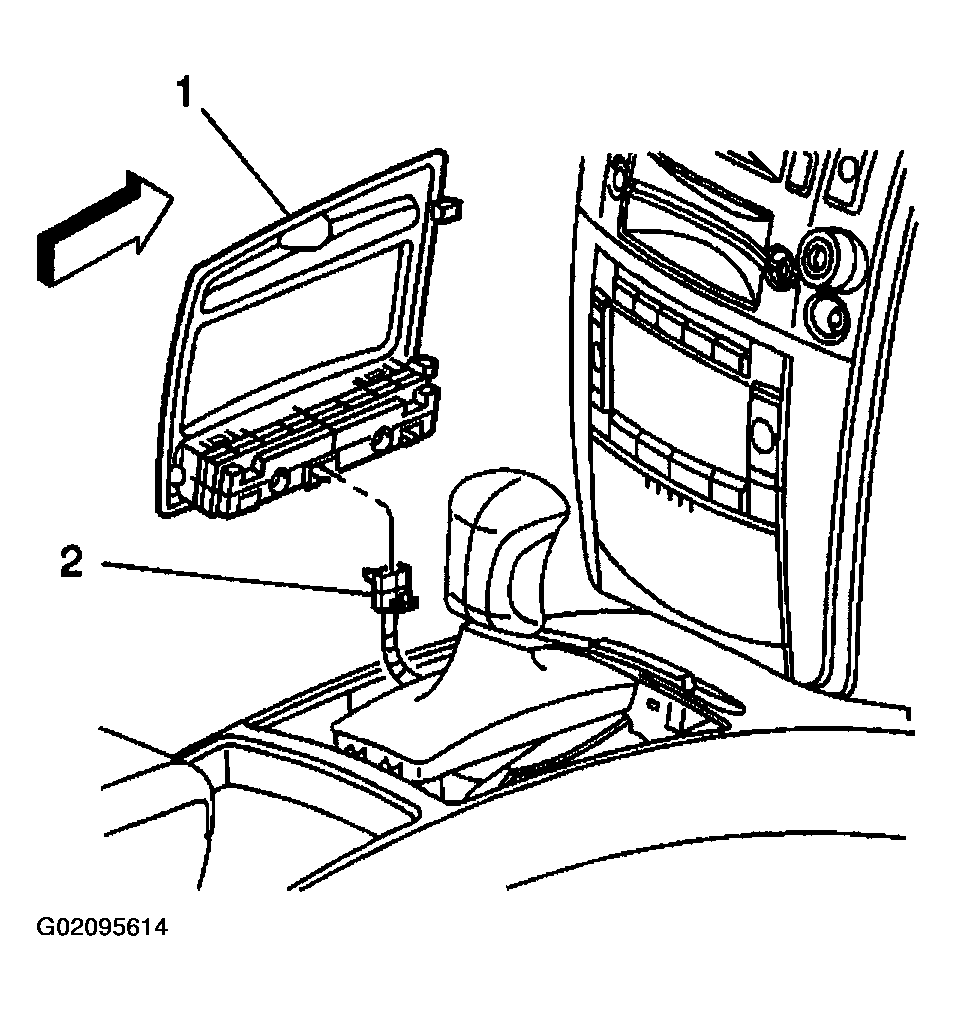

Connect the shift indicator electrical connector (2).

Fig 1: Connecting Shift Indicator Electrical Connector
Courtesy of GENERAL MOTORS CORP.

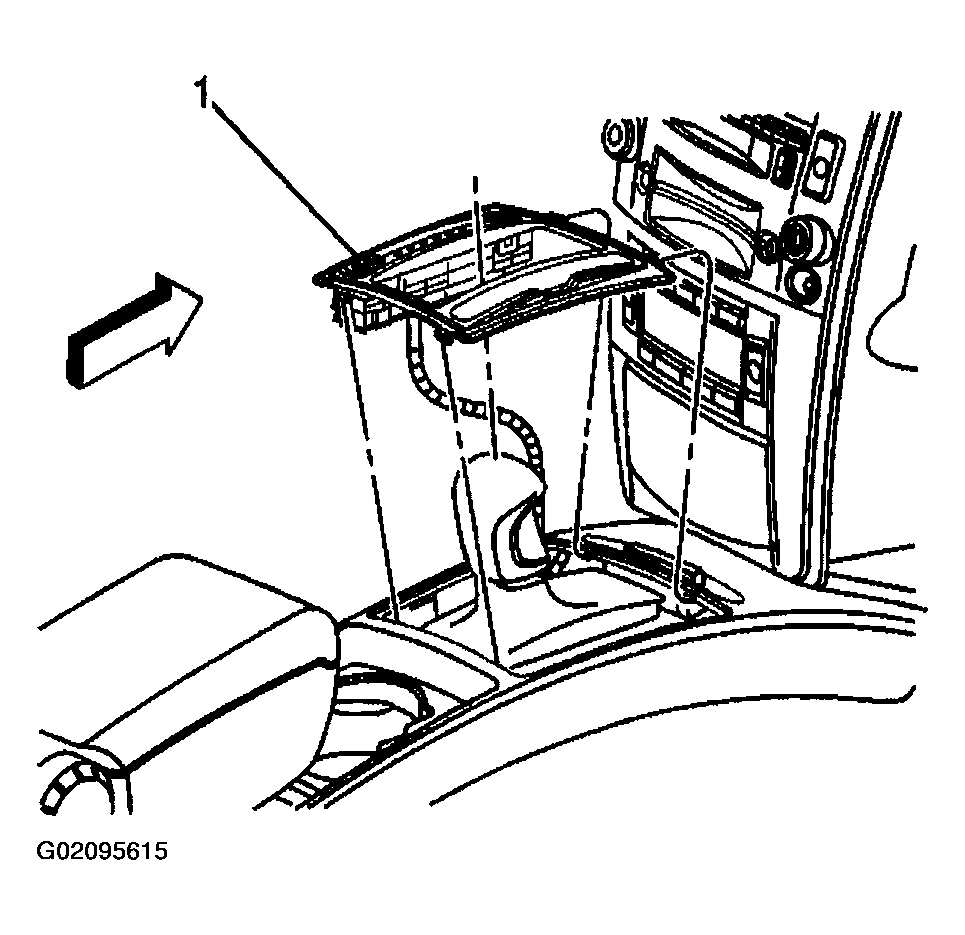

Install the trim plate (1) to the console with the front tabs.
Push down on the rear of the trim plate to lock it onto the console.

Fig 2: Installing Trim Plate To Console
Courtesy of GENERAL MOTORS CORP.
