Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

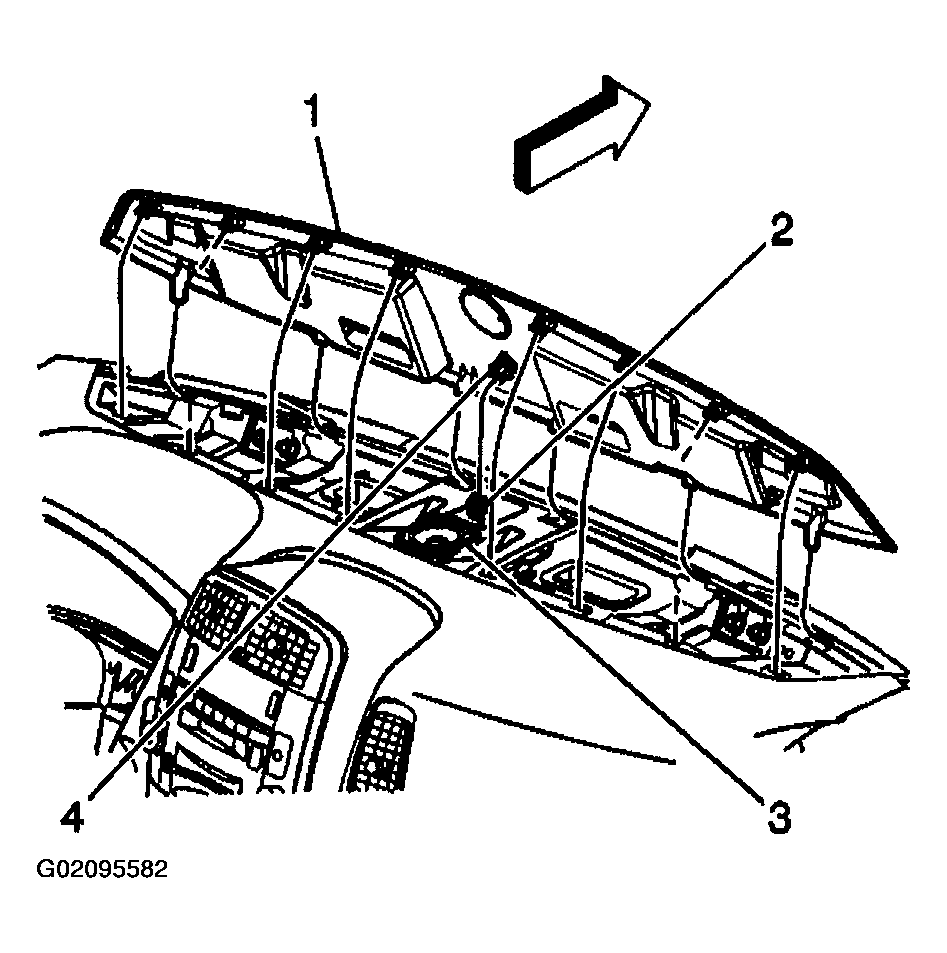

- Line up the tabs on the front of the defroster grille with the holes on the I/P retainer.
- Connect the sunload sensor wiring connector (4).
- Lower the grille (1) and seat the retainers on the I/P.
Courtesy of GENERAL MOTORS CORP.
