Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the console on the floor of the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (1) securing the console to the floor.

    Tighten

    Tighten the fasteners to 25 N.m (18 lb ft).

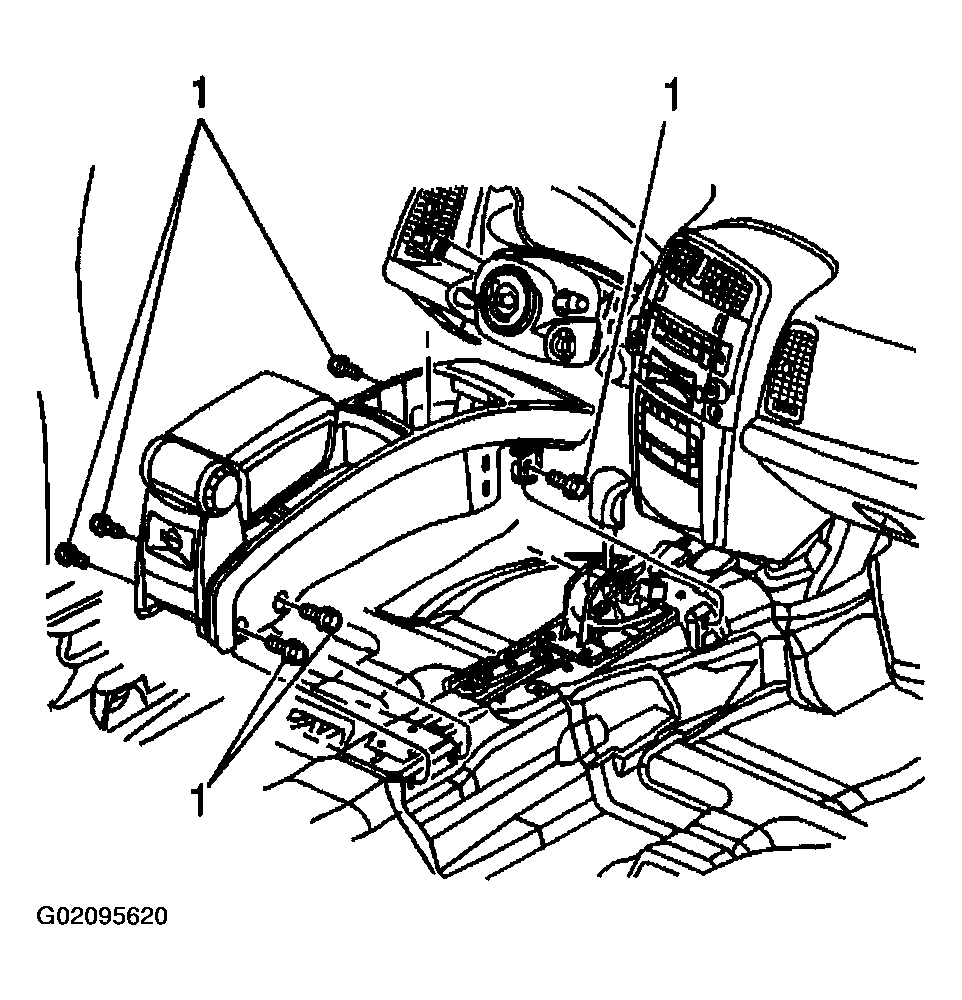

    Fig 1: Installing Screws Securing Console To Floor
    G02095620Courtesy of GENERAL MOTORS CORP.
  3. Install the console side trim panels (1).

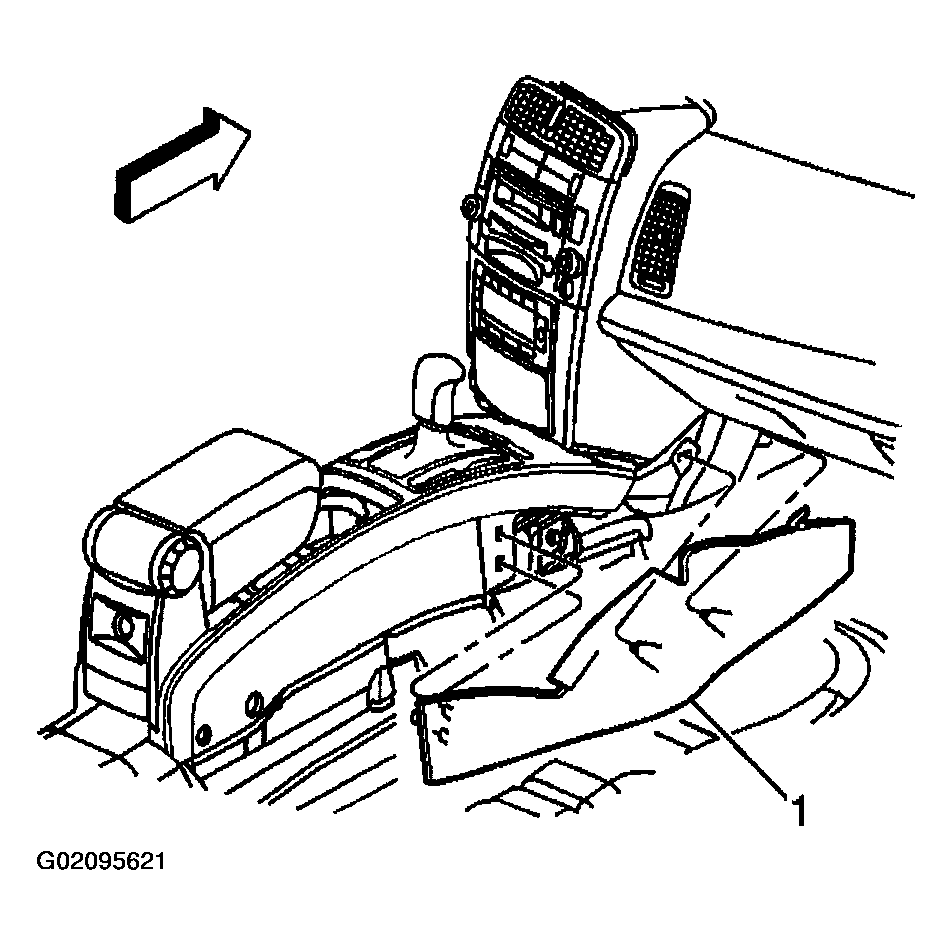

    Fig 2: Installing Console Side Trim Panels
    G02095621Courtesy of GENERAL MOTORS CORP.
  4. Install the shift indicator lamp electrical connector (2).

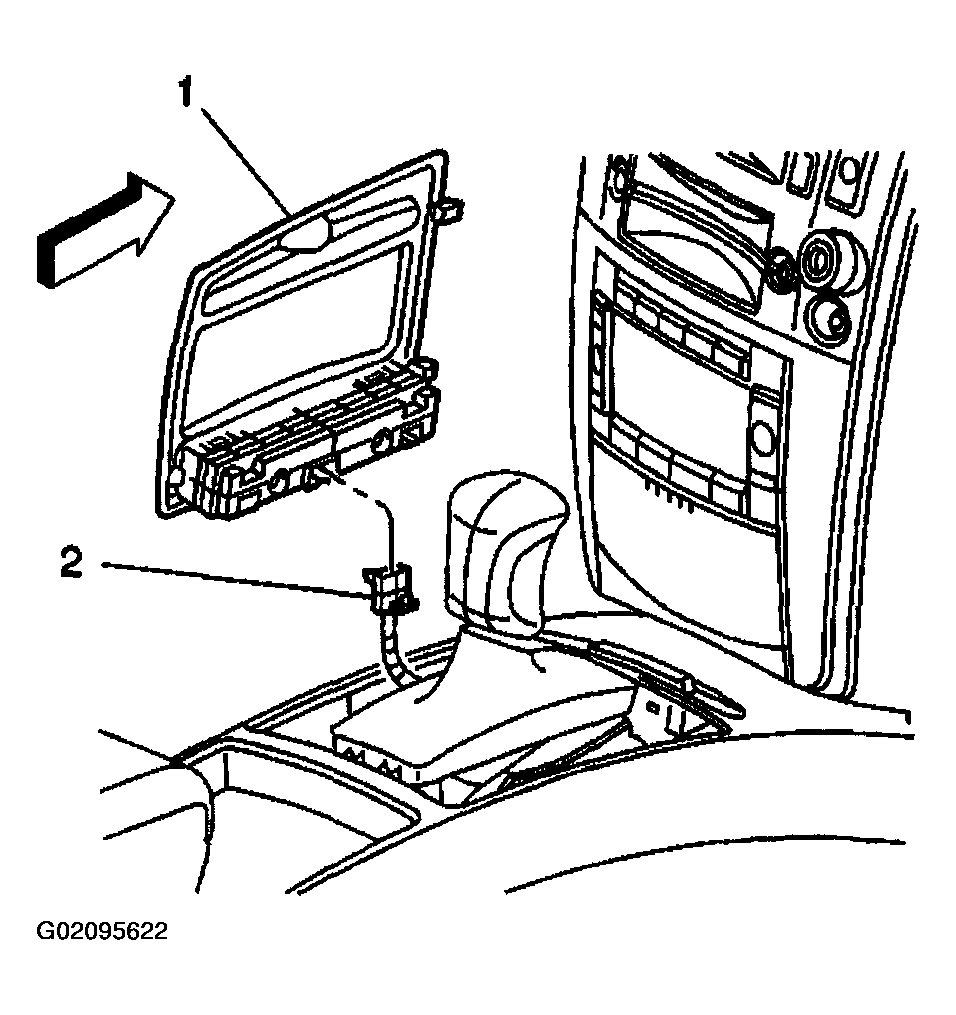

    Fig 3: Installing Shift Indicator Lamp Electrical Connector
    G02095622Courtesy of GENERAL MOTORS CORP.
  5. Install the shifter trim cover (1).

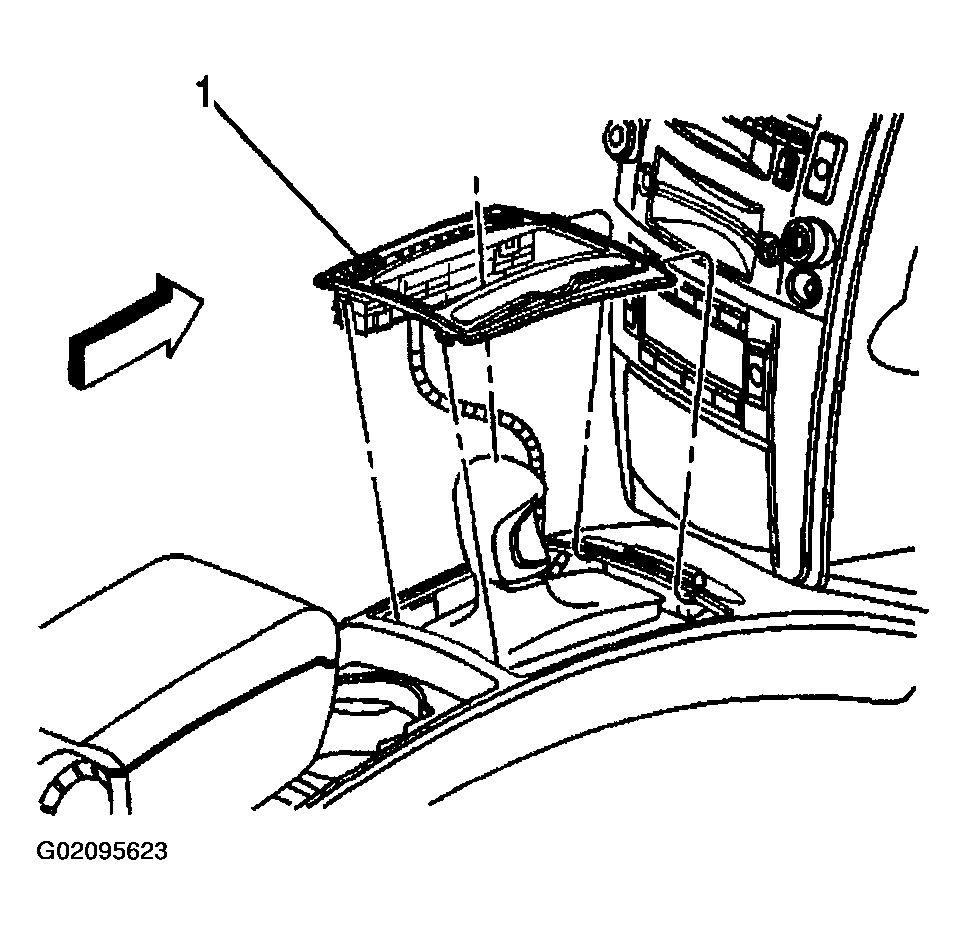

    Fig 4: Installing Shifter Trim Cover
    G02095623Courtesy of GENERAL MOTORS CORP.
