Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Reinstall the speaker to the trim panel
Push the speaker into the retaining tabs to secure it to the garnish molding.
Connect the electrical connector (1).
Install the windshield garnish molding (2) to the vehicle. Refer to GARNISH MOLDING REPLACEMENT -- WINDSHIELD PILLAR in Interior Trim.

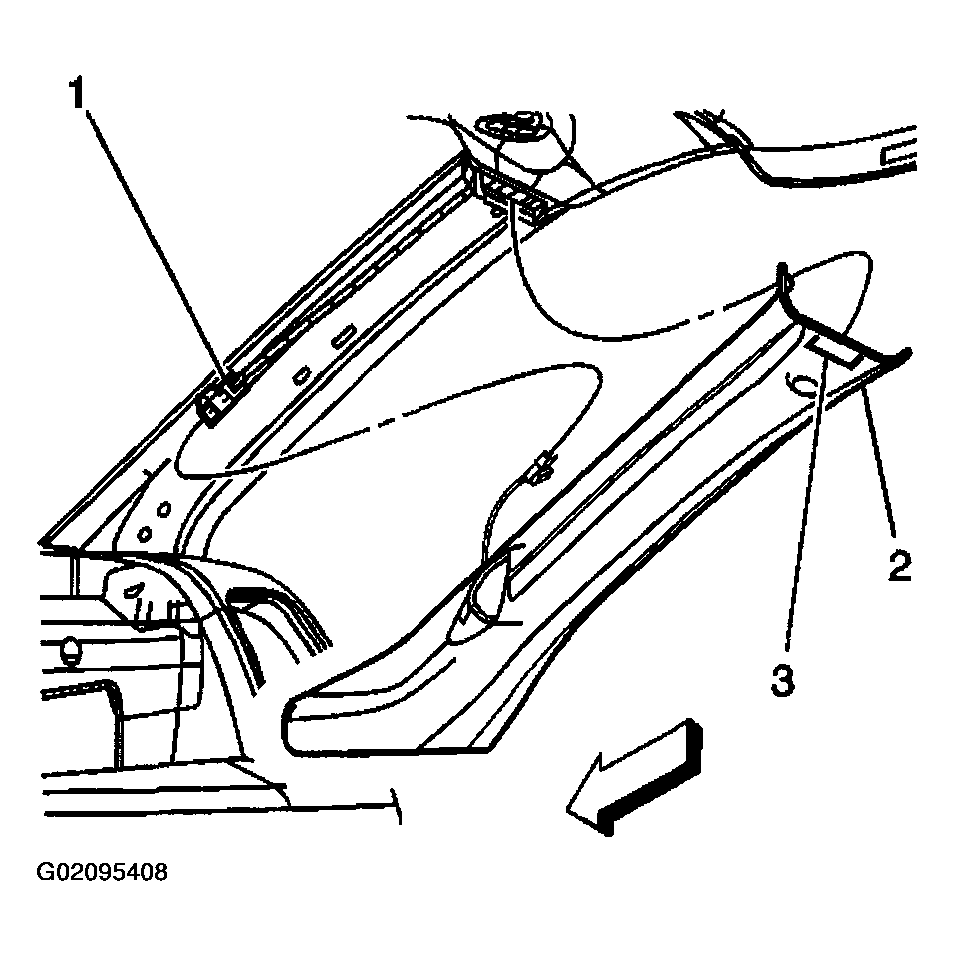

Fig 1: Installing Front Upper Speaker
Courtesy of GENERAL MOTORS CORP.
