Radio Poor Reception

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

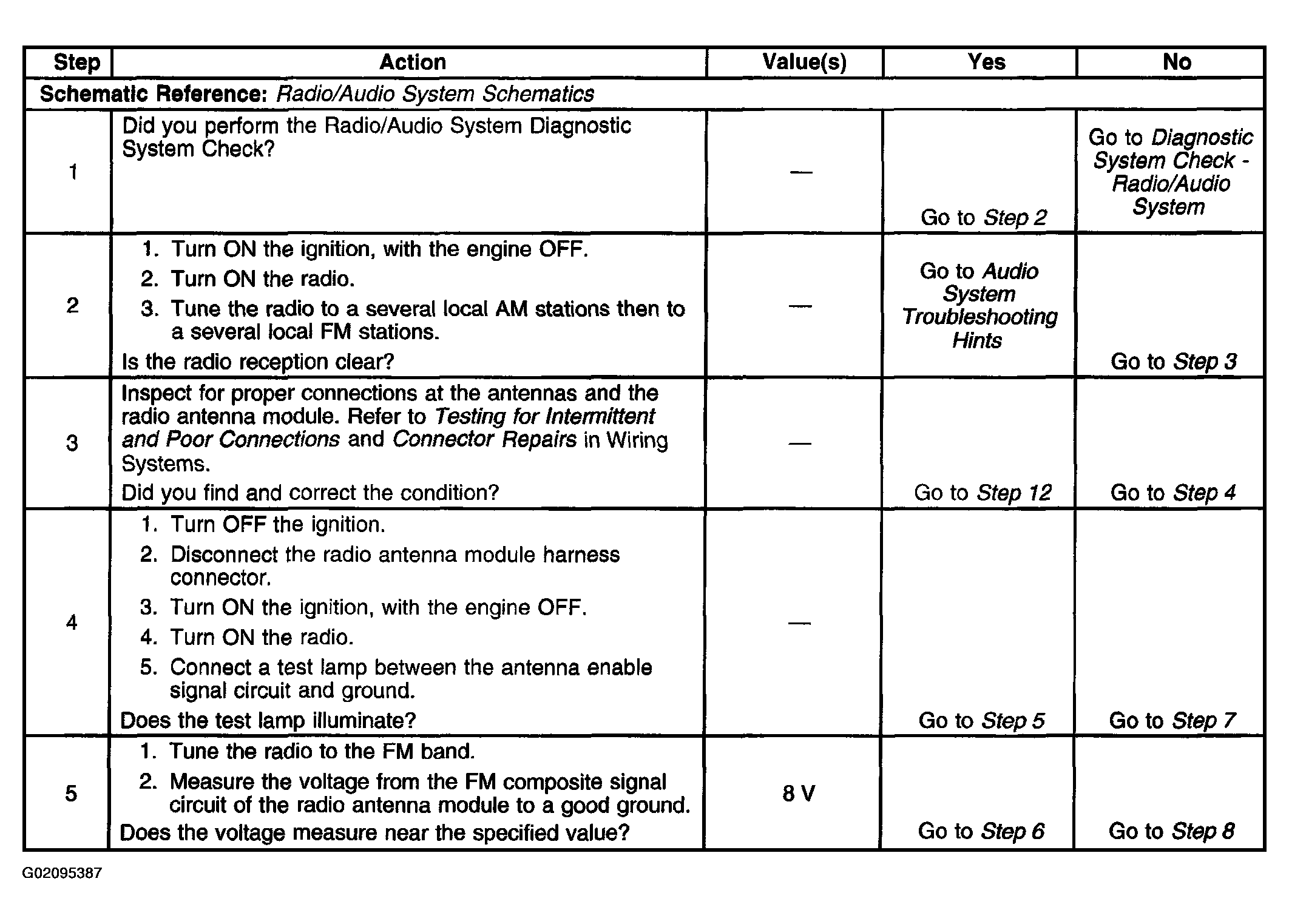

Fig 1: Radio Poor Reception - Diagnostic Table (Steps 1 - 5)

Courtesy of GENERAL MOTORS CORP.

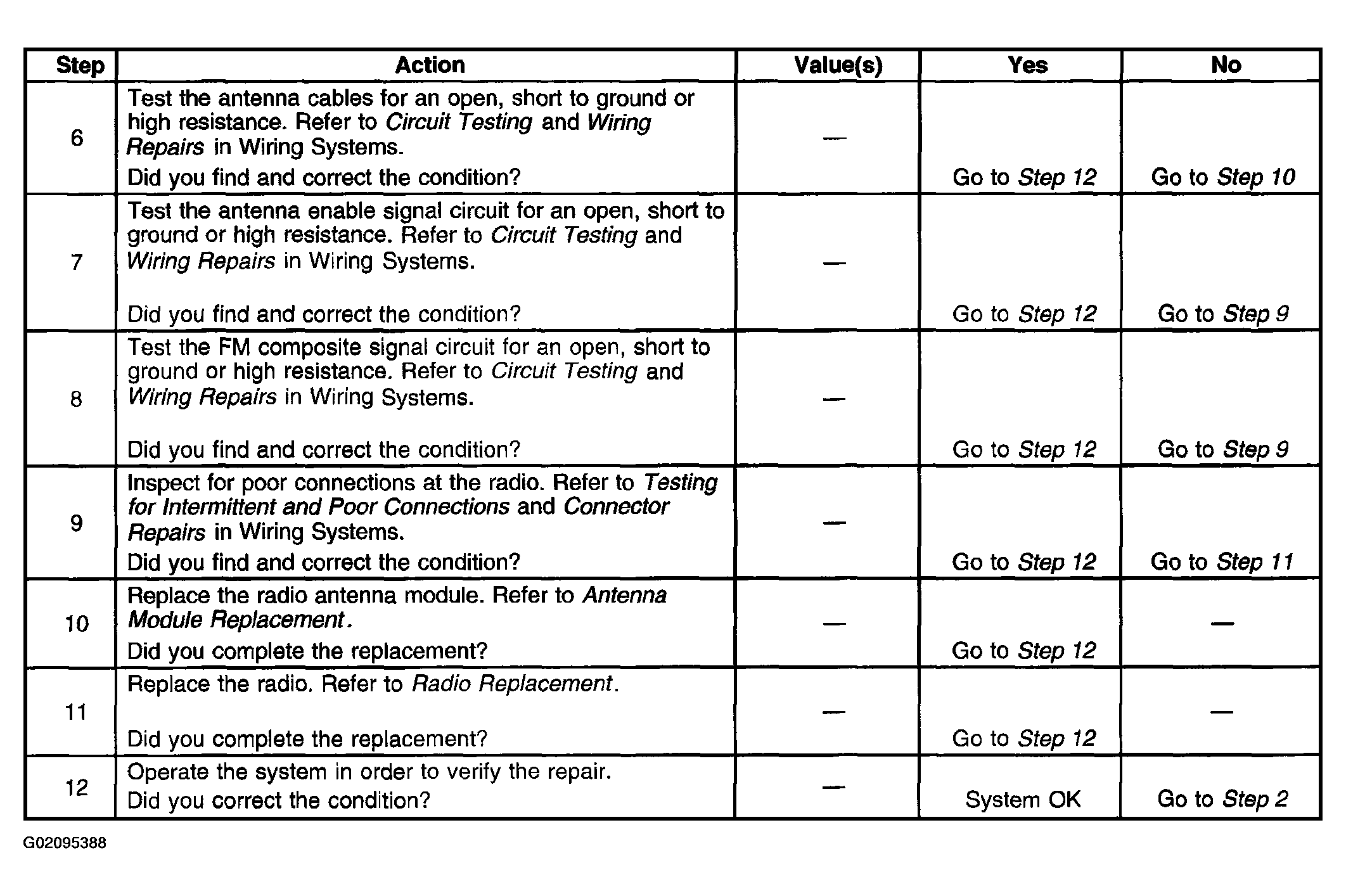

Fig 2: Radio Poor Reception - Diagnostic Table (Steps 6 - 12)

Courtesy of GENERAL MOTORS CORP.
