Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms (1,4). Refer to WIPER ARM REPLACEMENT (LHD)  or WIPER ARM REPLACEMENT (RHD)  .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT (LHD) or AIR INLET GRILLE PANEL REPLACEMENT (RHD) in Body Front End.

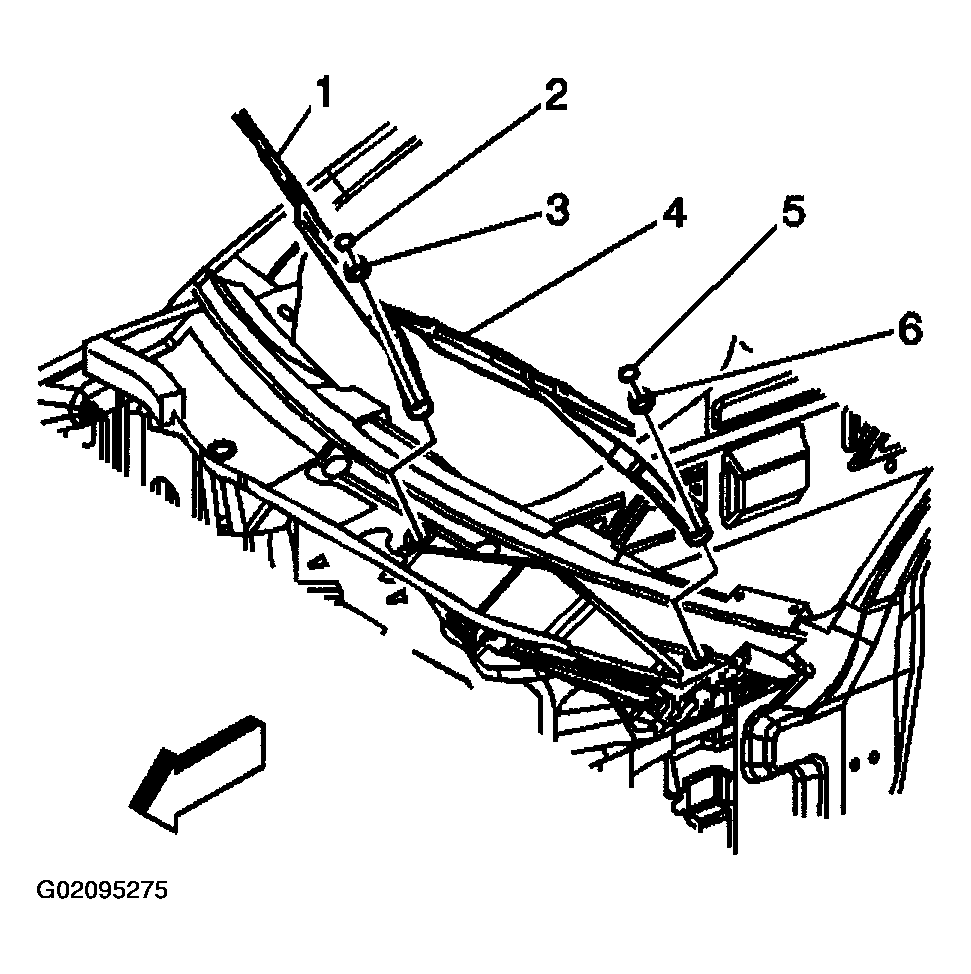

    Fig 1: Removing Wiper Arms
    G02095275Courtesy of GENERAL MOTORS CORP.
  3. Pull or push on the wiper transmission linkage to rotate the wiper motor crank arm (2) from the park position (1) to the area opposite the park position (3).

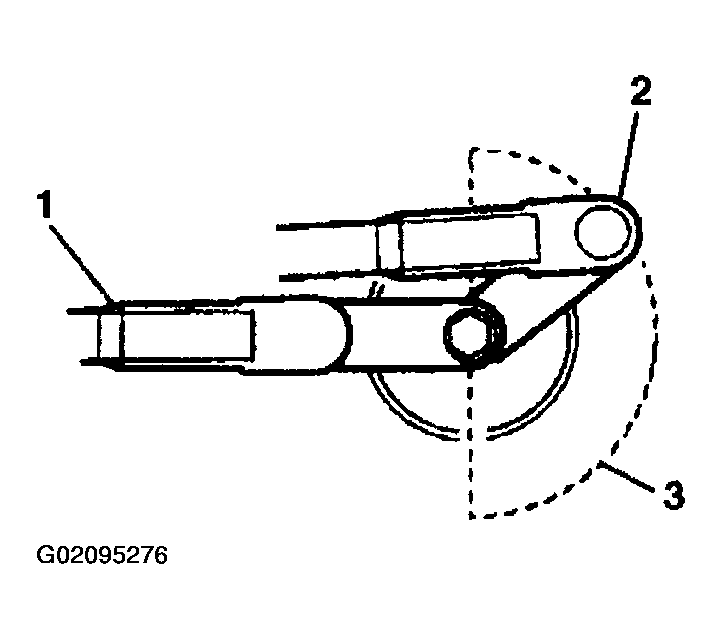

    Fig 2: Rotating Wiper Motor Crank Arm From Park Position To Area Opposite Park Position
    G02095276Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the wiper motor harness connector (4).
  5. Remove the 2 screws (3,5) retaining the wiper system drive module.
  6. Remove the wiper system drive module (1) from the vehicle.

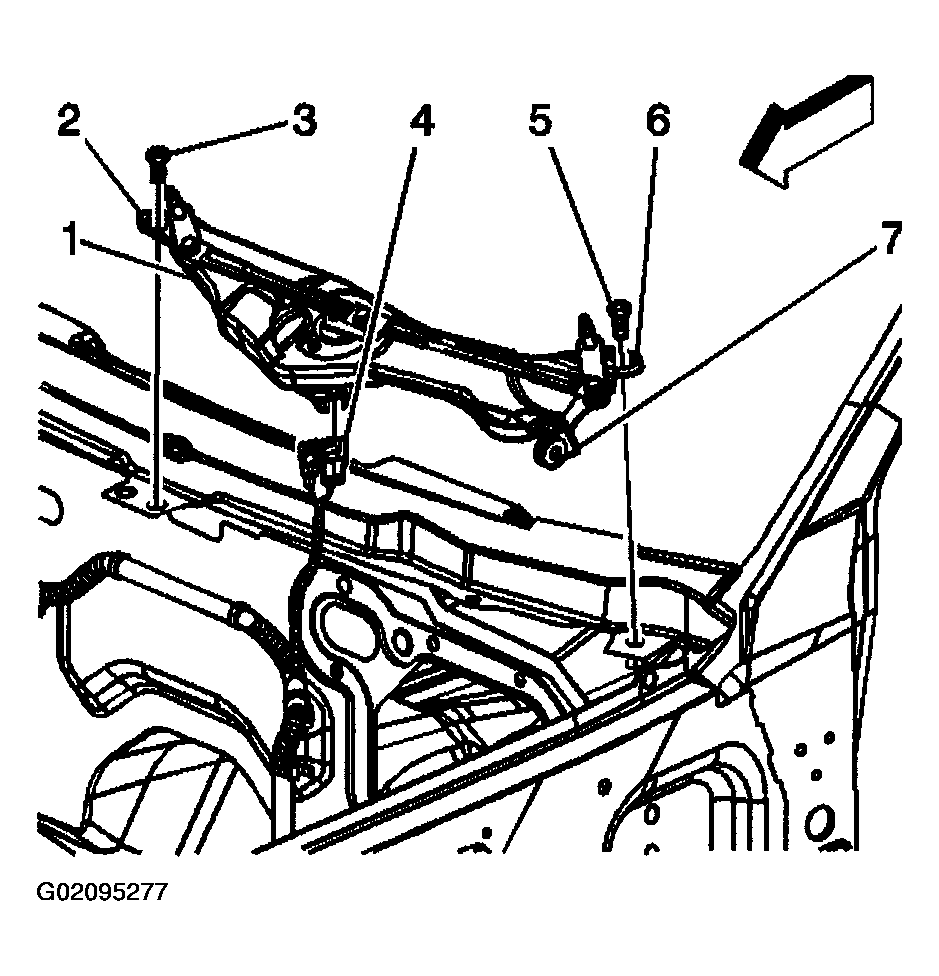

    Fig 3: Removing 2 Screws Retaining Wiper System Drive Module
    G02095277Courtesy of GENERAL MOTORS CORP.
  7. Remove the drive links from the wiper motor crank arm and the wiper transmission drive shafts with the J 39232  .
  8. Remove the transmission links from the module.

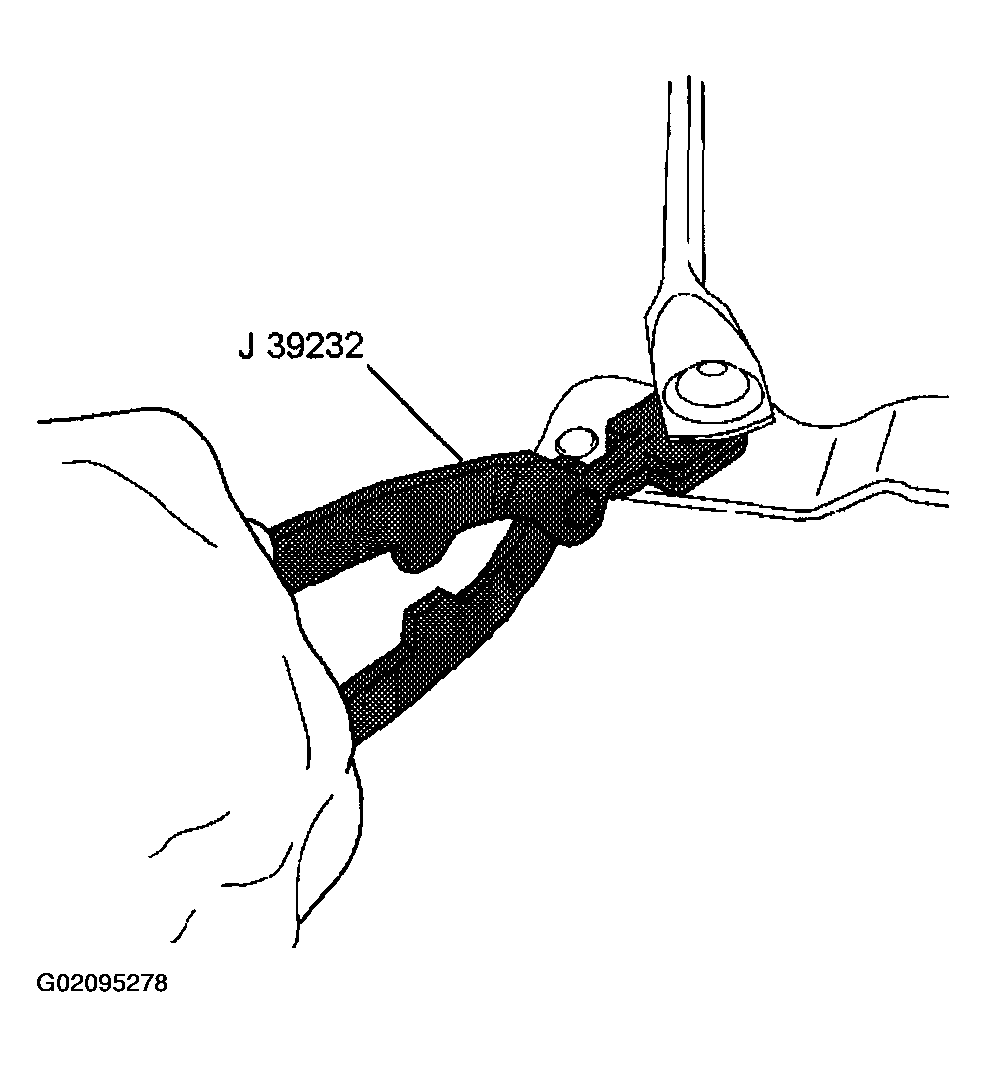

    Fig 4: Removing Drive Links From Wiper Motor Crank Arm
    G02095278Courtesy of GENERAL MOTORS CORP.
