Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper motor module assembly (1). Refer to WIPER MOTOR MODULE REPLACEMENT (LHD) or WIPER MOTOR MODULE REPLACEMENT (RHD) .

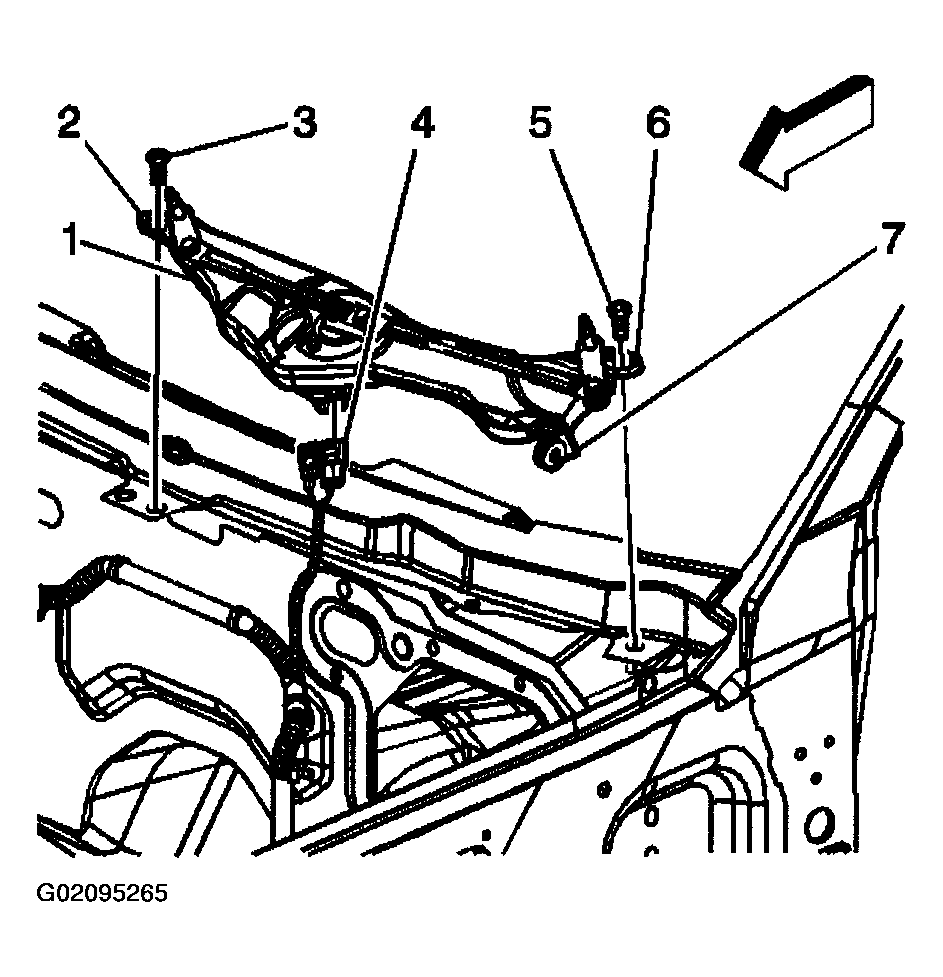

Fig 1: Removing Wiper Motor Module Assembly
Courtesy of GENERAL MOTORS CORP.
Remove the drive links from the wiper motor crank arm to the wiper motor using the J 39232 .

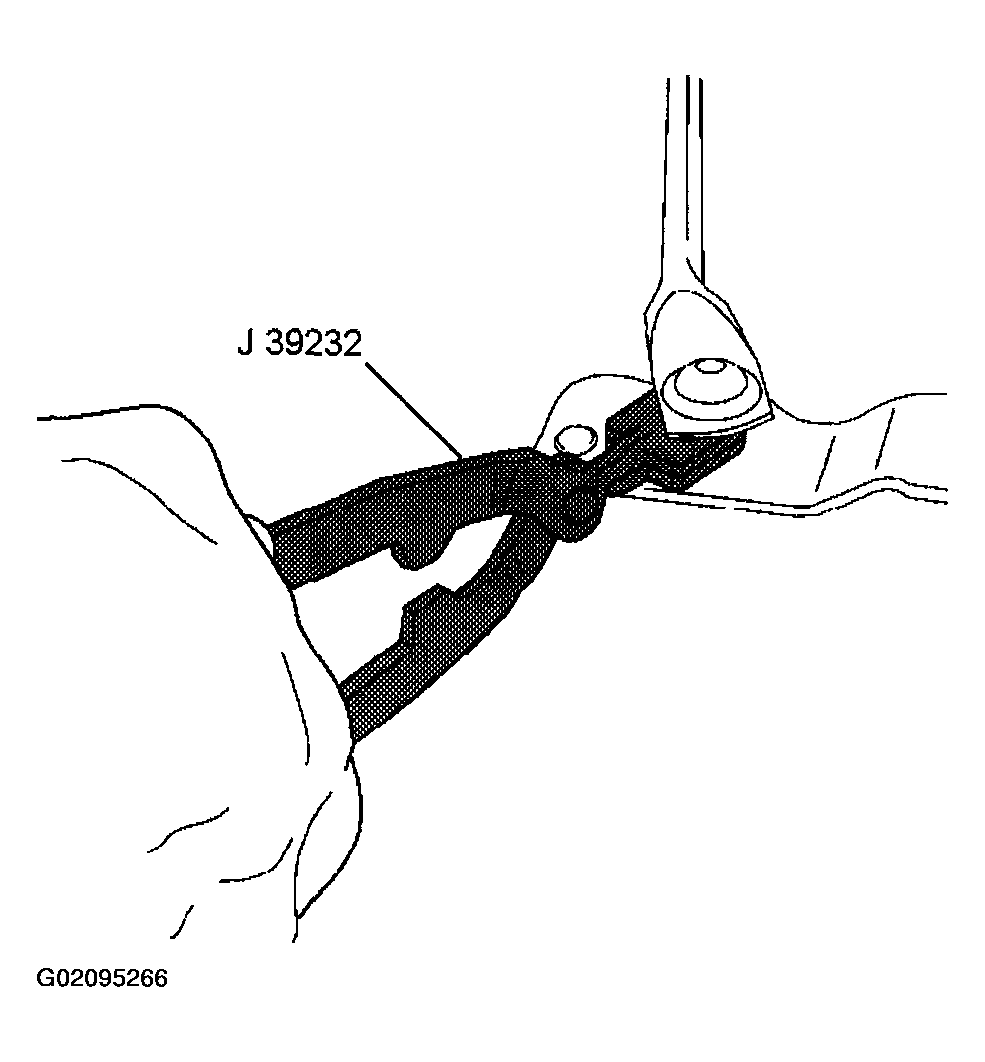

Fig 2: Removing Drive Links From Wiper Motor Crank Arm Using J 39232
Courtesy of GENERAL MOTORS CORP.
Remove the 3 screws (1) retaining the wiper motor to the wiper motor module.
Remove the wiper motor.

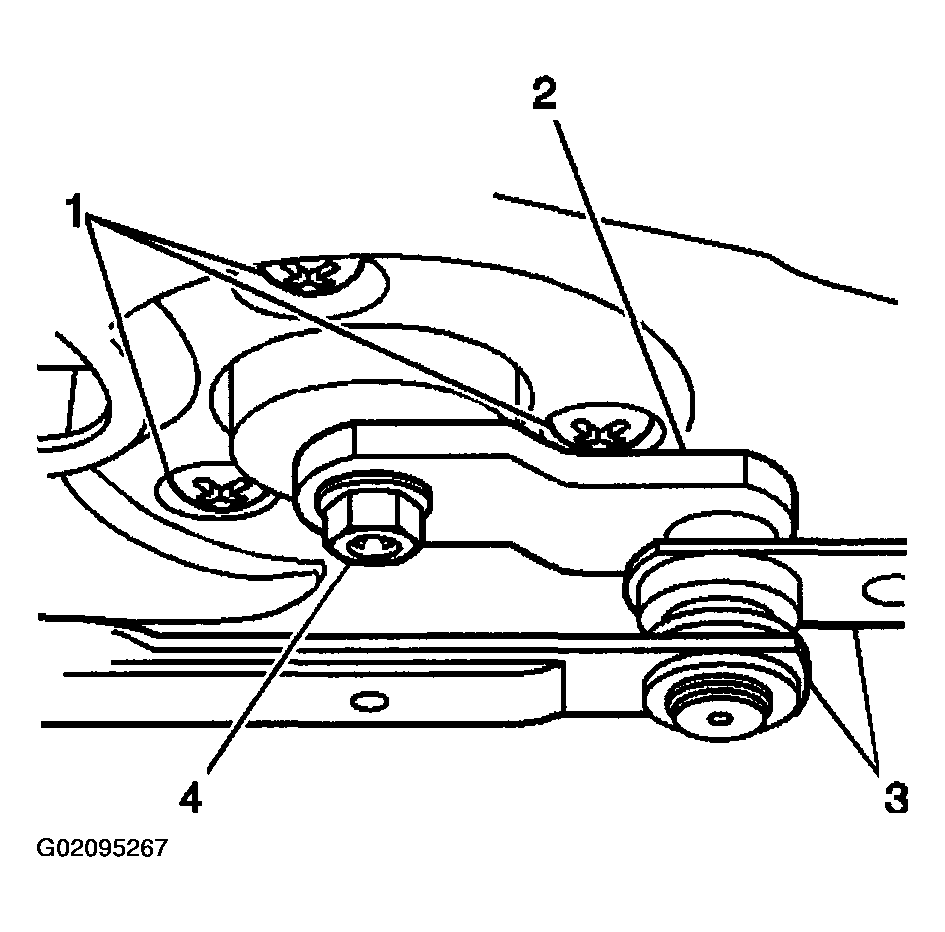

Fig 3: Removing 3 Screws Retaining Wiper Motor To Wiper Motor Module
Courtesy of GENERAL MOTORS CORP.
