Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper motor module. Refer to WIPER MOTOR MODULE REPLACEMENT (LHD)  or WIPER MOTOR MODULE REPLACEMENT (RHD)  .
  2. Remove the fasteners (2) from the wiper motor cover (3).
  3. Carefully remove the wiper motor cover from the wiper motor housing (1).

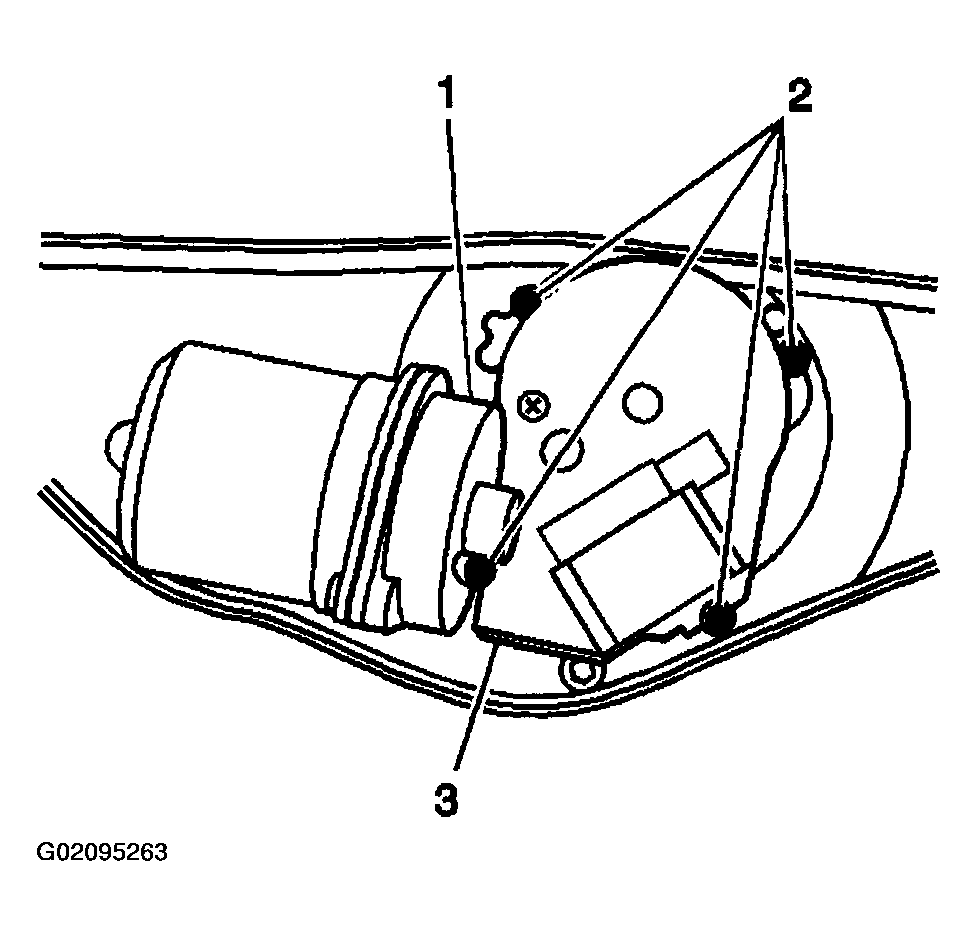

    Fig 1: Removing Fasteners, Cover, And Wiper Motor Housing
    G02095263Courtesy of GENERAL MOTORS CORP.
