Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Insert the hook of the wiper arm through the opening in the wiper blade.

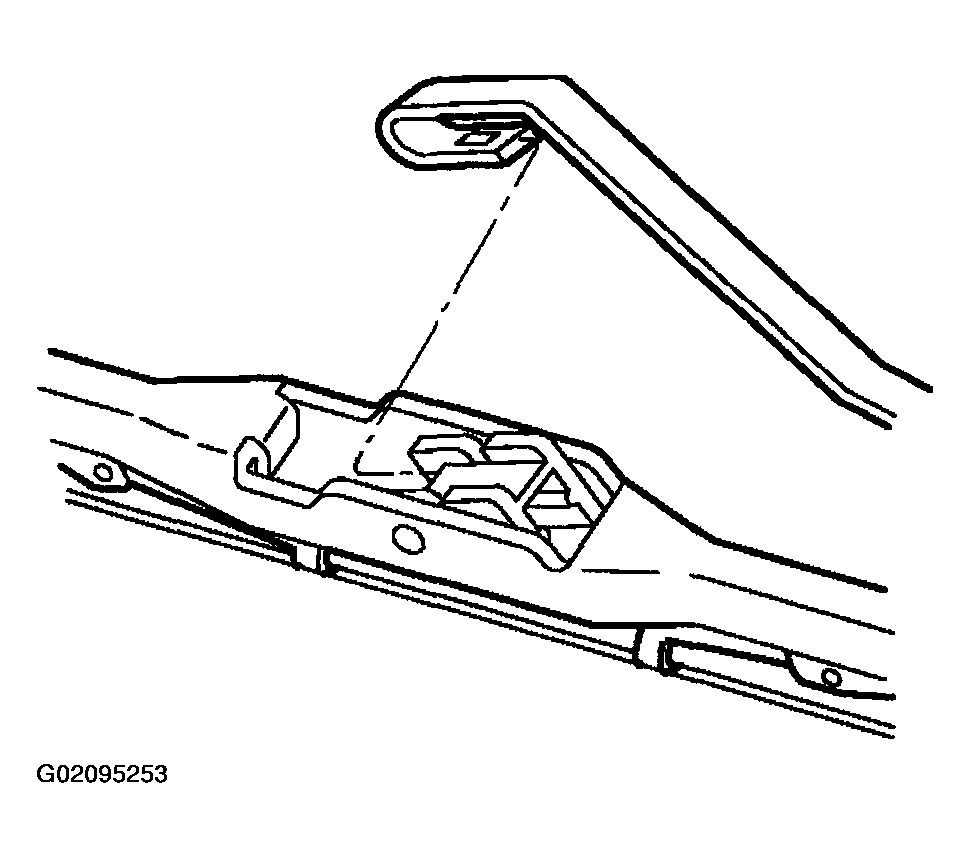

Fig 1: Inserting Hook Of Wiper Arm Through Opening In Wiper Blade
Courtesy of GENERAL MOTORS CORP.
Position the wiper blade pivot in the inside radius of the wiper arm hook.
Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.
Ensure the blade is locked onto the wiper arm.
Return the wiper blades to the park position.
Operate the wipers and check for proper operation.

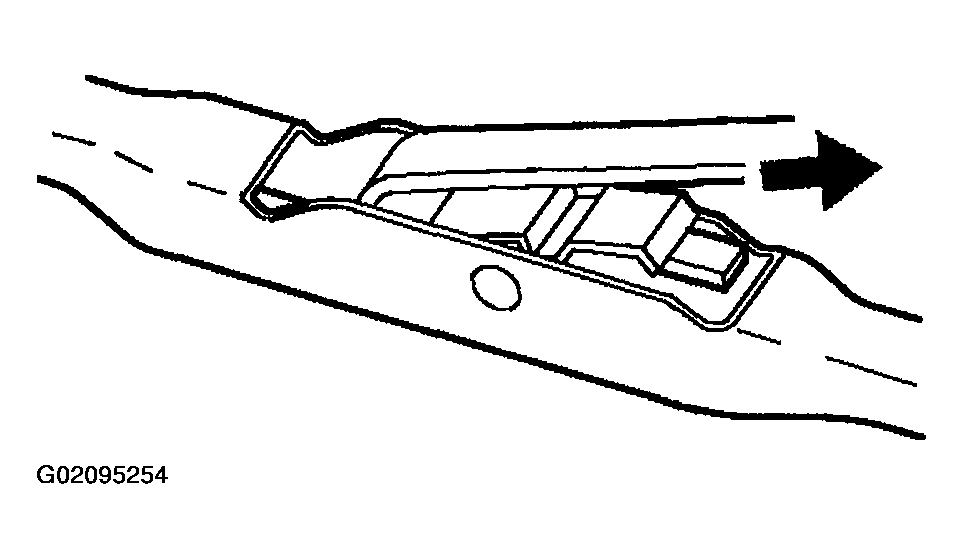

Fig 2: Positioning Wiper Blade Pivot In Inside Radius Of Wiper Arm Hook
Courtesy of GENERAL MOTORS CORP.
