Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower air deflector. Refer to BODY FRONT END in Body Front End.

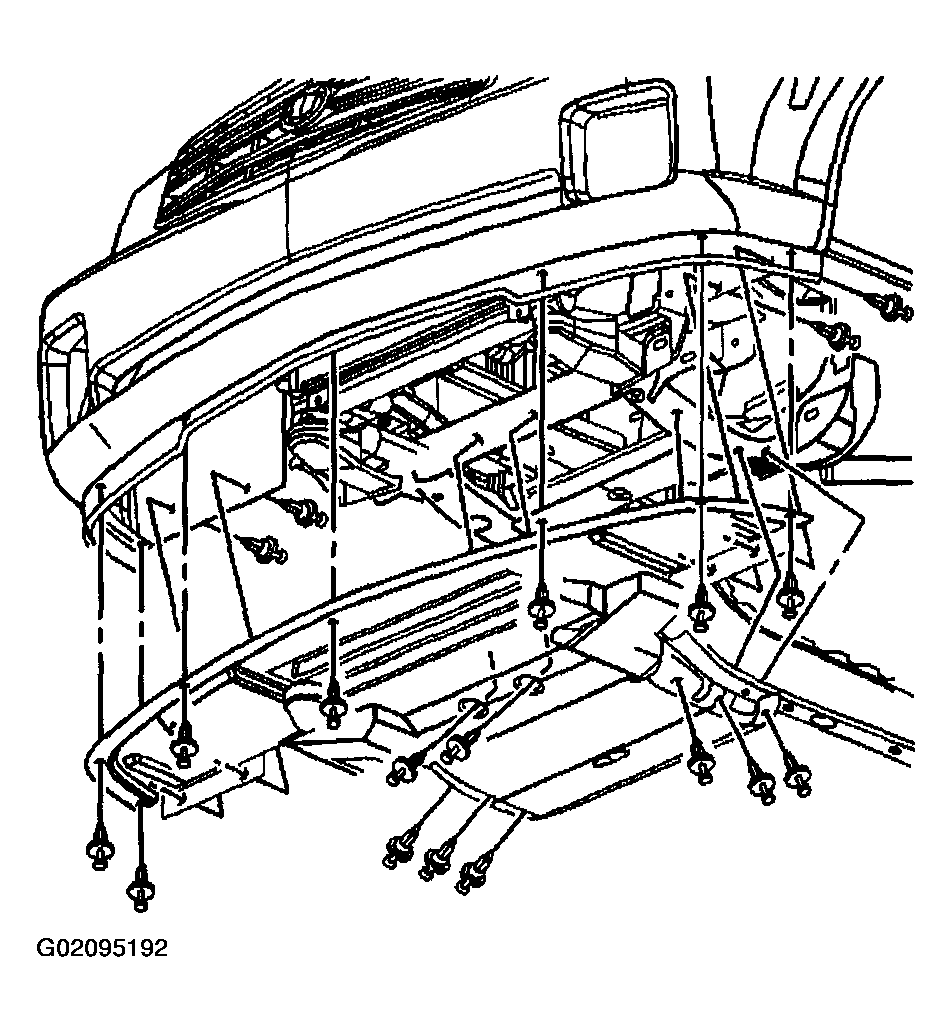

    Fig 1: Removing Lower Air Deflector
    G02095192Courtesy of GENERAL MOTORS CORP.
  2. Drain the washer solvent into a suitable container.
  3. Disconnect the washer hose (8) from the washer pump (7).
  4. Disconnect the electrical connector (4) from the washer pump.
  5. Remove the washer pump (7) from the washer solvent container.

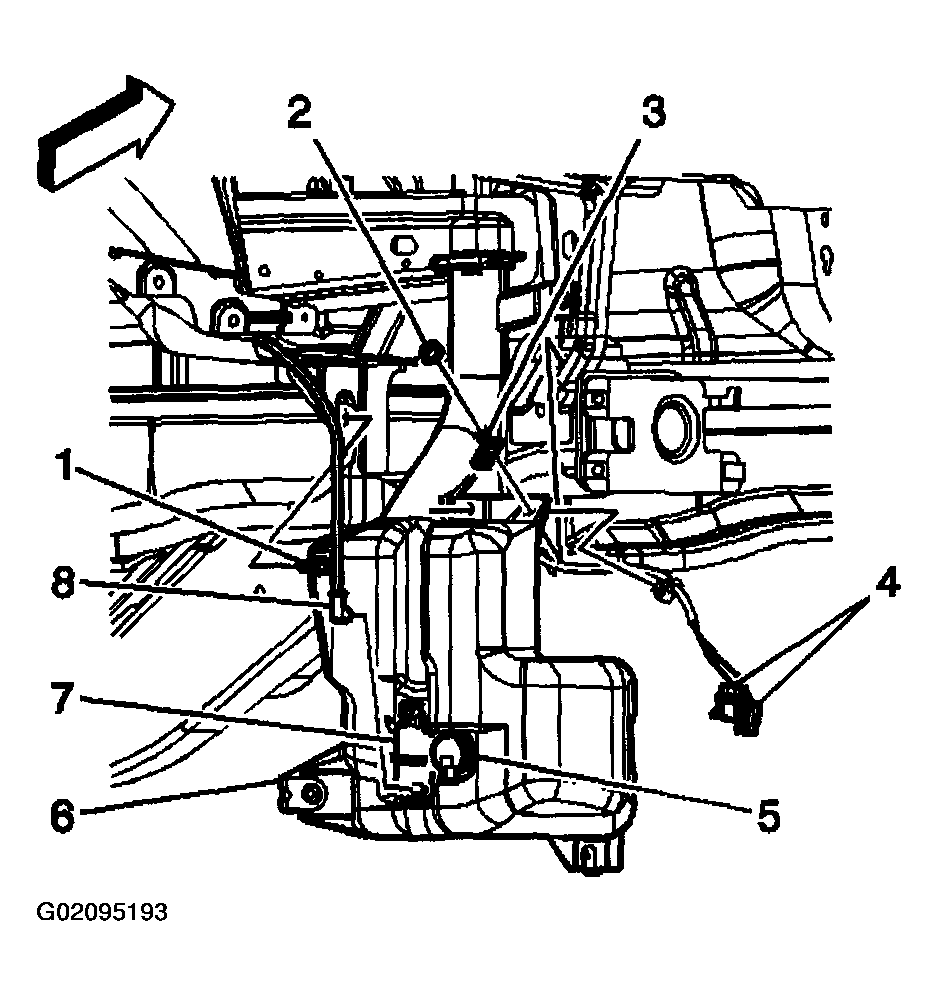

    Fig 2: Disconnecting Washer Hose And Electrical Connector From Washer Pump
    G02095193Courtesy of GENERAL MOTORS CORP.
