Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump grommet (2) into the washer solvent container (1).
  2. Lubricate the washer pump intake nozzle with clean water to aid in the installation of the pump into the washer container.

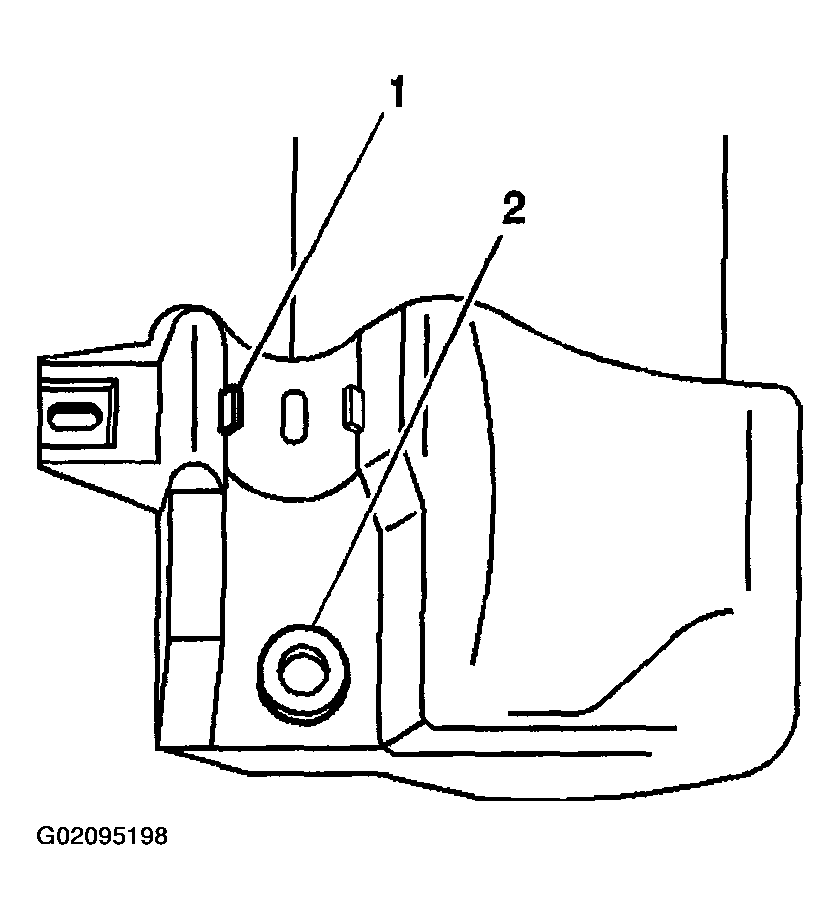

    Fig 1: Installing Washer Pump Grommet Into Washer Solvent Container
    G02095198Courtesy of GENERAL MOTORS CORP.
  3. Install the washer pump nozzle (4) in the washer solvent container by snapping into place.
  4. Ensure the washer pump is secure to the washer solvent container.

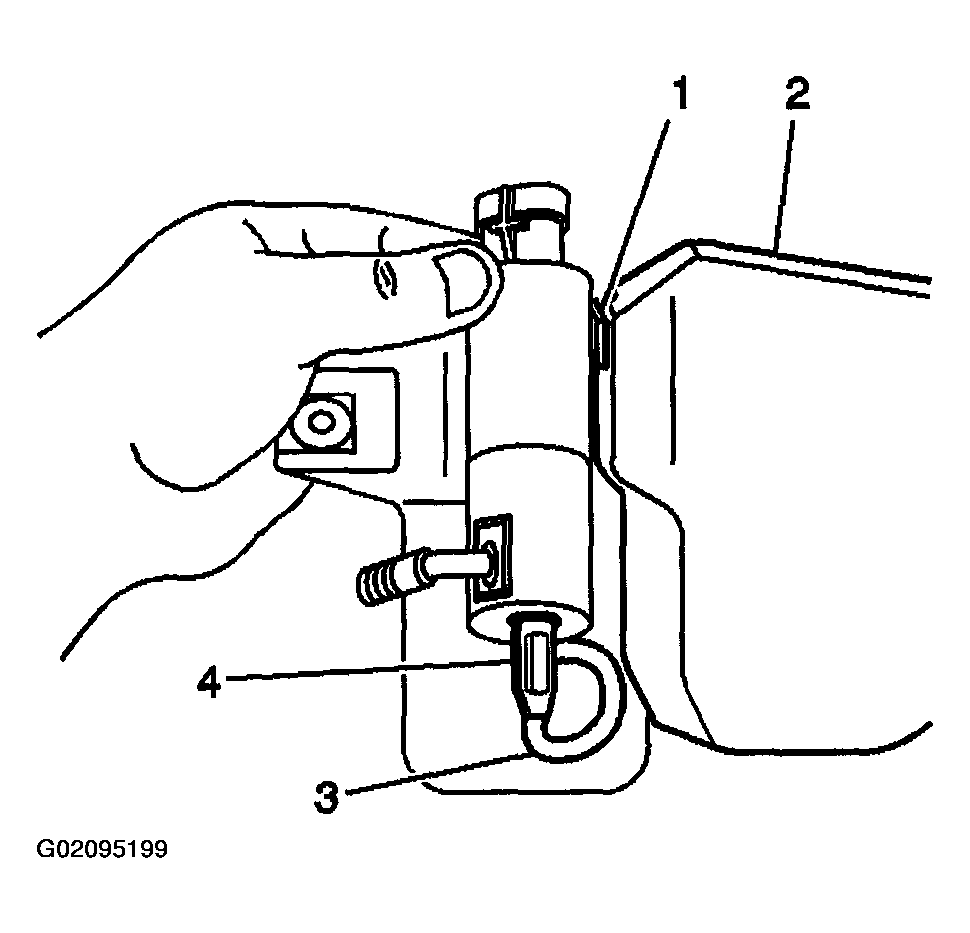

    Fig 2: Installing Washer Pump Nozzle In Washer Solvent Container
    G02095199Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector (2) to the washer pump.
  6. Connect the washer hose (1) to the washer pump.
  7. Install the lower air deflector. Refer to BODY FRONT END in Body Front End.
  8. Open the hood.
  9. Fill the washer solvent container.
  10. Close the hood.

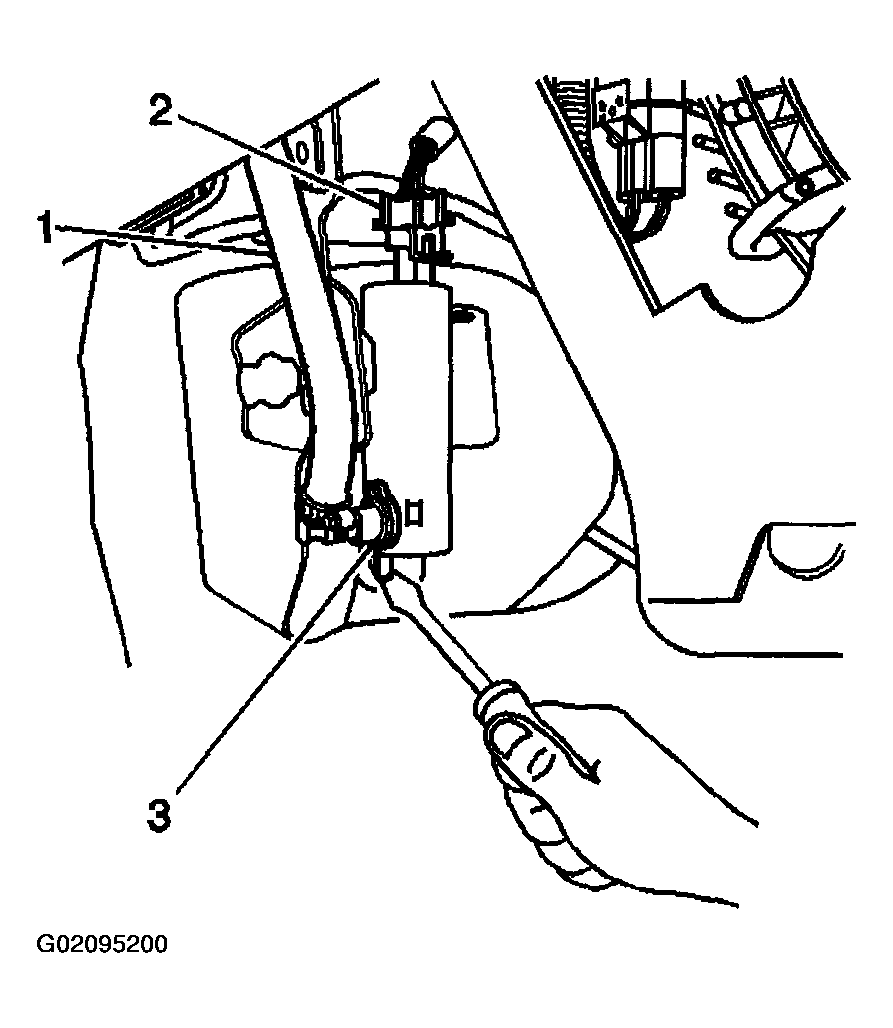

    Fig 3: Connecting Electrical Connector And Washer Hose To Washer Pump
    G02095200Courtesy of GENERAL MOTORS CORP.
