Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the electrical connector (1) through the opening in the hood.
Install the washer nozzles (3) to the hood by indexing the tension clips (2) on the nozzle to the opening in the hood.
Push downward in order to secure the washer nozzle tension clips (2) to the hood.

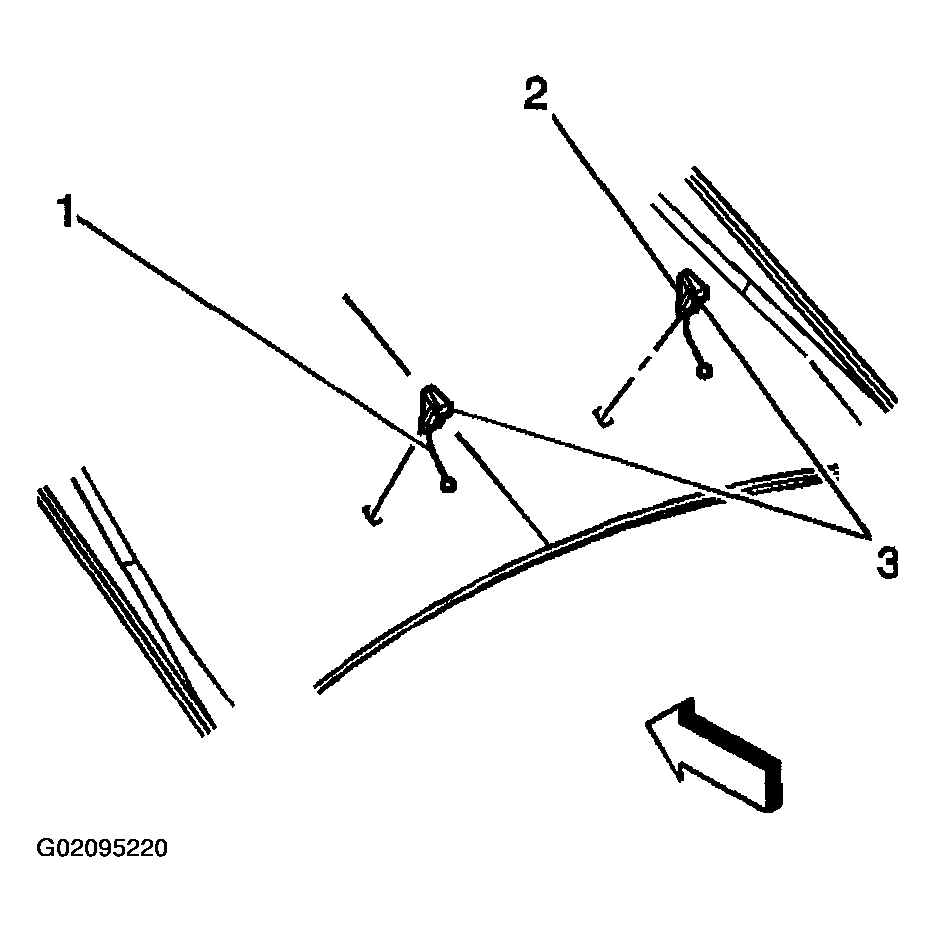

Fig 1: Installing Washer Nozzles To Hood
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (2,5).
Install new electrical tape to the electrical connectors.
Connect the washer hose connections (3,6) to the washer nozzles.

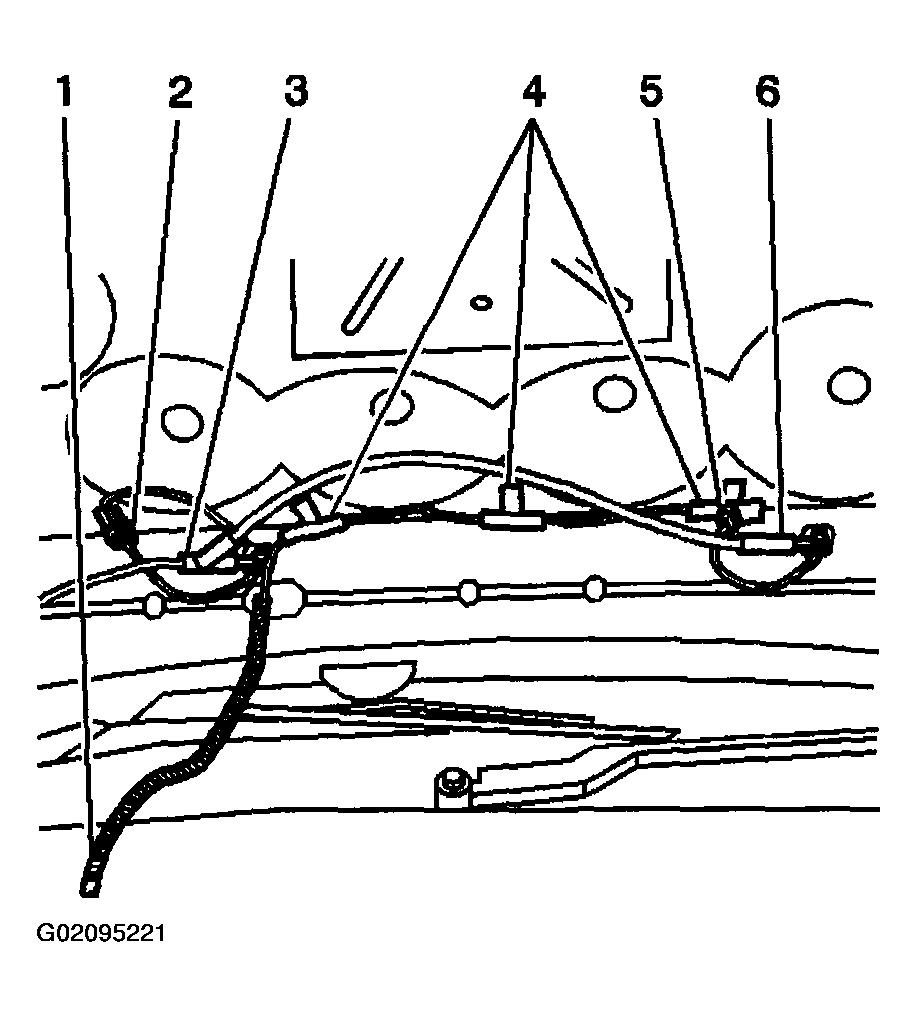

Fig 2: Connecting Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the hood insulator. Refer to HOOD INSULATOR REPLACEMENT in Body Front End.
Close the hood.

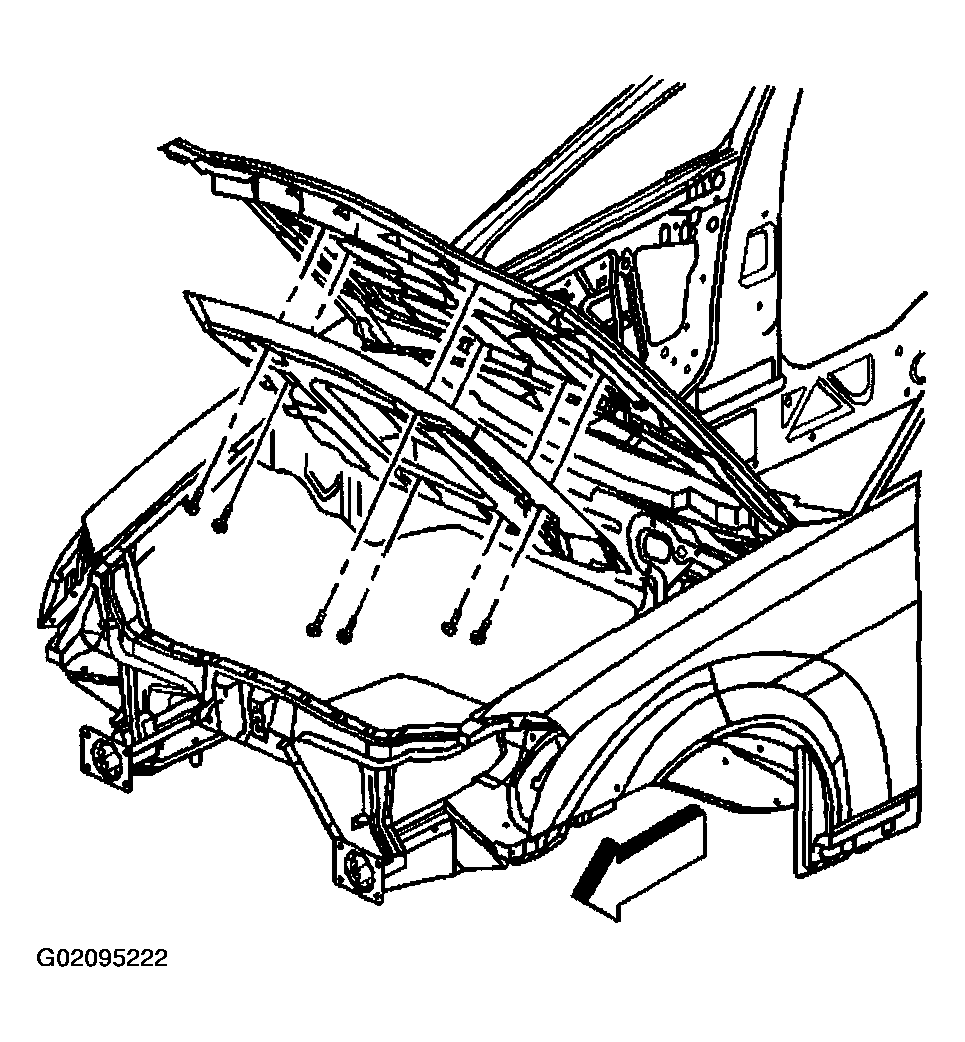

Fig 3: Installing Hood Insulator
Courtesy of GENERAL MOTORS CORP.
