Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following components to the washer solvent container:
    • The windshield washer pump
    • The headlamp washer pump (4)
    • The washer level sensor switch
    • The washer solvent container cap
    • The horizontal bracket

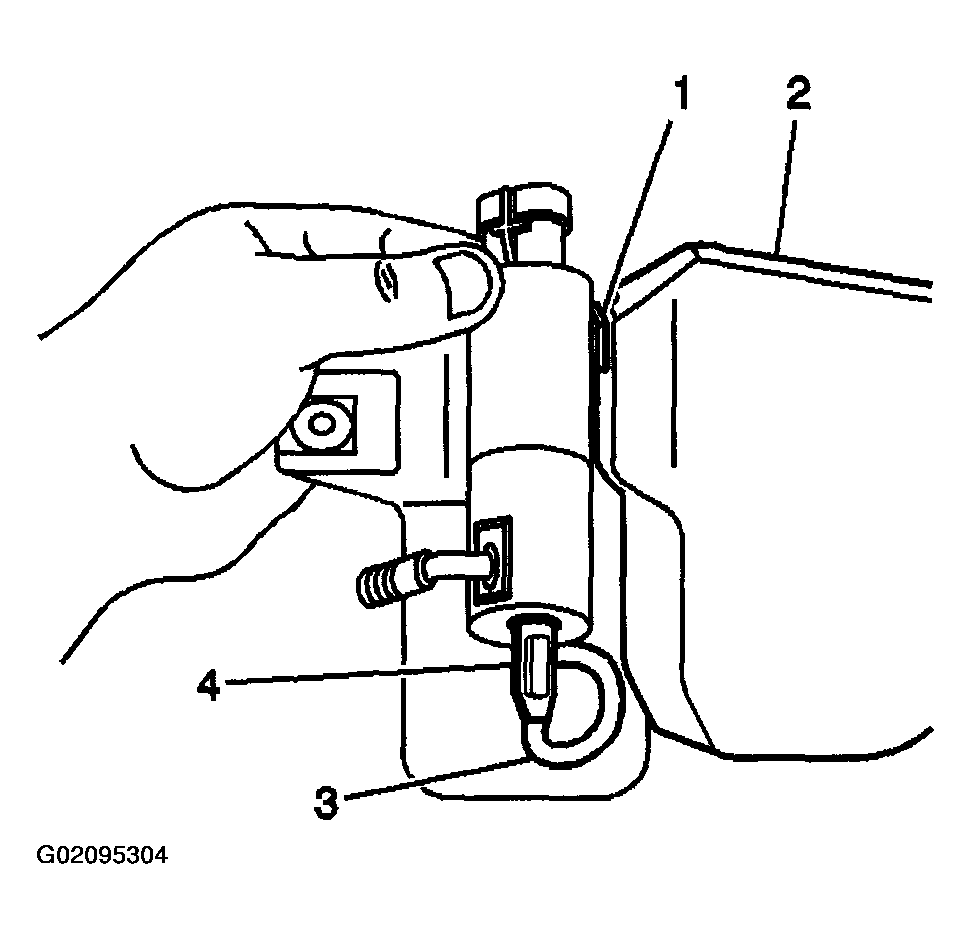

    Fig 1: Installing Components To Washer Solvent Container
    G02095304Courtesy of GENERAL MOTORS CORP.
  2. Position the washer solvent container filler neck up through the radiator support.
  3. Engage the electrical harness retainer clip (5) to the washer solvent container (7).
  4. Engage the clinch nut stud (3) to the key hole slot (1) in the engine cradle.
  5. Connect the headlamp washer pump hose to the washer pump.

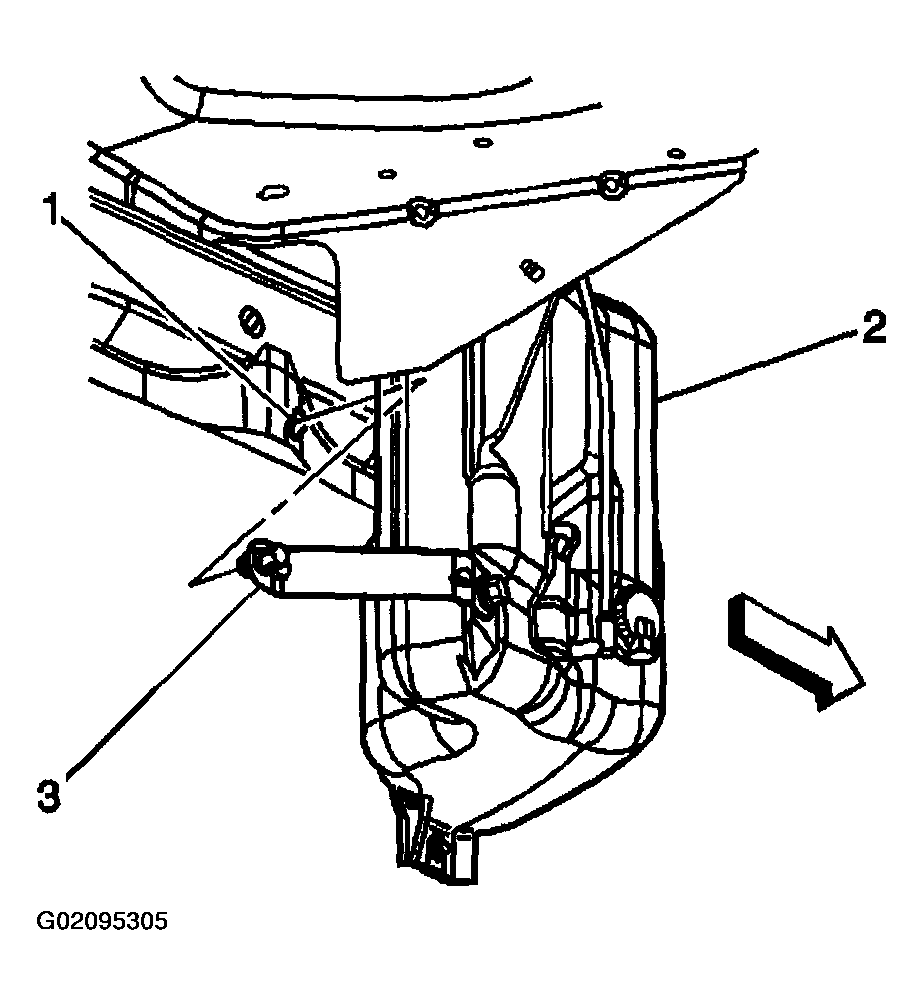

    Fig 2: Engaging Clinch Nut Stud And Horizontal Bracket To Key Hole Slot
    G02095305Courtesy of GENERAL MOTORS CORP.
  6. Ensure the washer solvent container is positioned over the stud (2) on the tie bar outer reinforcement panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the fasteners (1,4,10) to the washer solvent container.

    Tighten

    Tighten the fasteners (1,4,10) to 6 N.m (53 lb in).

  8. Secure the clinch nut.

    Tighten

    Tighten the clinch nut to 6 N.m (53 lb in).

  9. Secure the horizontal bracket nut.

    Tighten

    Tighten the horizontal bracket nut to 6 N.m (53 lb in).

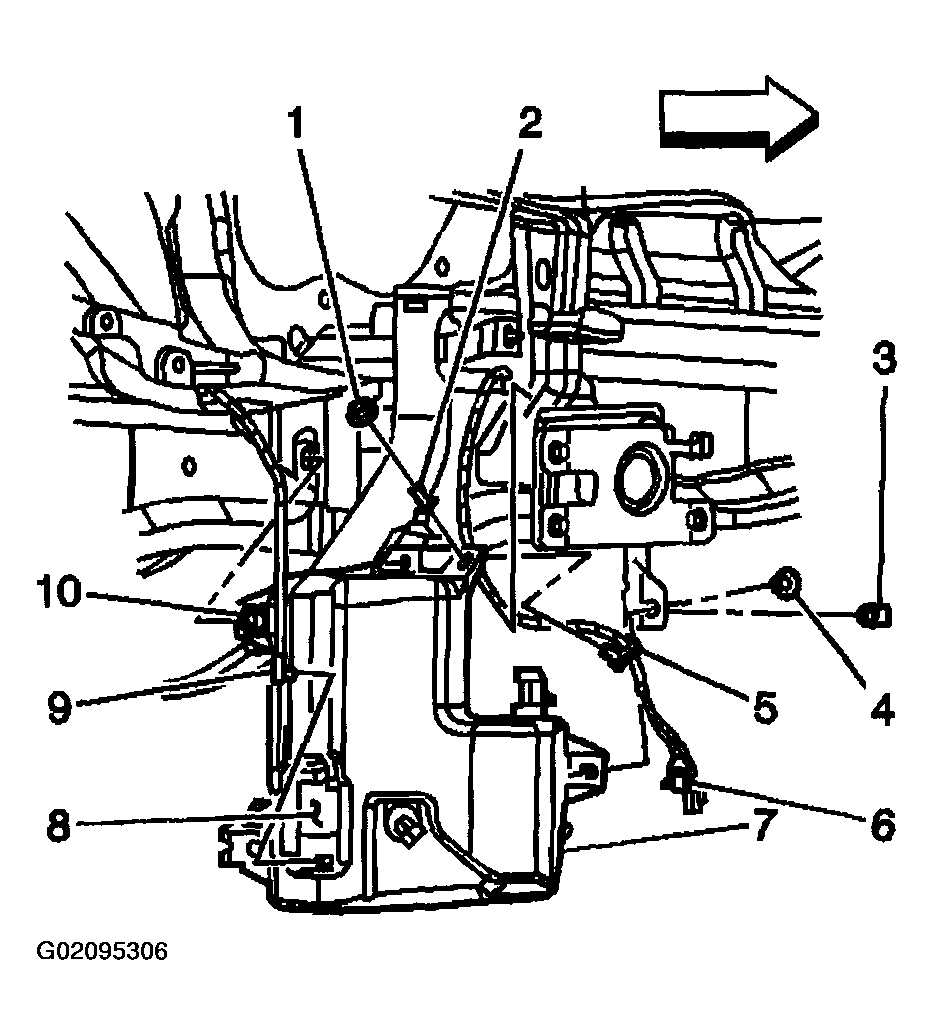

    Fig 3: Ensuring Washer Solvent Container Positioned Over Stud
    G02095306Courtesy of GENERAL MOTORS CORP.
  10. Connect the washer hose (9) to the washer pump (8).
  11. Connect the electrical connector to the washer pump.
  12. Connect the electrical connector to the washer solvent level sensor.
  13. Install the headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT in Lighting Systems.
  14. Install the front bumper fascia. Refer to BUMPER SYSTEM in Bumpers.
  15. Install the front air deflector. Refer to BODY FRONT END in Body Front End.

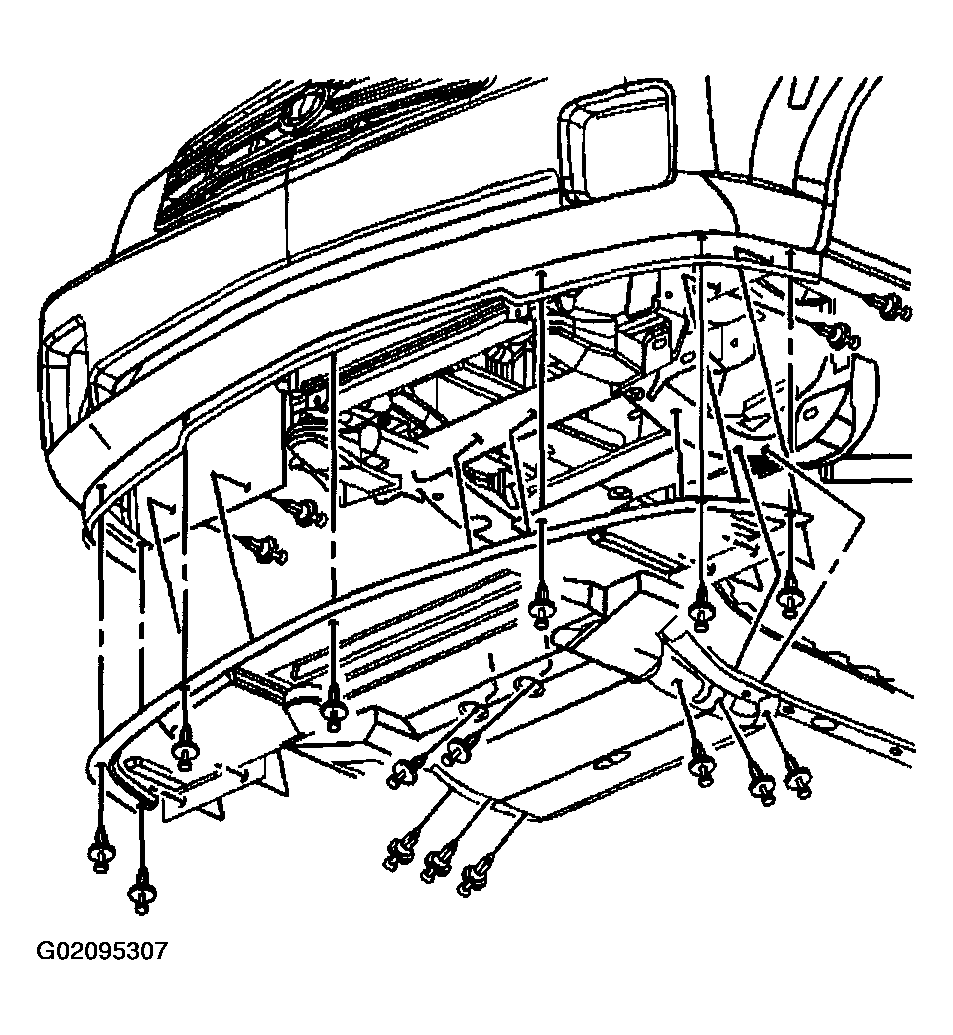

    Fig 4: Installing Front Air Deflector
    G02095307Courtesy of GENERAL MOTORS CORP.
  16. Install the bolt (3) in order to secure the washer solvent container filler neck (2) to the upper tie bar(1).

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

  17. Fill the washer solvent container.
  18. Close the hood.

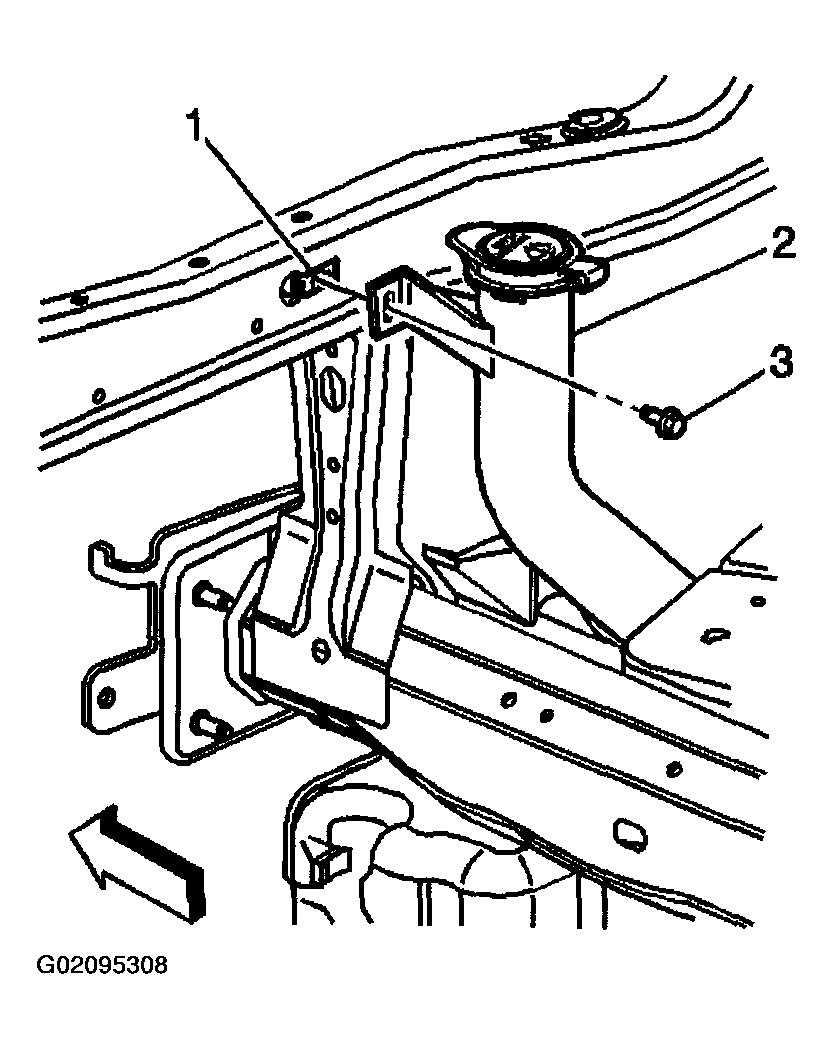

    Fig 5: Installing Bolt Securing Washer Solvent Container Filler Neck To Upper Tie Bar
    G02095308Courtesy of GENERAL MOTORS CORP.
