Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper from the vehicle. Refer to Bumper Replacement - Front .
  2. Using pliers, gently squeeze the retainer tabs on the molding.

    Push the retainer tabs through the slots in the bumper.

  3. Remove the front bumper step pad (1) from the bumper.

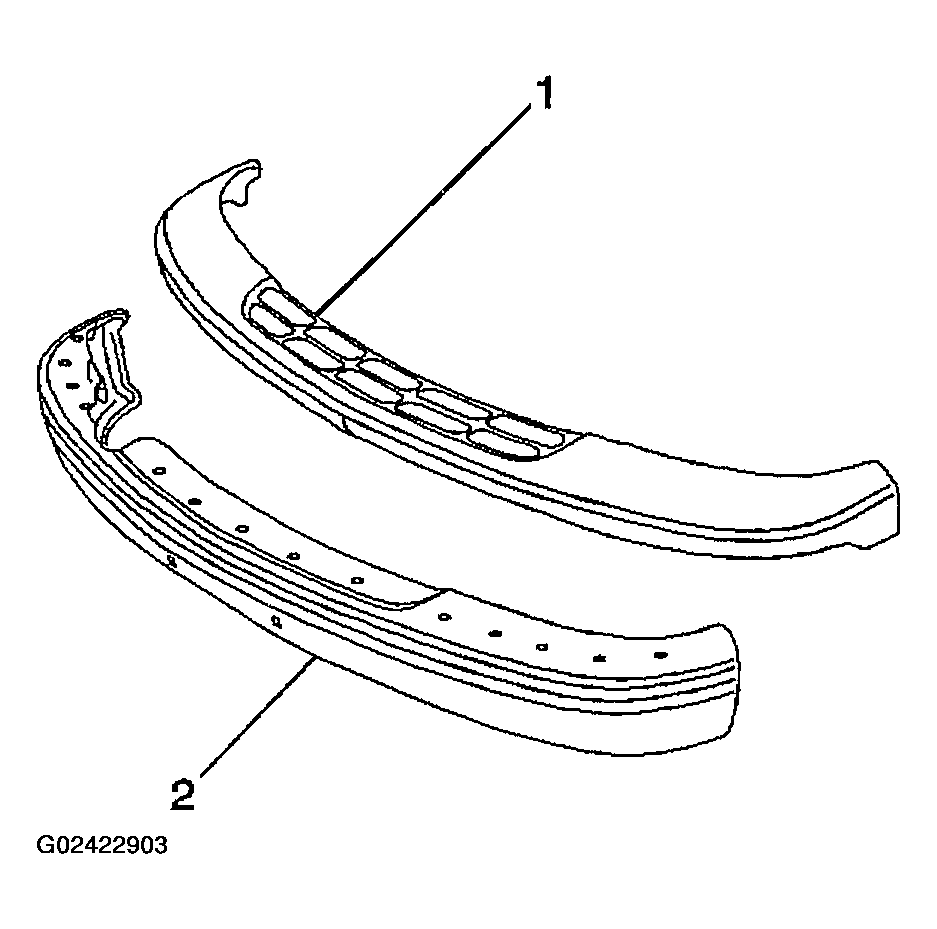

    Fig 1: Removing Front Bumper Step Pad
    G02422903Courtesy of GENERAL MOTORS CORP.
