Test Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. The passenger power window switch on the master switch, shares common power and ground circuits with the left front window. If the passenger power window operates properly from the master switch the power and ground circuits can be presumed good.

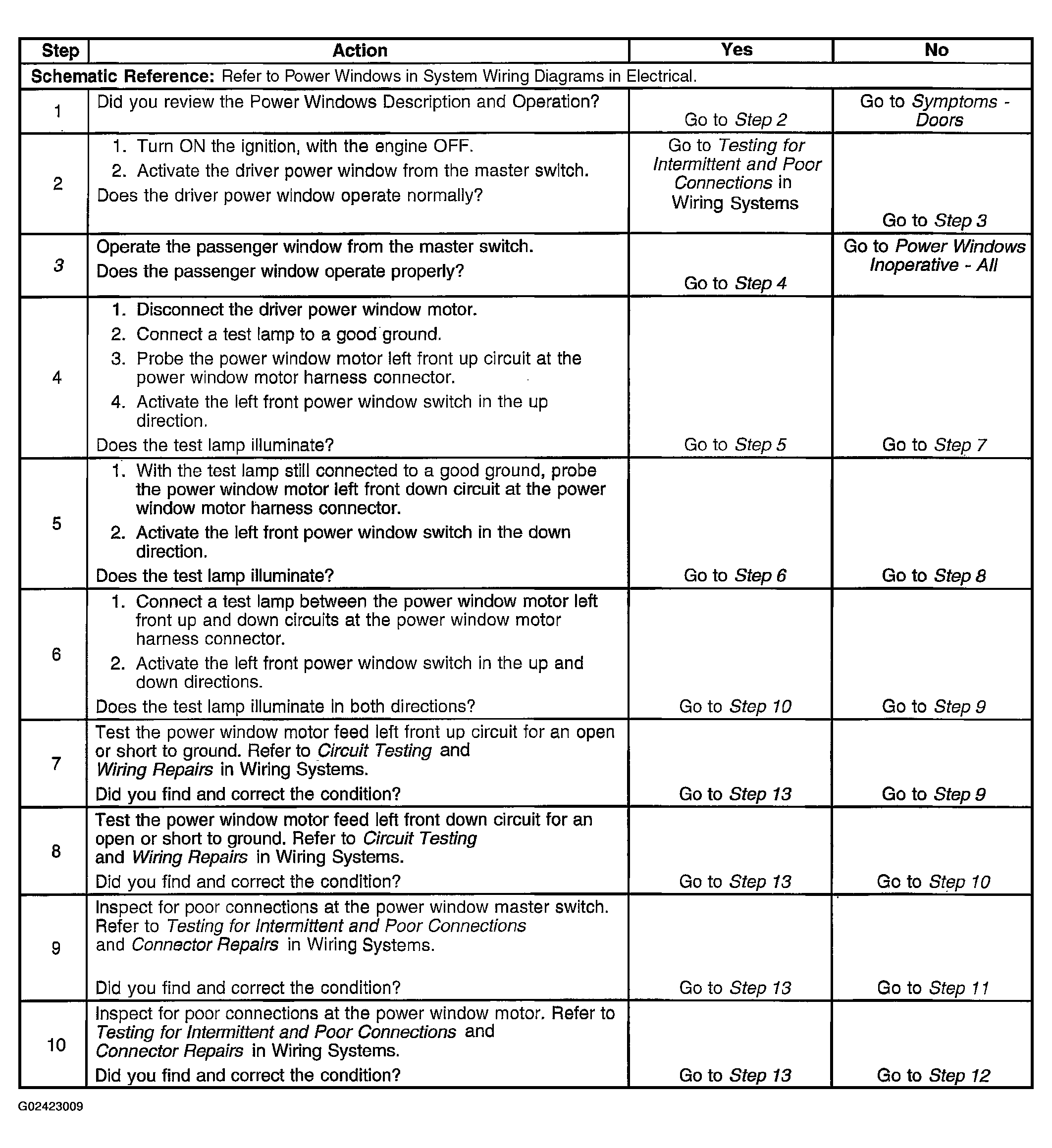

Fig 1: Power Window Inoperative - Driver Door Diagnostic Table (1 Of 2)
G02423009Courtesy of GENERAL MOTORS CORP.

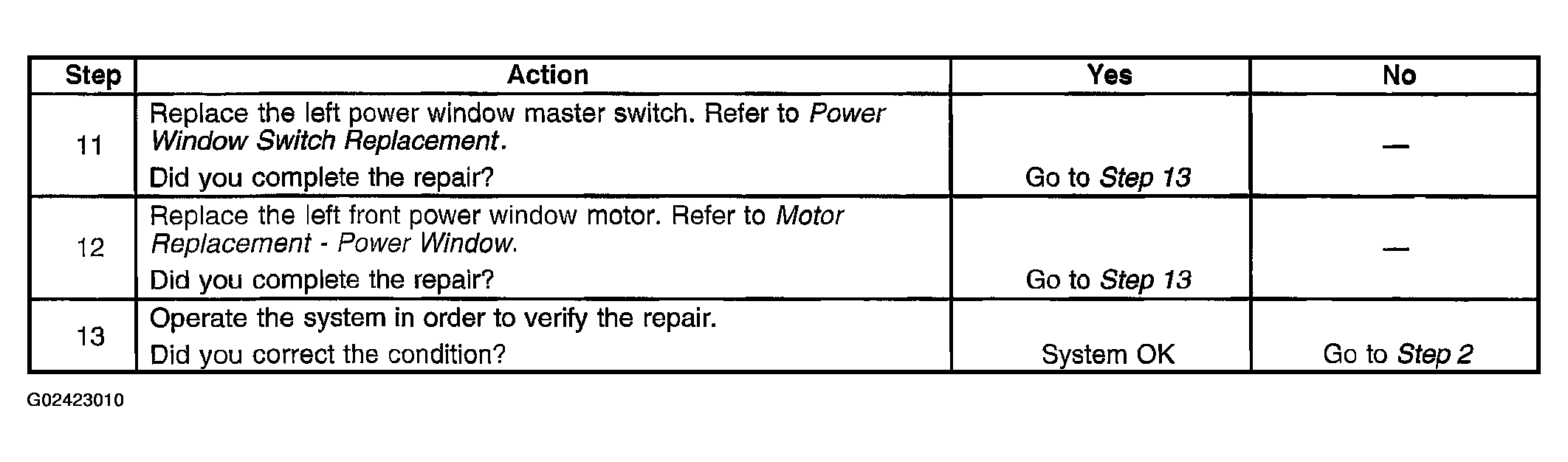

Fig 2: Power Window Inoperative - Driver Door Diagnostic Table (2 Of 2)
G02423010Courtesy of GENERAL MOTORS CORP.
