Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

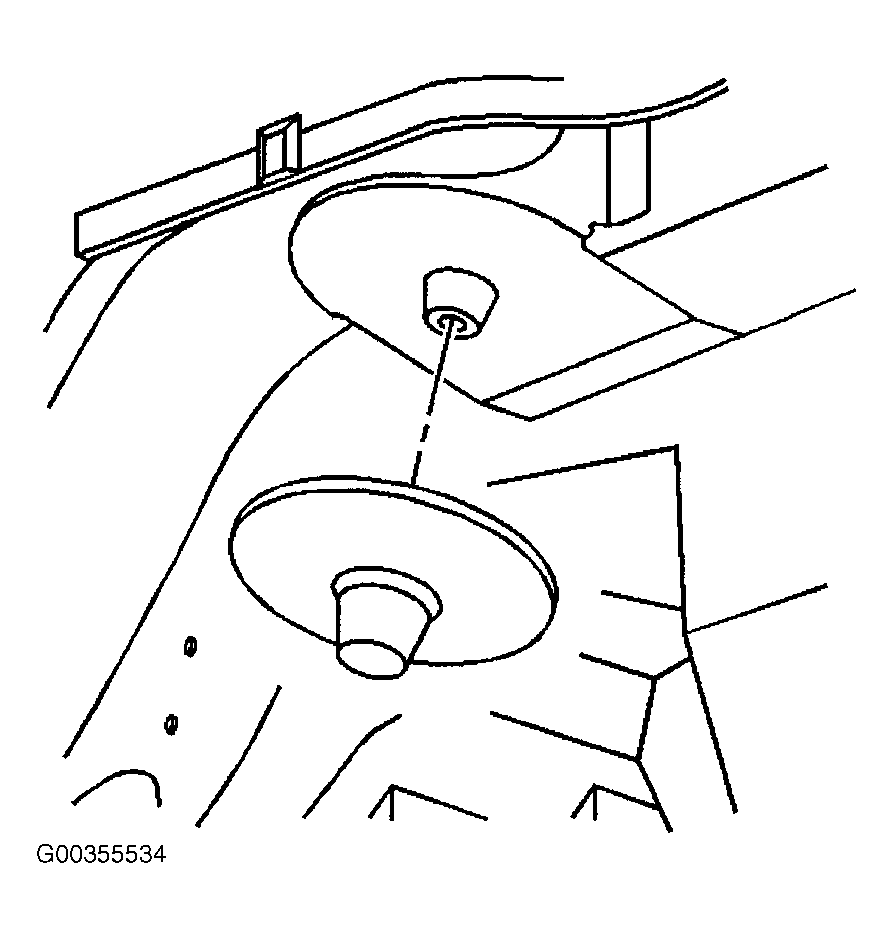

- Install the upper coil spring insulator. See Figure.

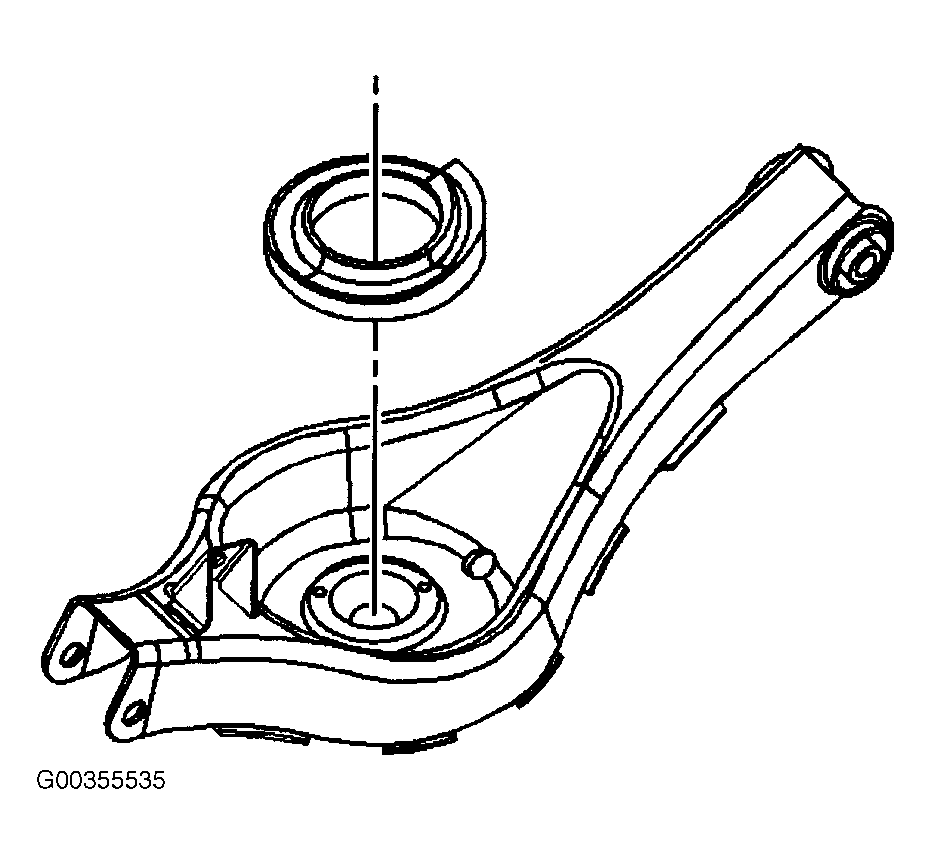

- Install the lower coil spring insulator. See Figure.
- Install the rear coil spring. Refer to COIL SPRING REPLACEMENT .
- Lower the vehicle. Adjust the rear camber. For 2003, refer to REAR CAMBER ADJUSTMENT in SPECIFICATIONS . For 2004, refer to REAR CAMBER ADJUSTMENT in SPECIFICATIONS .
