Removal & Installation: Starter: Installation

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

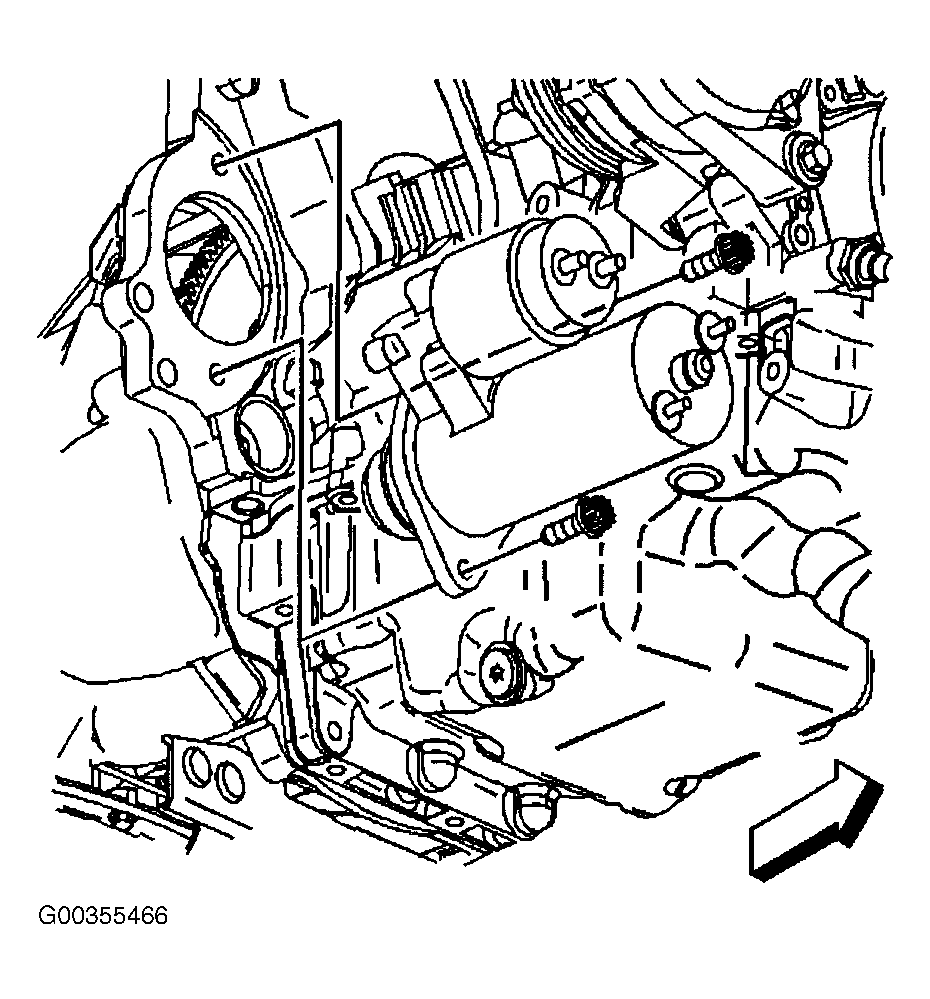

  1. Position the starter motor to the engine. See Figure .
  2. Install the starter motor mounting bolts. Tighten the starter motor mounting bolts to specification. See TORQUE SPECIFICATIONS  .

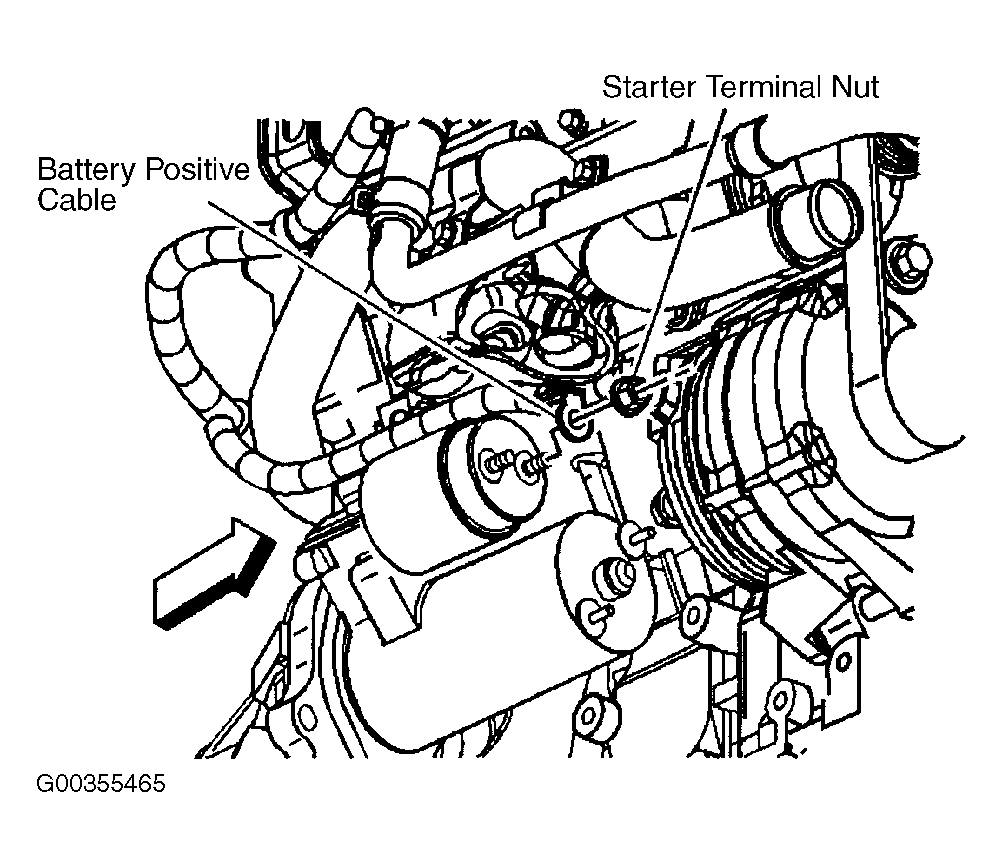

  3. Connect the battery positive cable to the starter and install the starter terminal nut. See Figure . Tighten the battery positive cable to starter terminal nut to specification. See TORQUE SPECIFICATIONS  .

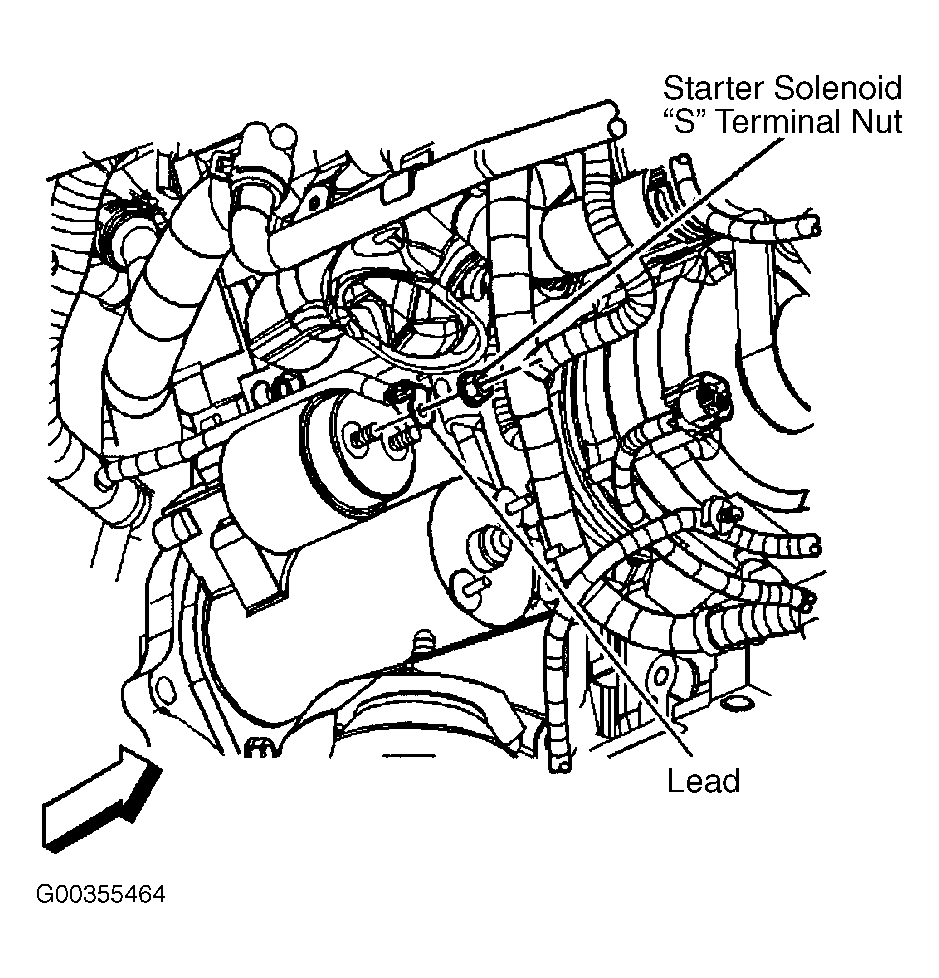

  4. Connect the lead to the starter solenoid and install the starter solenoid "S" terminal nut. See Figure . Tighten the starter solenoid "S" terminal nut to specification. See TORQUE SPECIFICATIONS  .
  5. Install the starter heat shield. See STARTER SHIELD  .
