Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

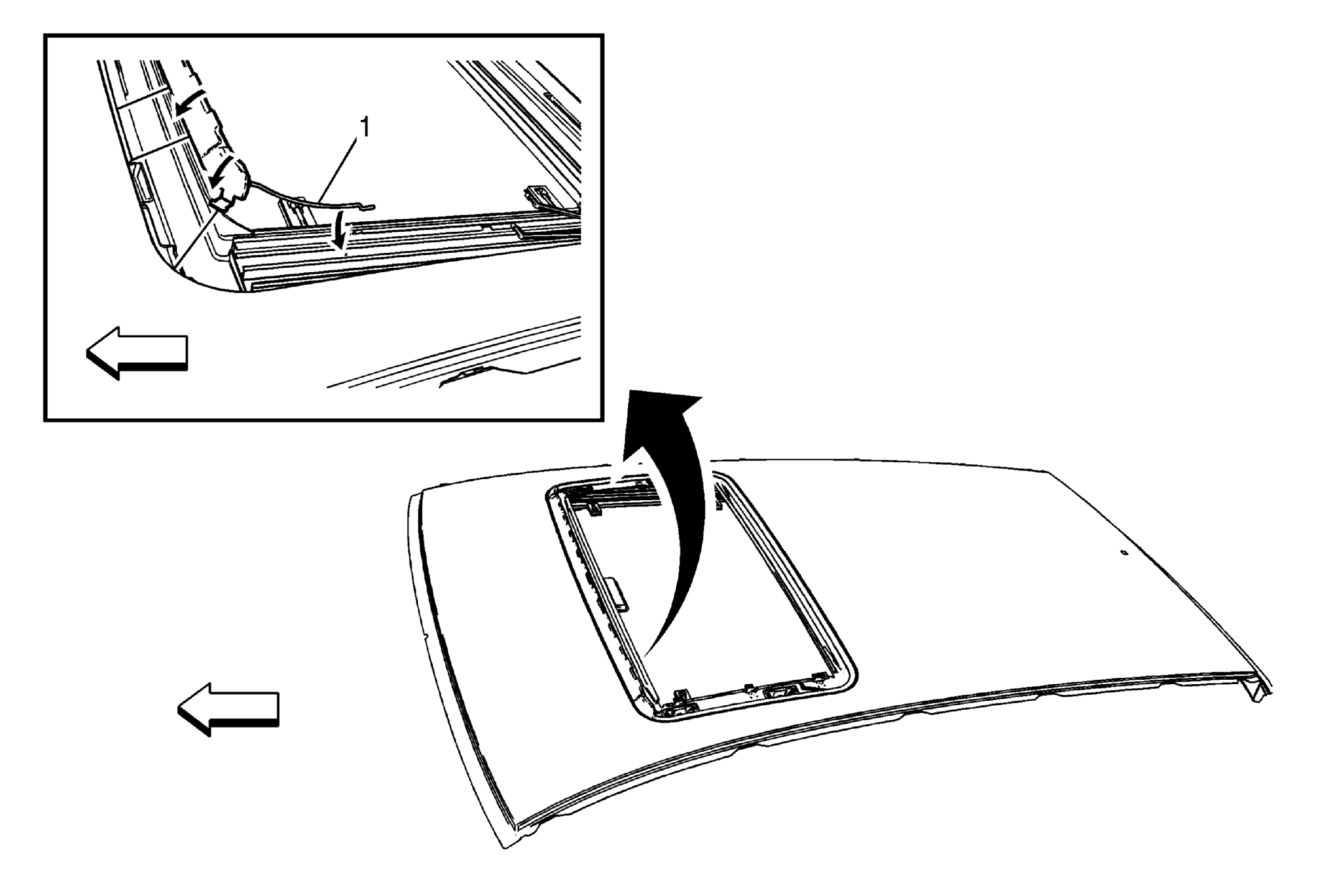

Fig 1: Sunroof Air Deflector Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Air Deflector Procedure Push down on the right front side of the air deflector. While pushing down on the right front side of air deflector. Lift up on the air deflector, releasing air deflector from the roof. Remove the air deflector springs for the sunroof frame on both sides. Tip: Do not lift up on the spring of the air deflector with a strong force, the spring can be damaged.

Callout

Component Name

Preliminary Procedure:
Open the sunroof window.

Sunroof Air Deflector

Procedure

Push down on the right front side of the air deflector.
While pushing down on the right front side of air deflector. Lift up on the air deflector, releasing air deflector from the roof.
Remove the air deflector springs for the sunroof frame on both sides.

Tip: Do not lift up on the spring of the air deflector with a strong force, the spring can be damaged.
