Removal Procedure

  1. Raise and suitably support the vehicle.
  2. Disconnect the horn electrical connector.
  3. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.
  4. Remove the horn (2) from the radiator support (1).

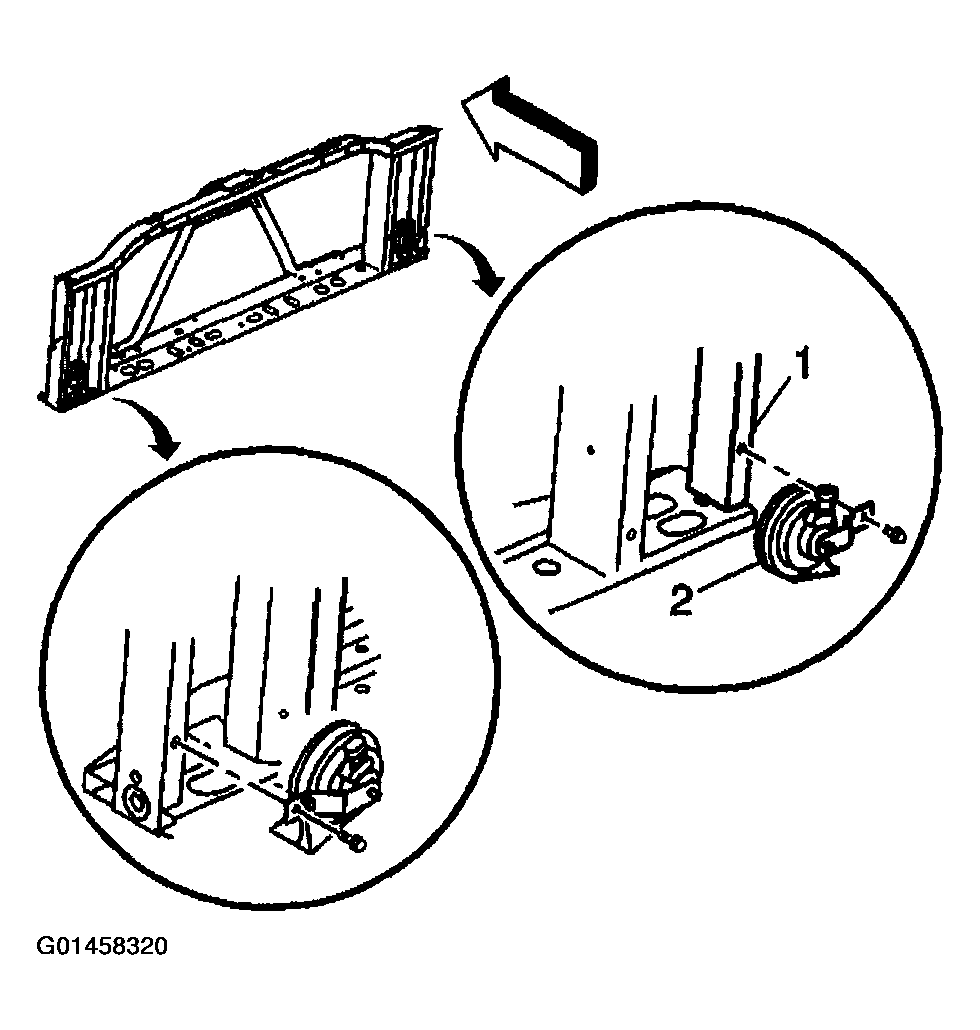

    5. Fig 1: Removing Horn From Radiator Support
    G01458320Courtesy of GENERAL MOTORS CORP.
