Removal Procedure

  1. Raise the hood.
  2. Remove the battery. Refer to BATTERY REPLACEMENT in Engine Electrical.
  3. Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT in Engine Electrical.
  4. Remove the washer reservoir. Refer to WASHER PUMP/RESERVOIR REPLACEMENT in Wipers/Washer Systems.

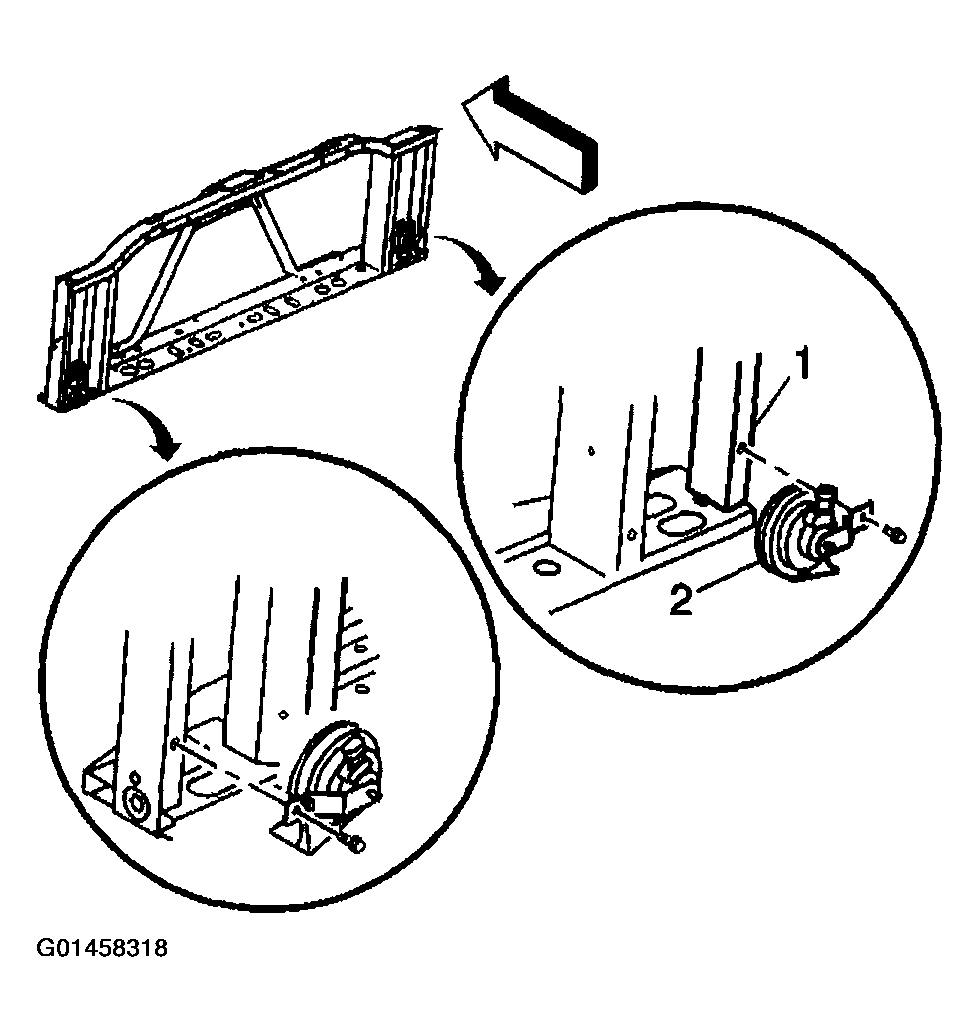

    5. Fig 1: Removing Horn From Radiator Support
    G01458318Courtesy of GENERAL MOTORS CORP.
  5. Raise and suitably support the vehicle.
  6. Disconnect the horn electrical connector.
  7. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.
  8. Remove the horn (2) from the radiator support (1).
