Horns Connector End Views

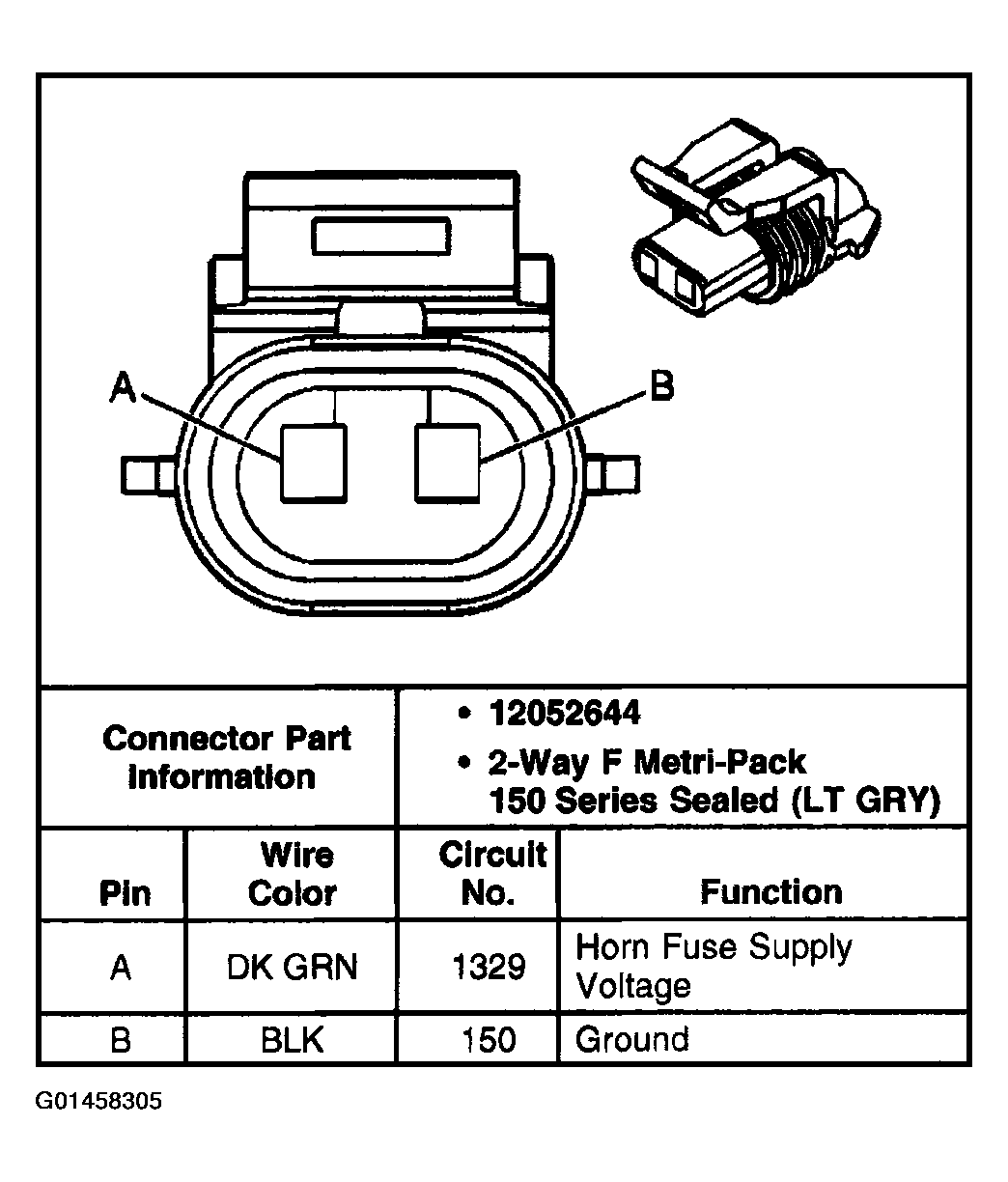

Fig 1: Identifying Horn-Right-High Note

G01458305

Courtesy of GENERAL MOTORS CORP.

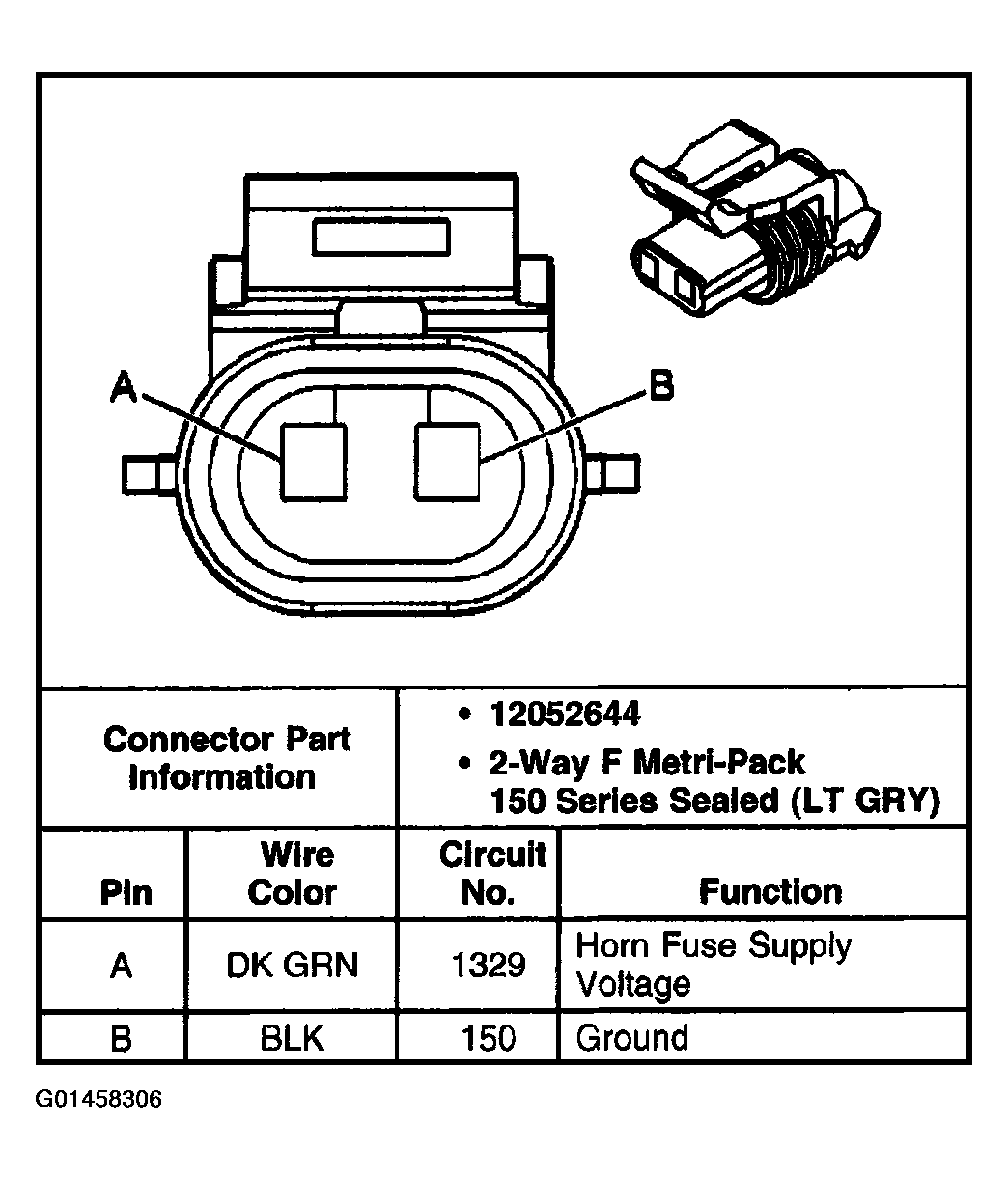

Fig 2: Identifying Horn-Left-Low Note

G01458306

Courtesy of GENERAL MOTORS CORP.
