Installation Procedure

  1. Install the power outlets to the end panel, if equipped. Refer to ACCESSORY POWER RECEPTACLE REPLACEMENT - 12 VOLT  .
  2. Install the rear seat audio control, if equipped.
  3. Install the rear seat heater switch, if equipped. Refer to HEATED SEAT SWITCH REPLACEMENT - REAR in Seats.
  4. Connect all electrical connectors.
  5. Install the end panel to the console.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

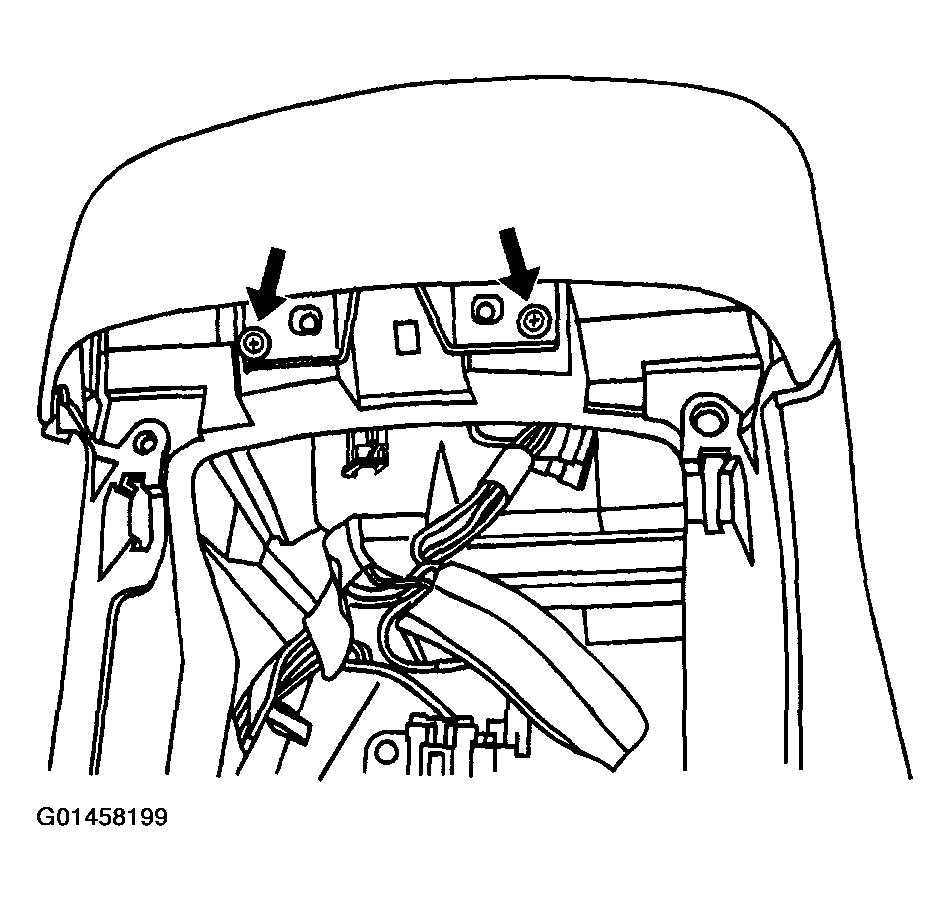

    Fig 1: Installing End Panel To Console
    G01458199Courtesy of GENERAL MOTORS CORP.
  6. Install the 2 top retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  7. Install the 2 retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  8. Install the rear cupholder to the end panel. Refer to CUPHOLDER REPLACEMENT (NON-LUXURY)  or CUPHOLDER REPLACEMENT (LUXURY)  or CUPHOLDER REPLACEMENT (REAR)  .
  9. Install the storage bin. Refer to CONSOLE STORAGE BIN REPLACEMENT (EXPECT PRO)  .

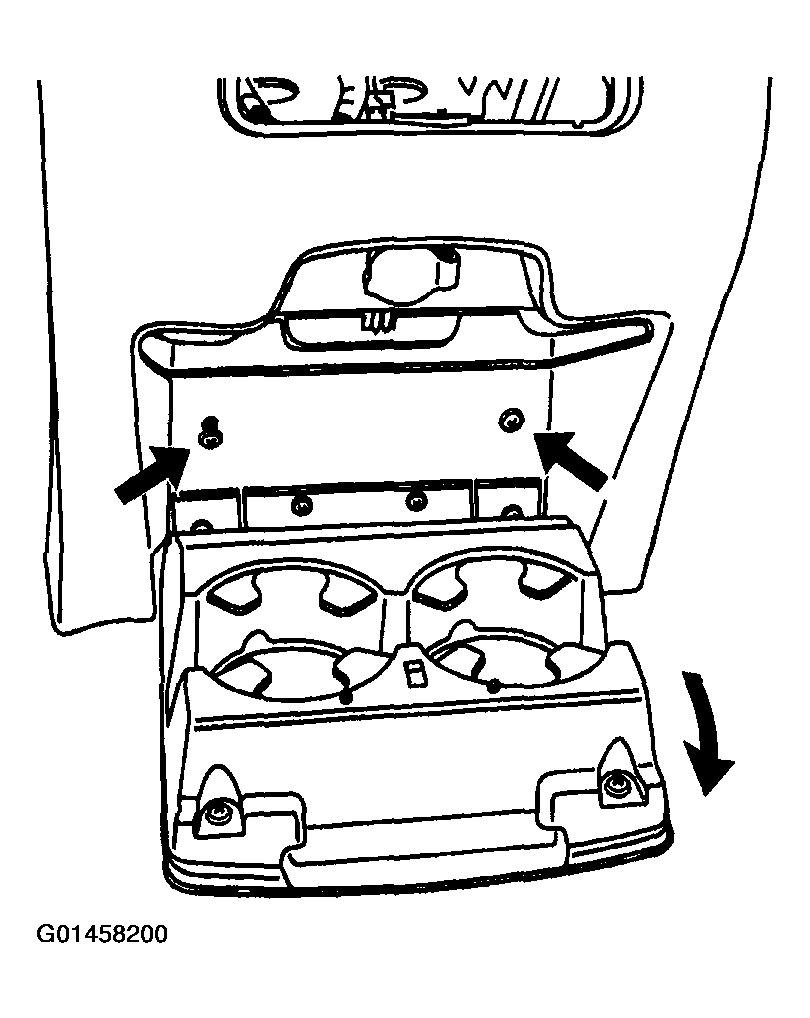

    Fig 2: Installing Rear Cupholder To End Panel
    G01458200Courtesy of GENERAL MOTORS CORP.
