Removal Procedure

CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Loosen the negative cable bolt.
  4. Remove the battery cable from the battery.

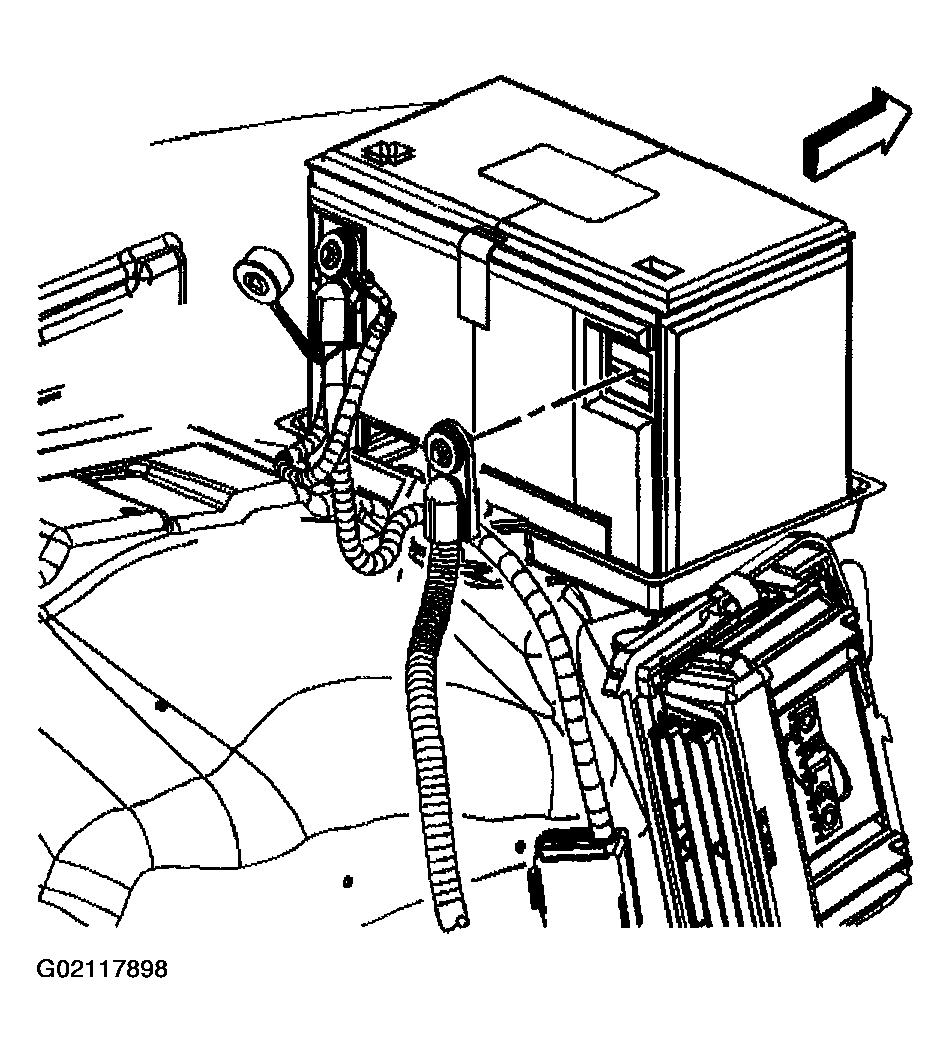

    Fig 1: Removing Battery Cable From Battery
    G02117898Courtesy of GENERAL MOTORS CORP.
