Stationary Windows Connector End Views

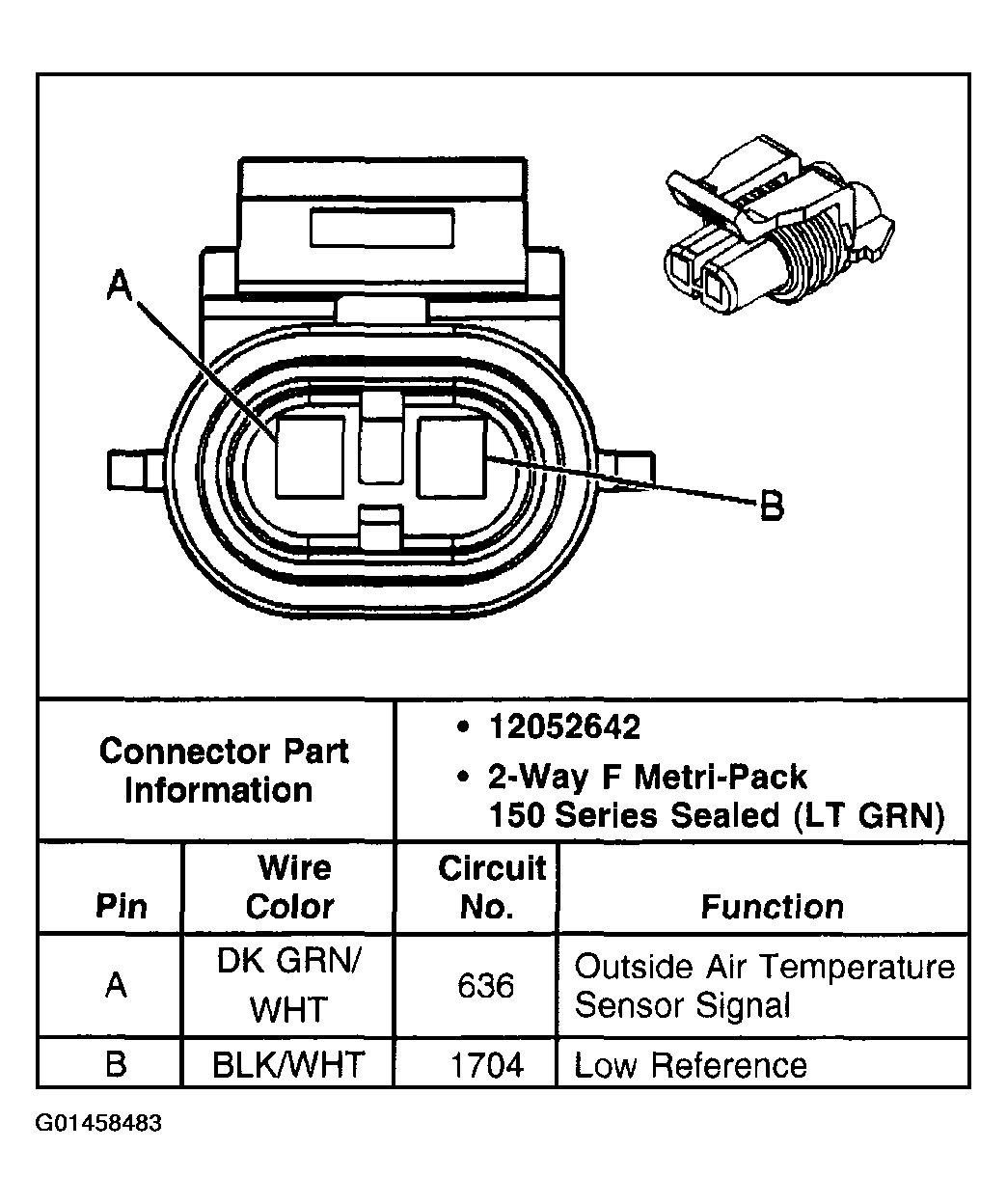

Fig 1: Identifying Air Temperature Sensor - Outside Terminals
G01458483Courtesy of GENERAL MOTORS CORP.

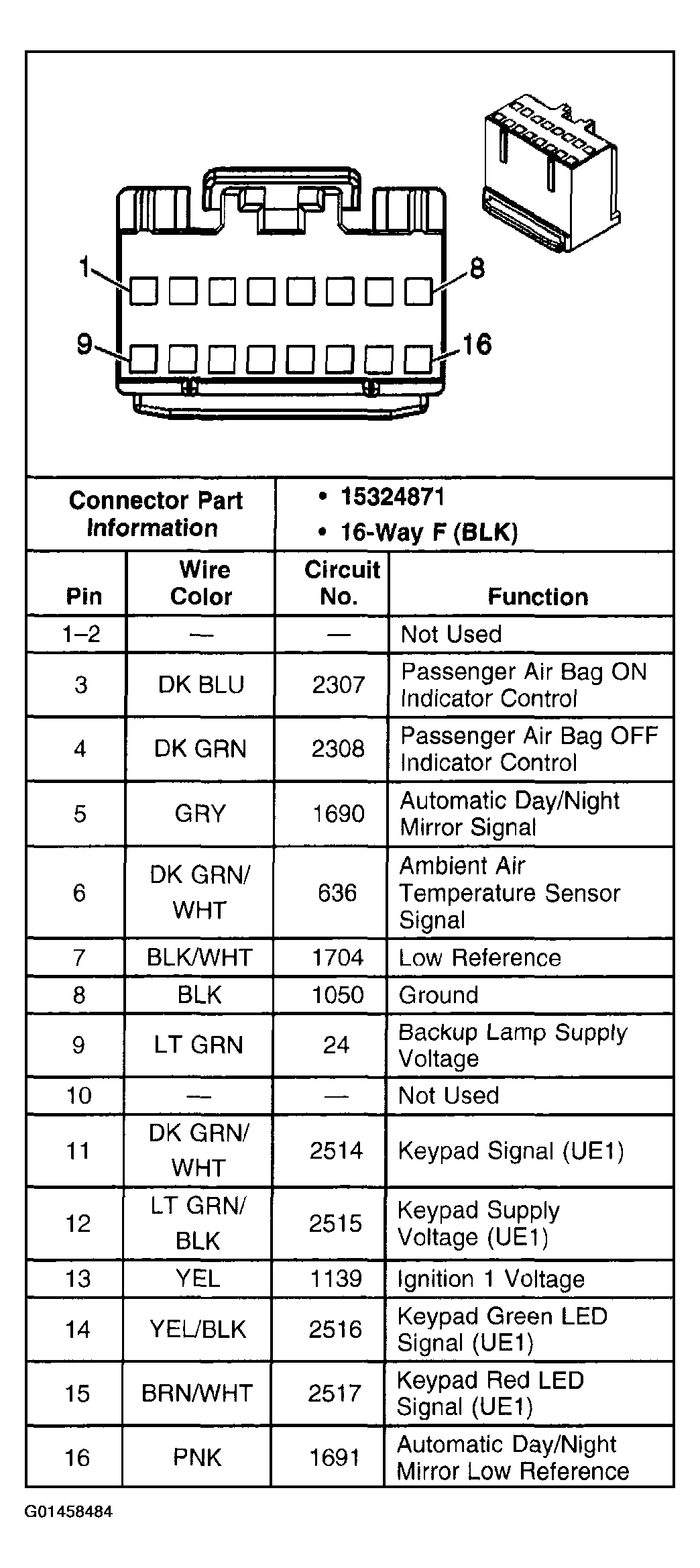

Fig 2: Identifying Inside Rearview Mirror Connector Terminals
G01458484Courtesy of GENERAL MOTORS CORP.
