Home >> Cadillac >> 2003 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Window Run Channel Replacement - Front Door >> Removal Procedure

Removal Procedure

  1. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  2. Remove the window glass weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - FRONT DOOR WINDOW  .
  3. Remove the window run channel bolts.
  4. Remove the front and the rear window run channels from the door.

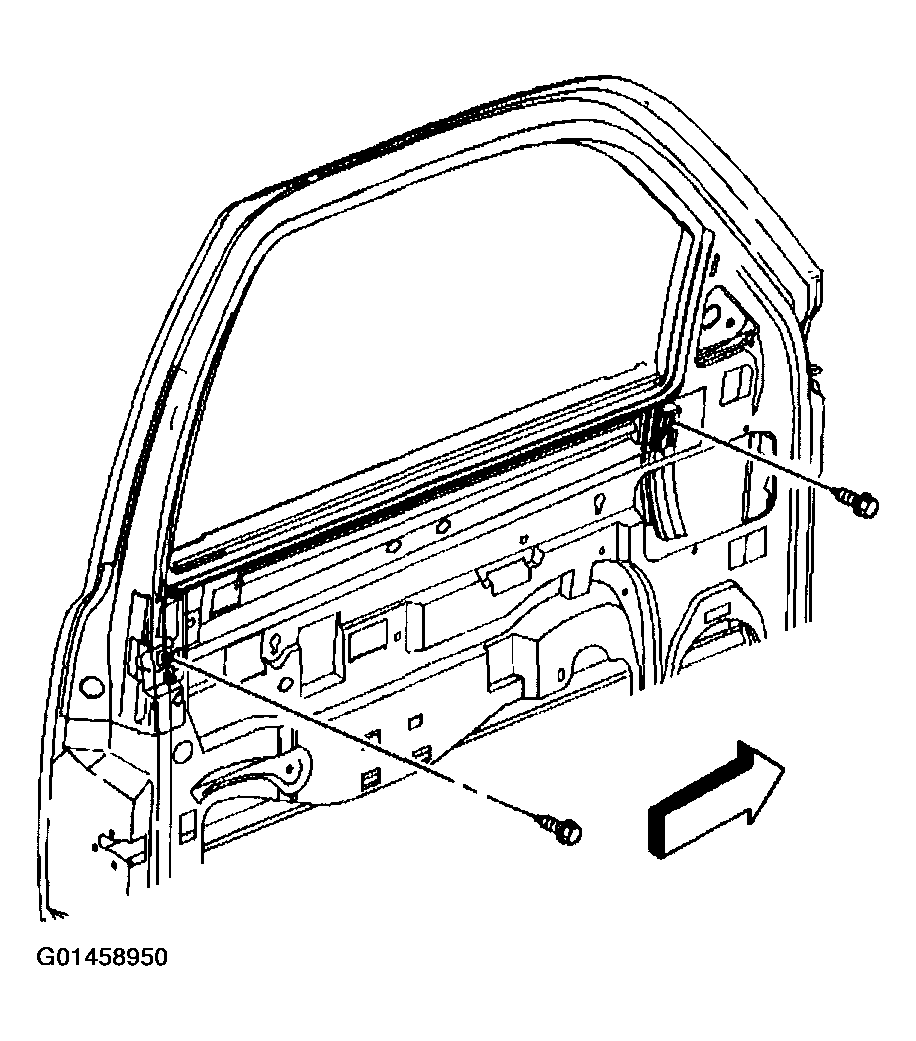

    5. Fig 1: Removing Front Door Window Run Channel
    G01458950Courtesy of GENERAL MOTORS CORP.
