Removal Procedure

  1. Partially raise the window.
  2. Remove the upper trim panel extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  3. Remove the manual door-lock lever.
  4. Remove the manual window handle, if equipped. Refer to WINDOW HANDLE REPLACEMENT  .
  5. Remove the door switch panel, if equipped. Refer to SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - DRIVER  and SWITCH REPLACEMENT - DOOR LOCK AND SIDE WINDOW - PASSENGER  .
  6. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  7. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  8. Remove the front bolt attachment from the window run channel.

    Important:  Do not remove the bolts.

  9. Loosen the 2 retaining bolts (2) from the window assembly.

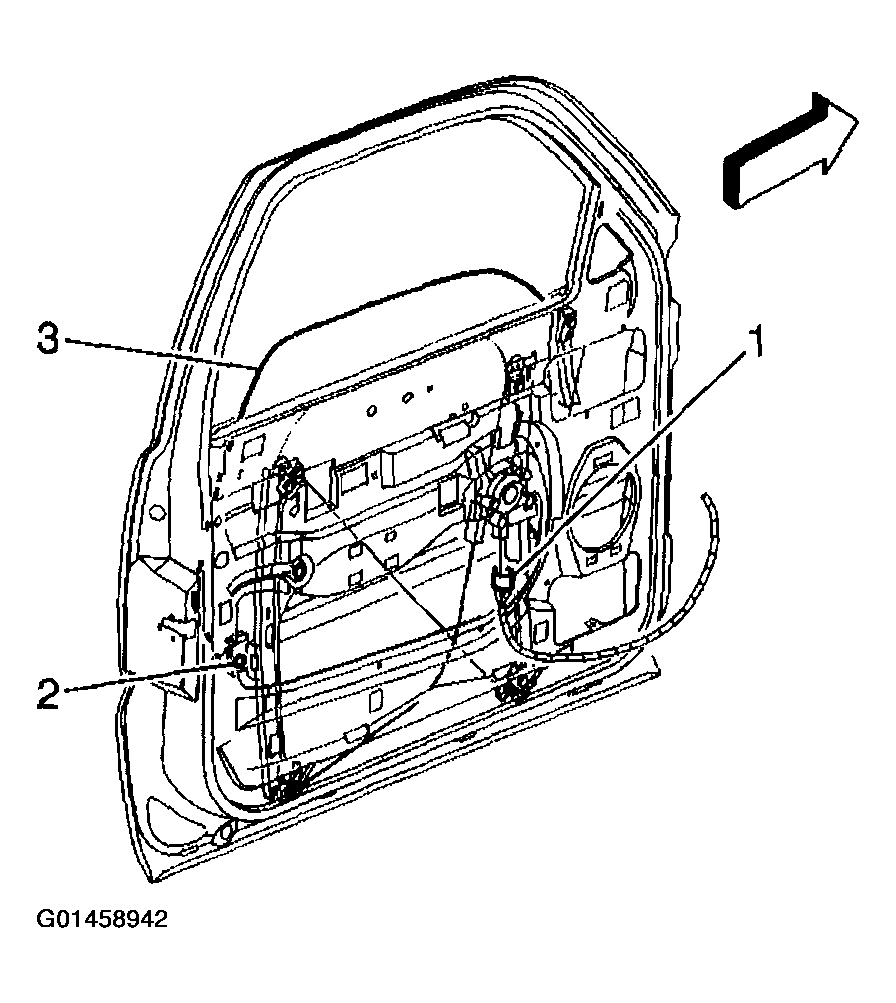

    10. Fig 1: Removing Front Door Window
    G01458942Courtesy of GENERAL MOTORS CORP.
  10. Remove the window glass (3) from the door by sliding the window glass out through the top.
