Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR  .
  3. Remove the window. Refer to WINDOW REPLACEMENT - FRONT DOOR  .
  4. Remove the screws.
  5. Pull the weatherstrip from the following locations:
    • The front of the glass run channel
    • The top of the window frame flange
    • The rear of the glass run channel
  6. Remove the weatherstrip from the door.

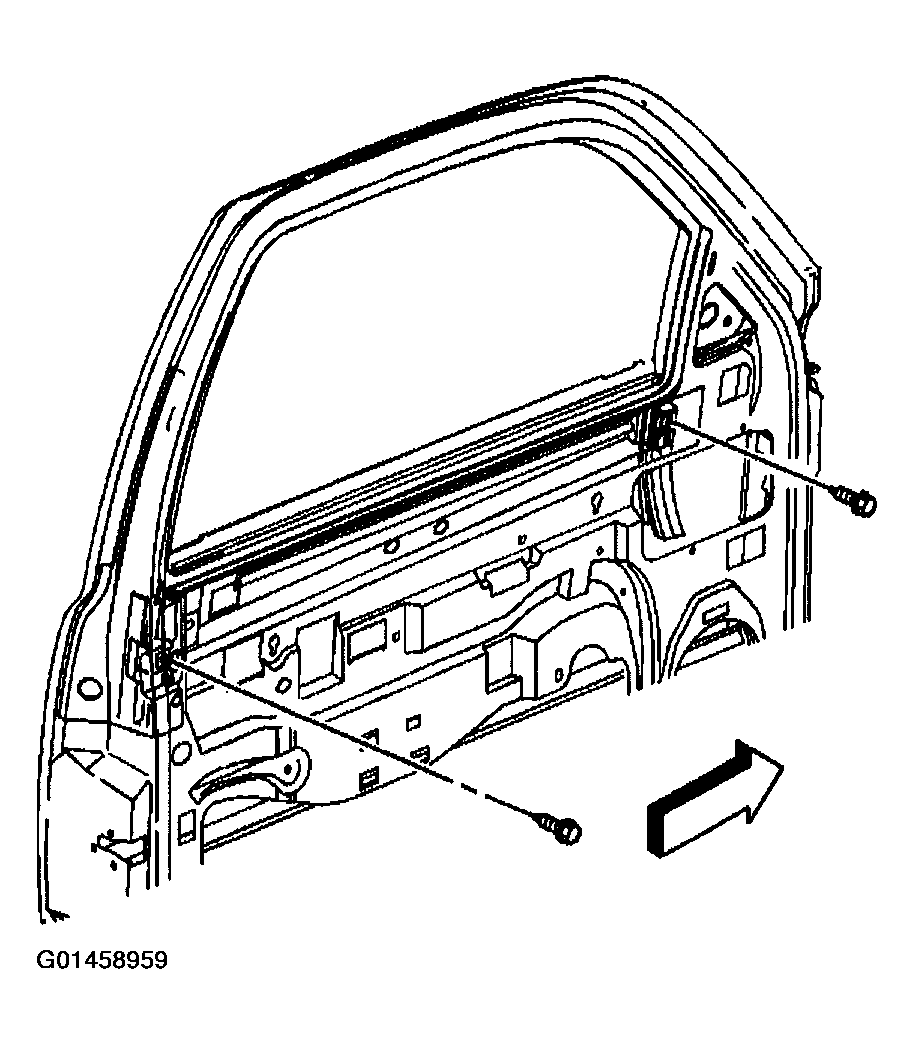

    7. Fig 1: Removing Front Door Window Weatherstrip
    G01458959Courtesy of GENERAL MOTORS CORP.
