Removal Procedure

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR  .
  2. Remove inside door handle. Refer to DOOR HANDLE REPLACEMENT - INSIDE  .
  3. Note location of wiring and remove through deflector.
  4. Using a flat-bladed tool, separate the bond between the sealer and the door.
  5. Pull the waterproof sealing tape from the deflector.

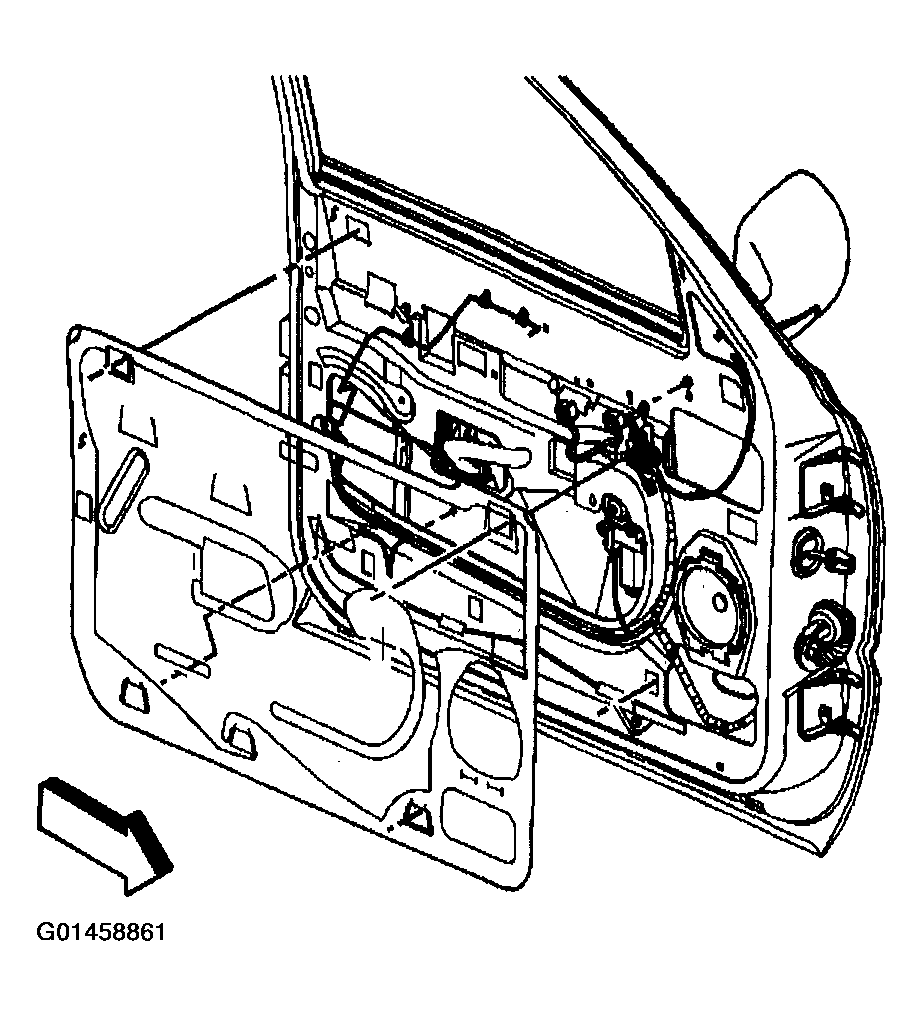

    6. Fig 1: Removing Water Deflector Front Door
    G01458861Courtesy of GENERAL MOTORS CORP.
  6. Remove the water deflector.
