Installation Procedure

  1. Position the lower retainer to the trim panel.

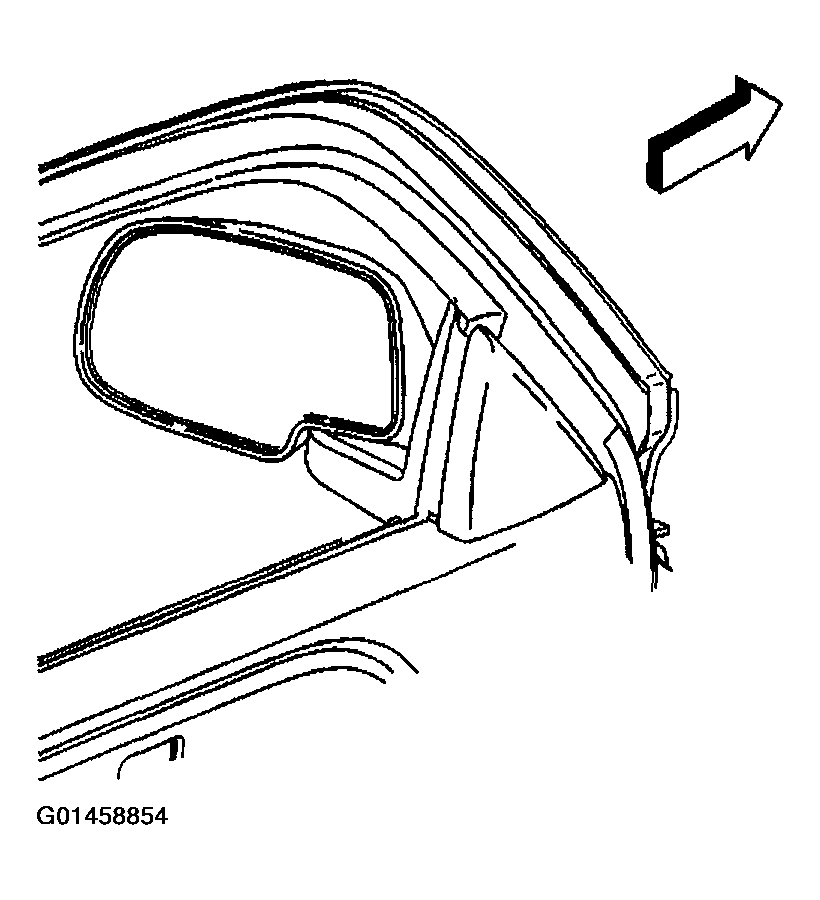

    2. Fig 1: Installing Trim Panel Upper Extension
    G01458854Courtesy of GENERAL MOTORS CORP.
  2. Align the upper retainer clip to the door frame.
  3. Install the upper extension by pressing into place until fully seated.
