Removal Procedure

  1. Remove the front door trim panel upper extension. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  2. Remove the nuts that retain the outside mirror to the door.
  3. Remove the outside mirror from the door.

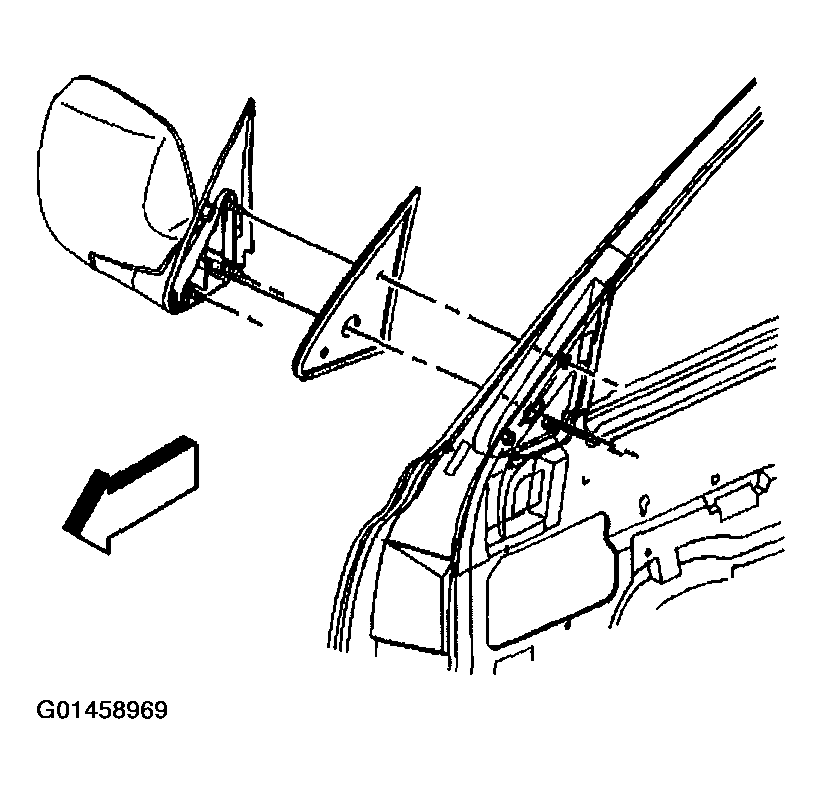

    4. Fig 1: Removing Manual Mirror
    G01458969Courtesy of GENERAL MOTORS CORP.
