Installation Procedure

  1. Position the door handle bezel in the door trim panel.

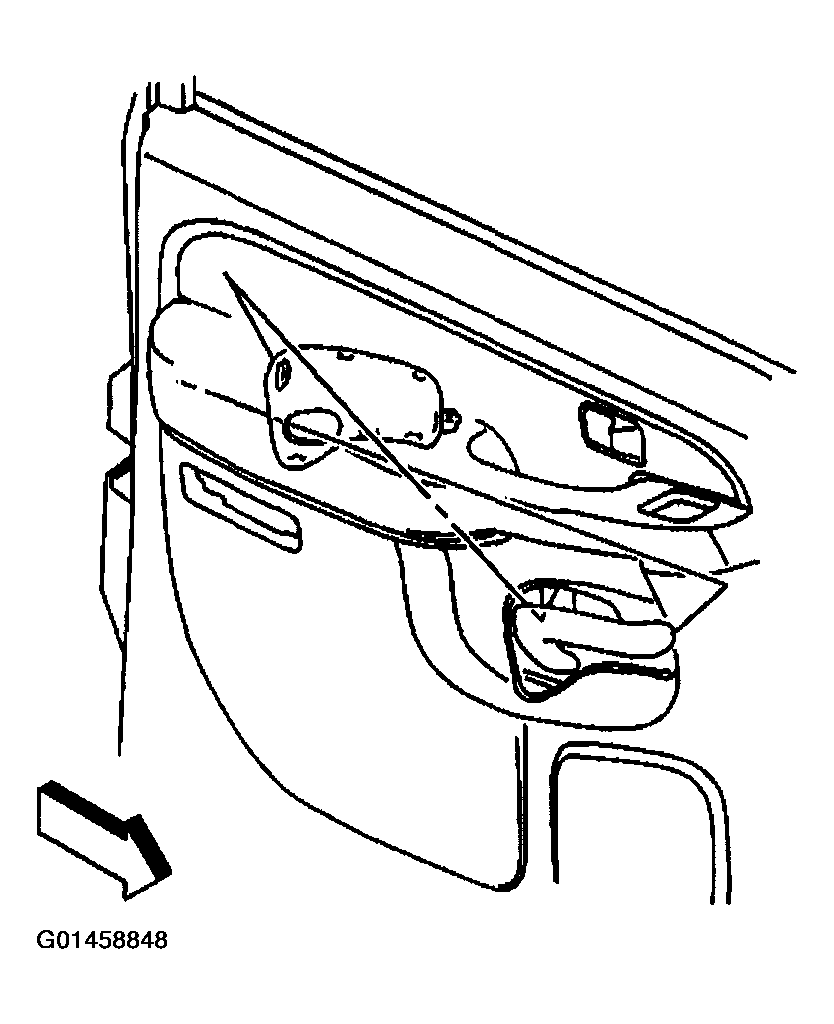

    2. Fig 1: Handle Bezel Installing Procedure
    G01458848Courtesy of GENERAL MOTORS CORP.
  2. Install the door handle bezel to the door panel by pressing the bezel into place until the bezel is completely seated.
