Home >> Cadillac >> 2003 >> Escalade EXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Diagnostic Information and Procedures >> Scan Tool Data List

Scan Tool Data List

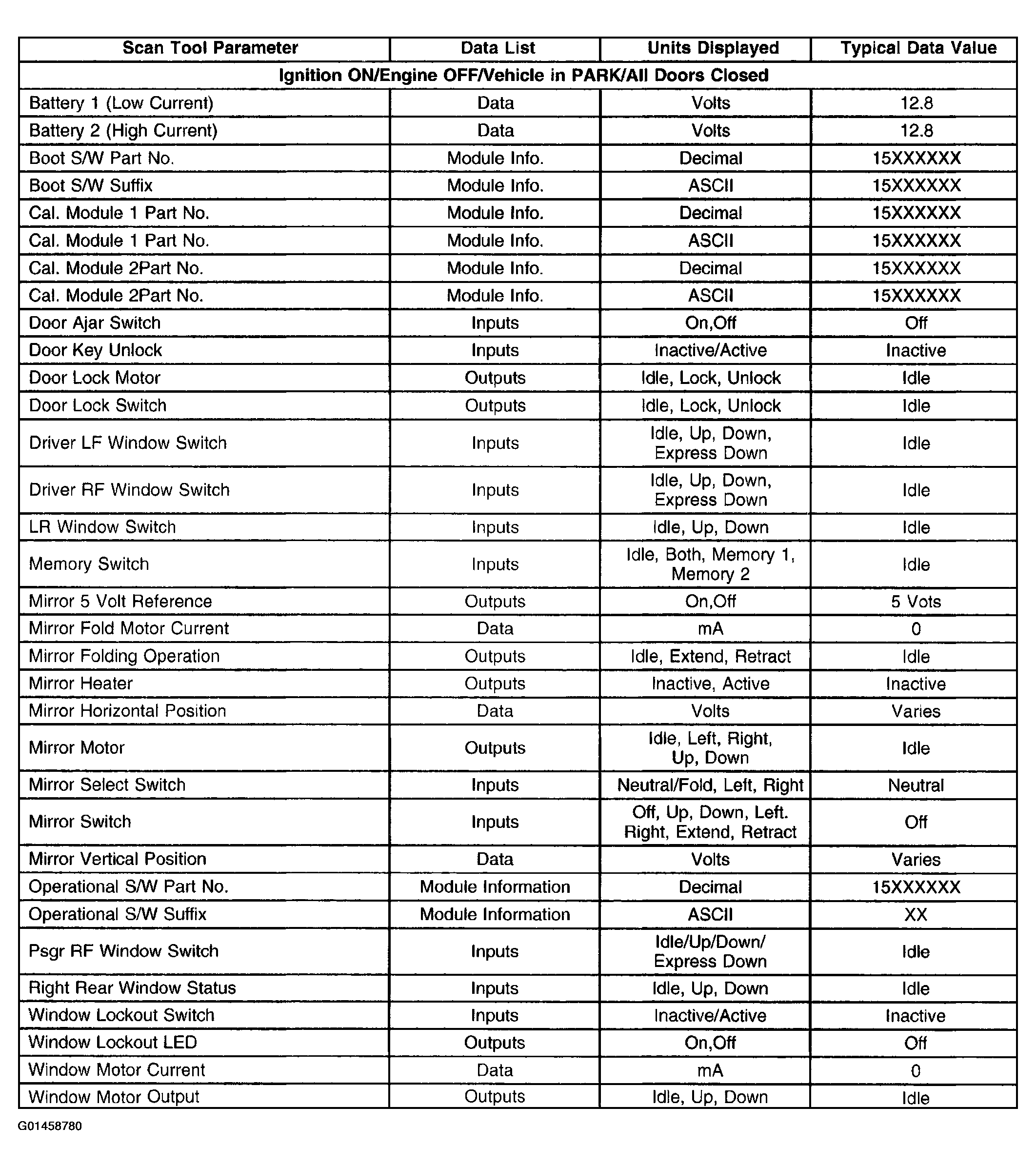

Fig 1: Driver/Passenger Door Module Scan Tool Specification Chart
G01458780Courtesy of GENERAL MOTORS CORP.

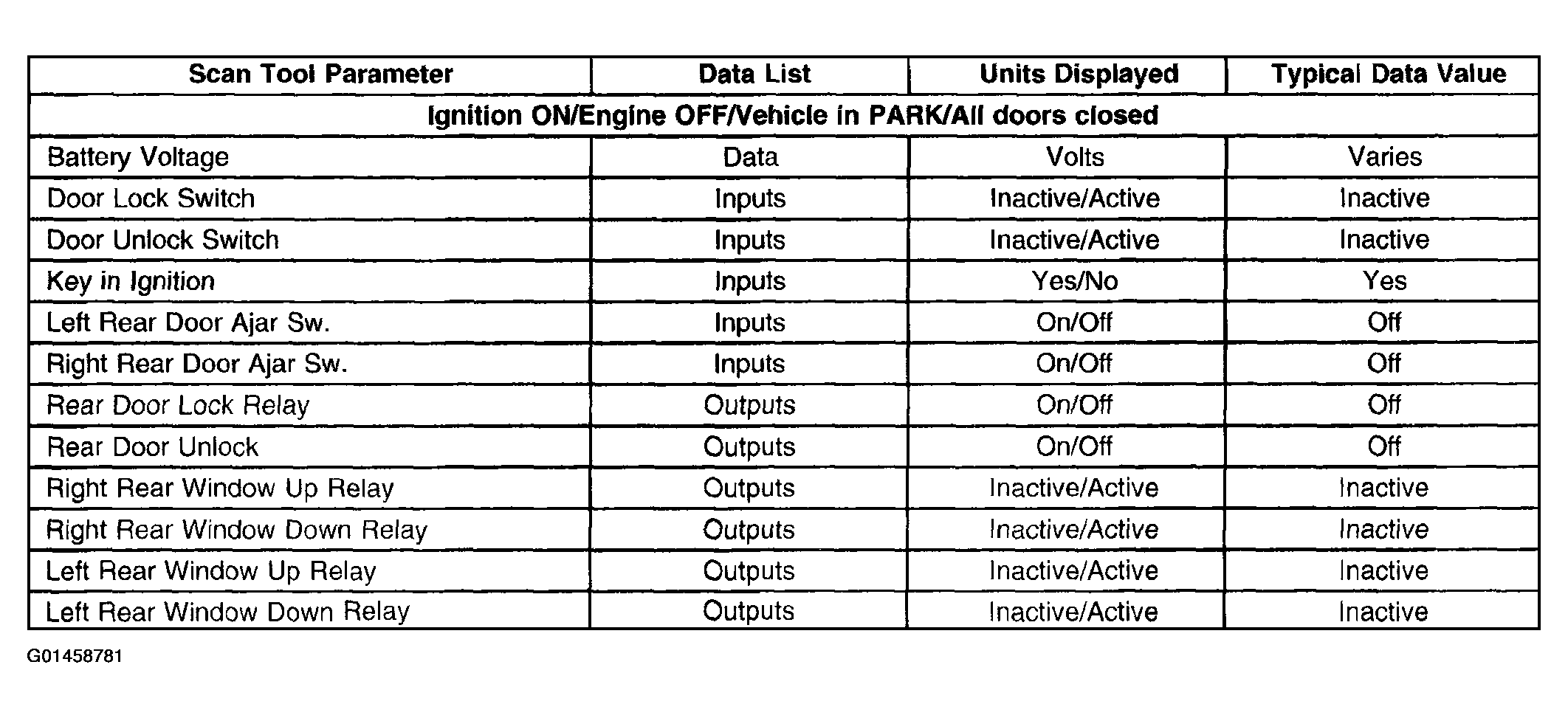

Fig 2: Driver/Passenger Door Module Scan Tool Specification Chart
G01458781Courtesy of GENERAL MOTORS CORP.
