Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the power seat switch to bezel screws.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).

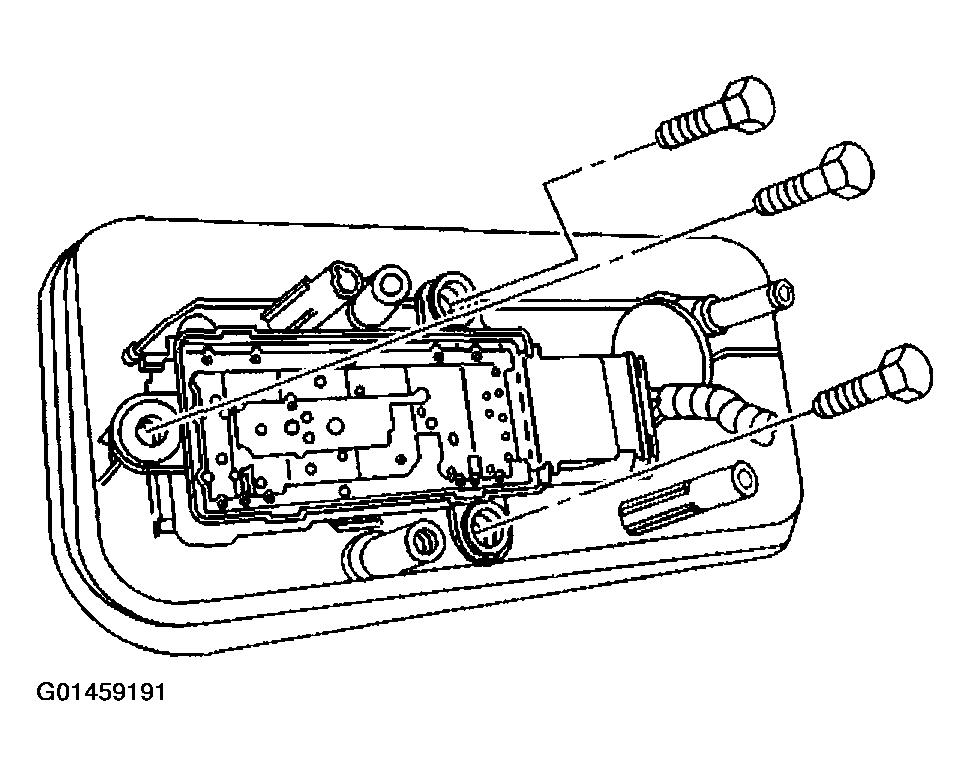

    Fig 1: Installing Power Seat Switch To Bezel Screws
    G01459191Courtesy of GENERAL MOTORS CORP.
  2. Install the power seat switch bezel to the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

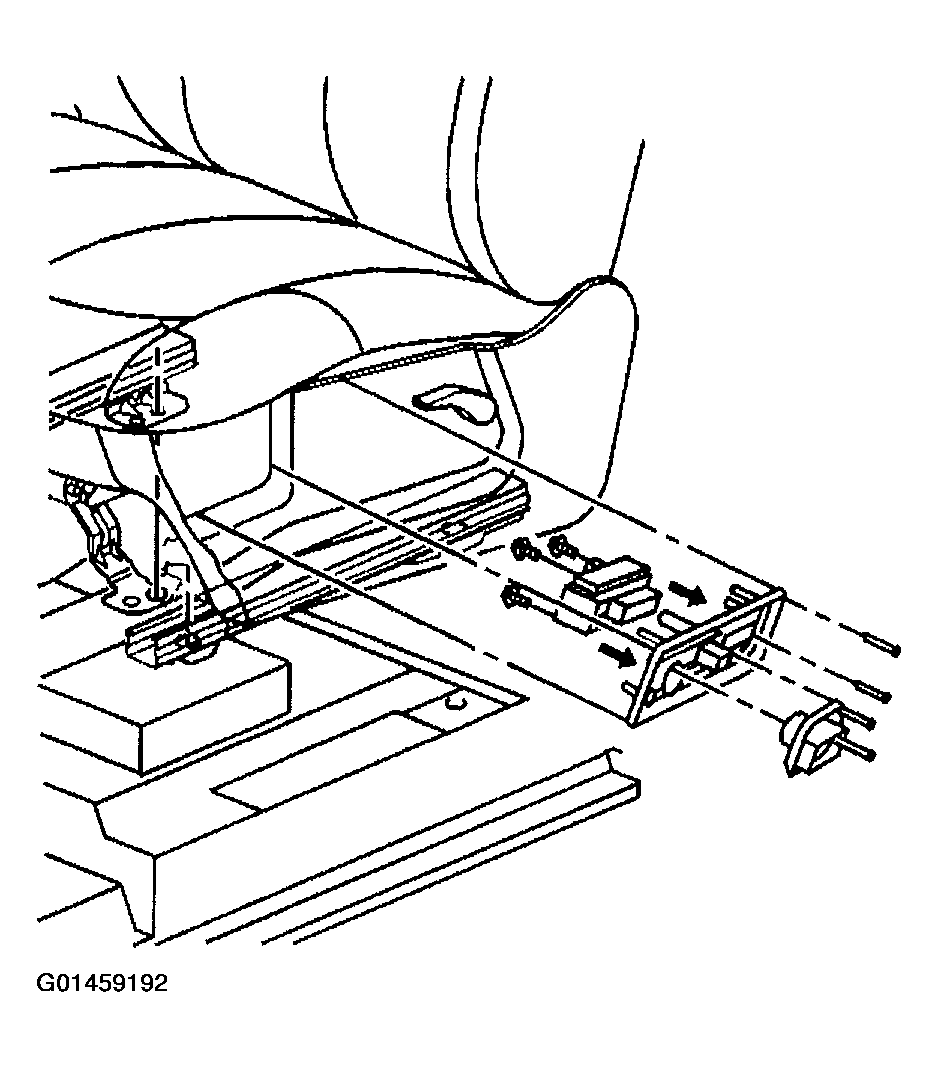

    Fig 2: Installing Power Seat Switch Bezel To Seat
    G01459192Courtesy of GENERAL MOTORS CORP.
