Installation Procedure

  1. Install the power seat adjuster switch assembly to the seat switch bezel.
  2. Install the lumbar support switch to the seat switch bezel.
  3. Connect the electrical connectors.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the screws retaining the power seat switch bezel.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).

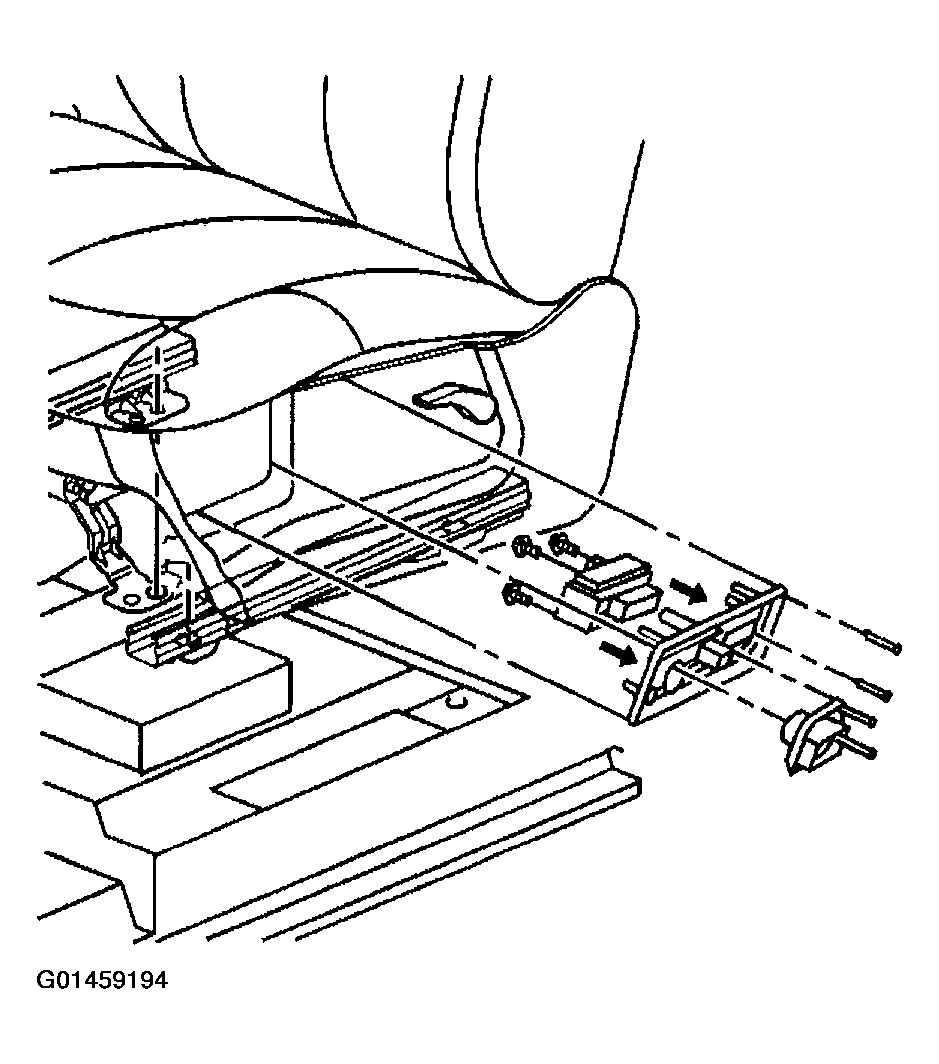

    Fig 1: Installing Screws Retaining Power Seat Switch Bezel
    G01459194Courtesy of GENERAL MOTORS CORP.
