Installation Procedure

  1. Position the seat in the vehicle.
  2. Connect the electrical harness, if equipped.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Move the seat to the full forward position in order to install the seat retaining rear bolts (1).

    Tighten

    1. Tighten the retaining rear bolts to 55 N.m (41 lb ft).
  4. Install the front seat adjuster bolt cover (3), if equipped.
  5. Move the seat to the full rearward position and install the seat retaining front nuts (2).

    Tighten

    1. Tighten the nuts to 55 N.m (41 lb ft).
  6. If equipped with side air bags, enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9   in SIR.

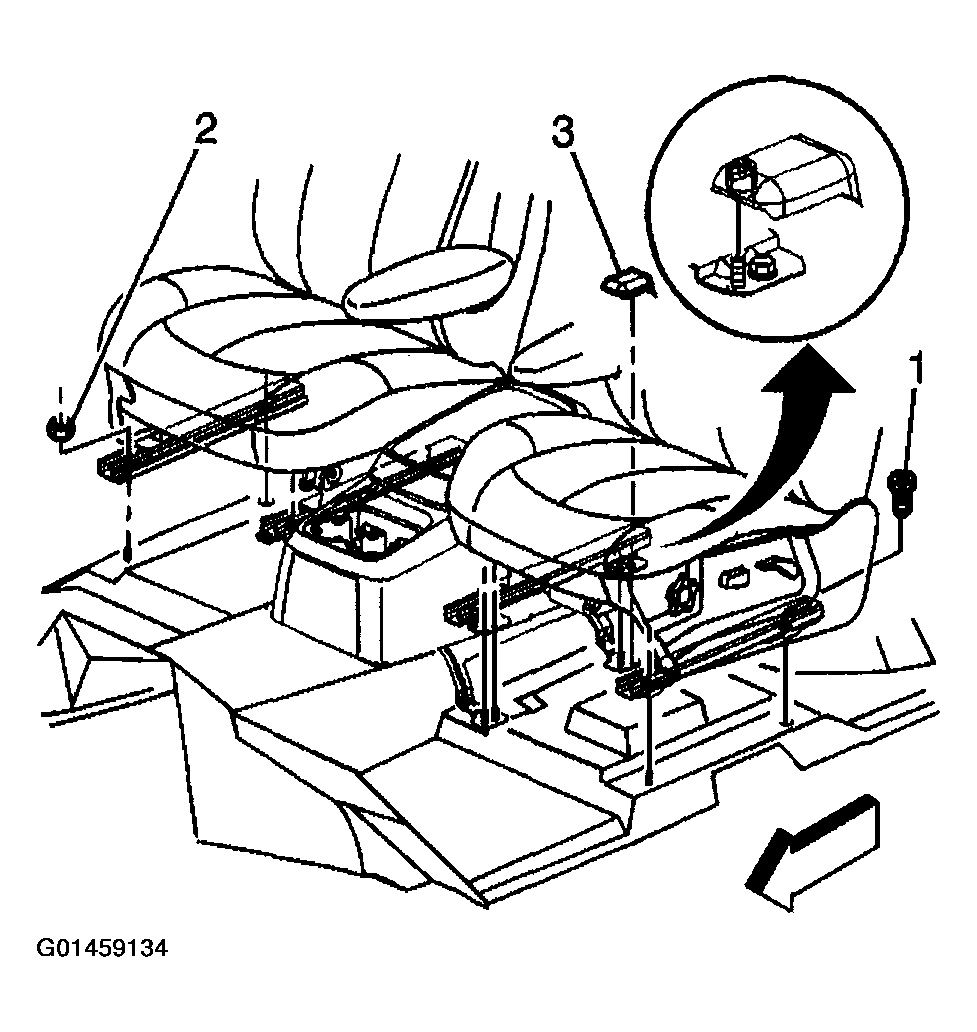

    Fig 1: Installing Front Seat Adjuster Bolt Cover
    G01459134Courtesy of GENERAL MOTORS CORP.
