Installation Procedure

  1. Position the front center seat on top of the floor locating studs.
  2. Install the front left and right bucket seats. Refer to SEAT REPLACEMENT - FRONT BUCKET  .

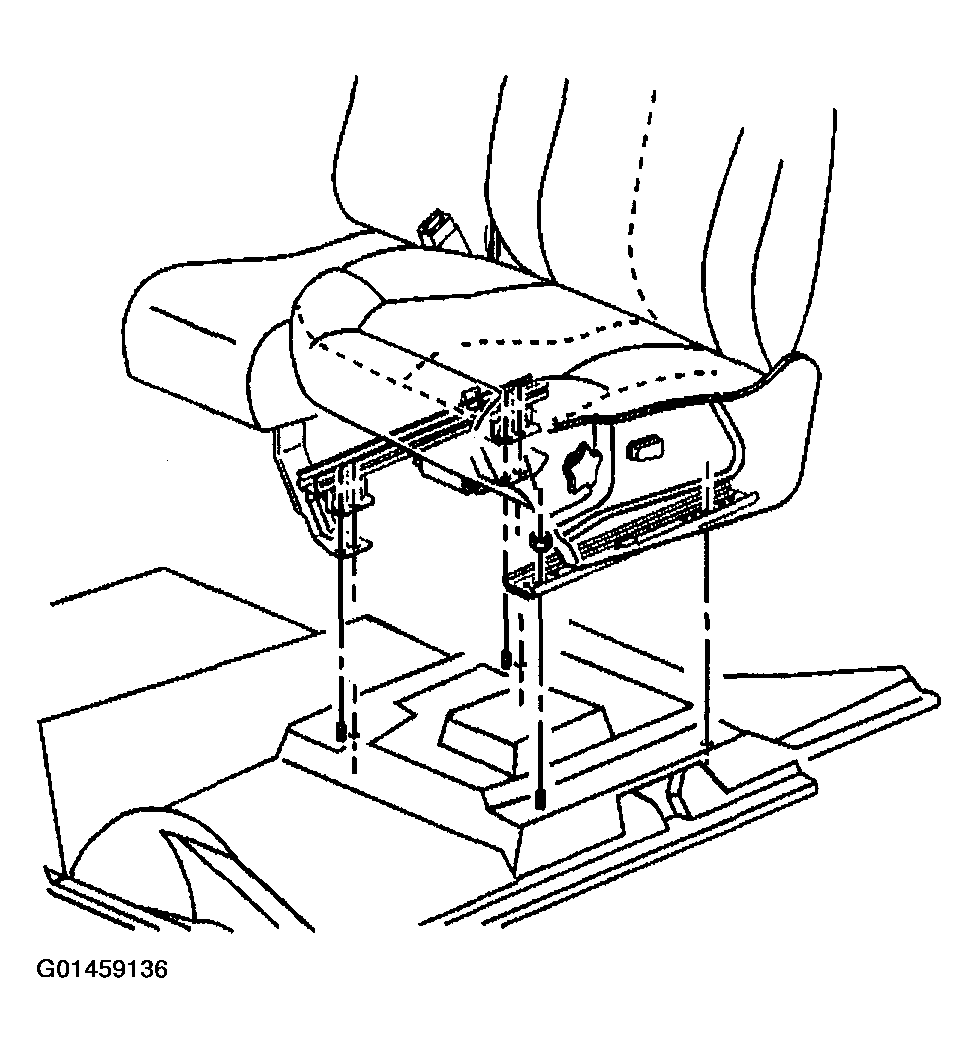

    Fig 1: Installing Center Seat
    G01459136Courtesy of GENERAL MOTORS CORP.
