Installation Procedure

  1. Install the lumbar switch to the power seat switch bezel.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the lumbar switch screws.

    Tighten

    1. Tighten the screws to 2 N.m (18 lb in).
  3. Install the power seat switch bezel (1) to the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

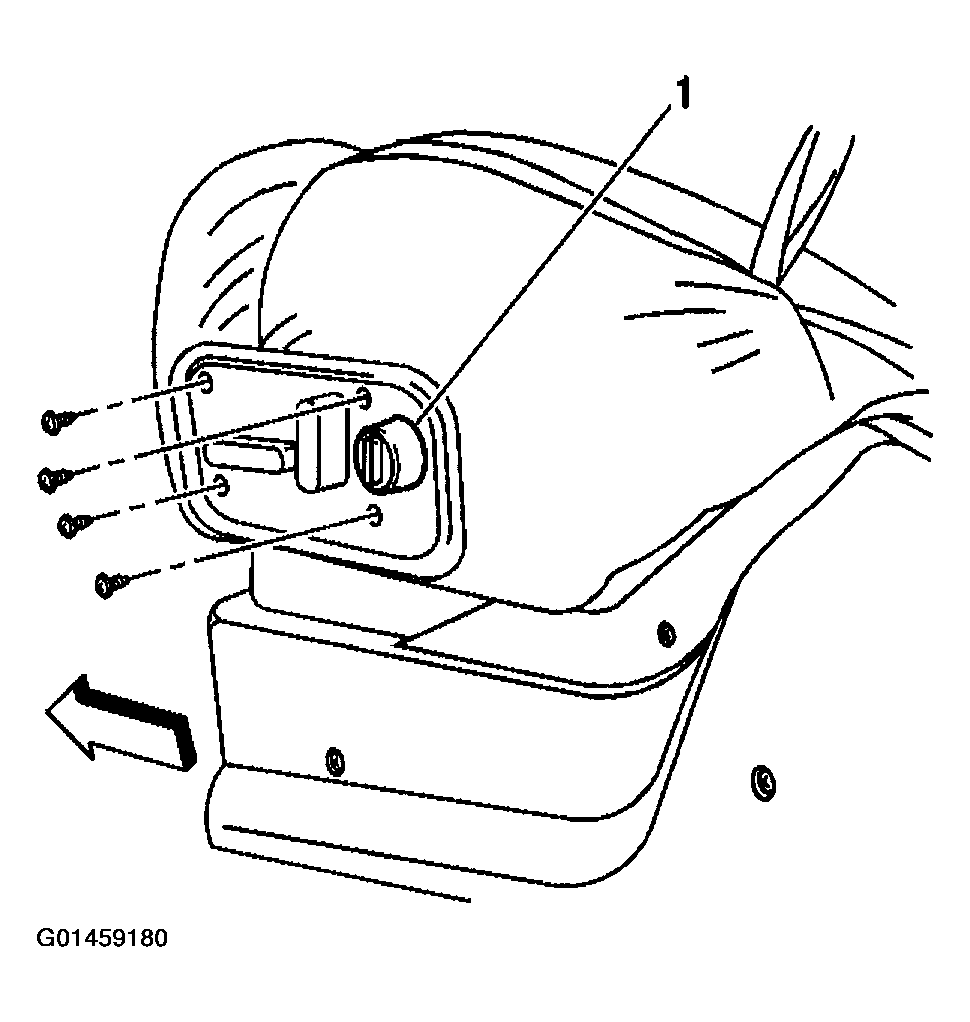

    Fig 1: Installing Lumbar Switch Screws
    G01459180Courtesy of GENERAL MOTORS CORP.
