Memory Seat Feature Inoperative

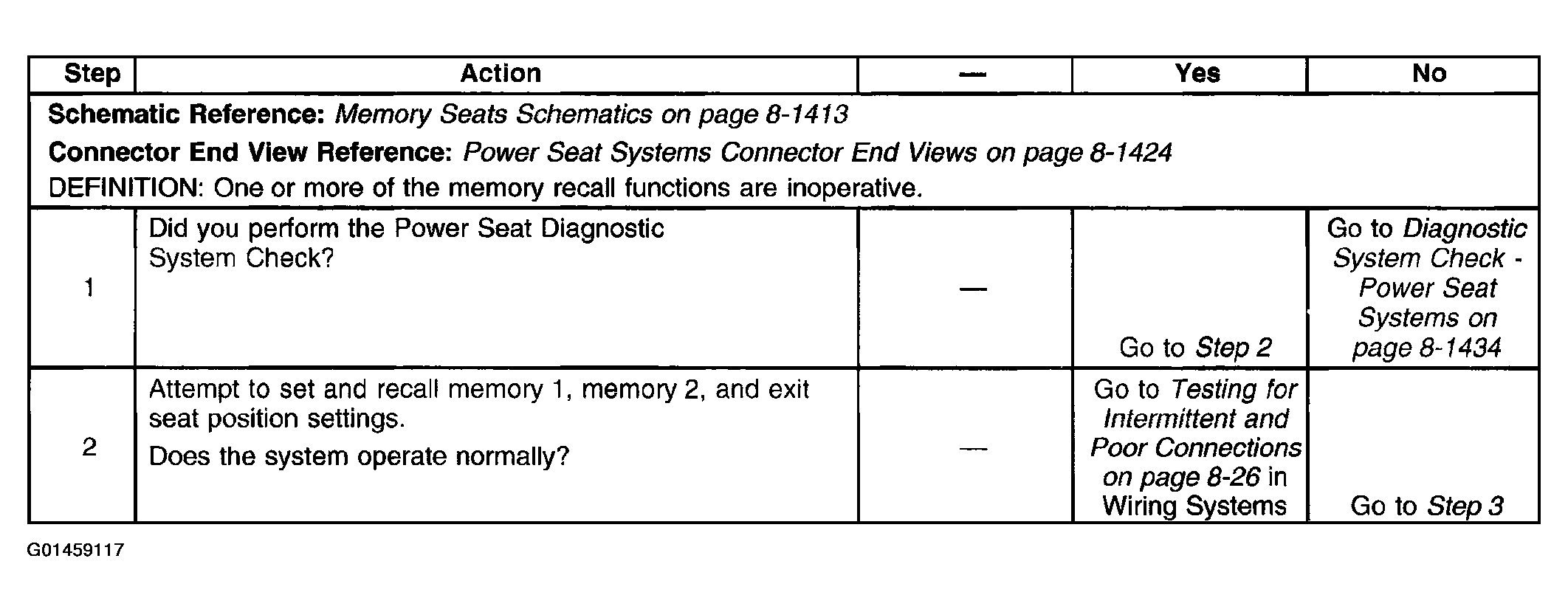

Fig 1: Diagnostic System Check - Memory Seat Feature Inoperative (1 Of 3)
G01459117Courtesy of GENERAL MOTORS CORP.

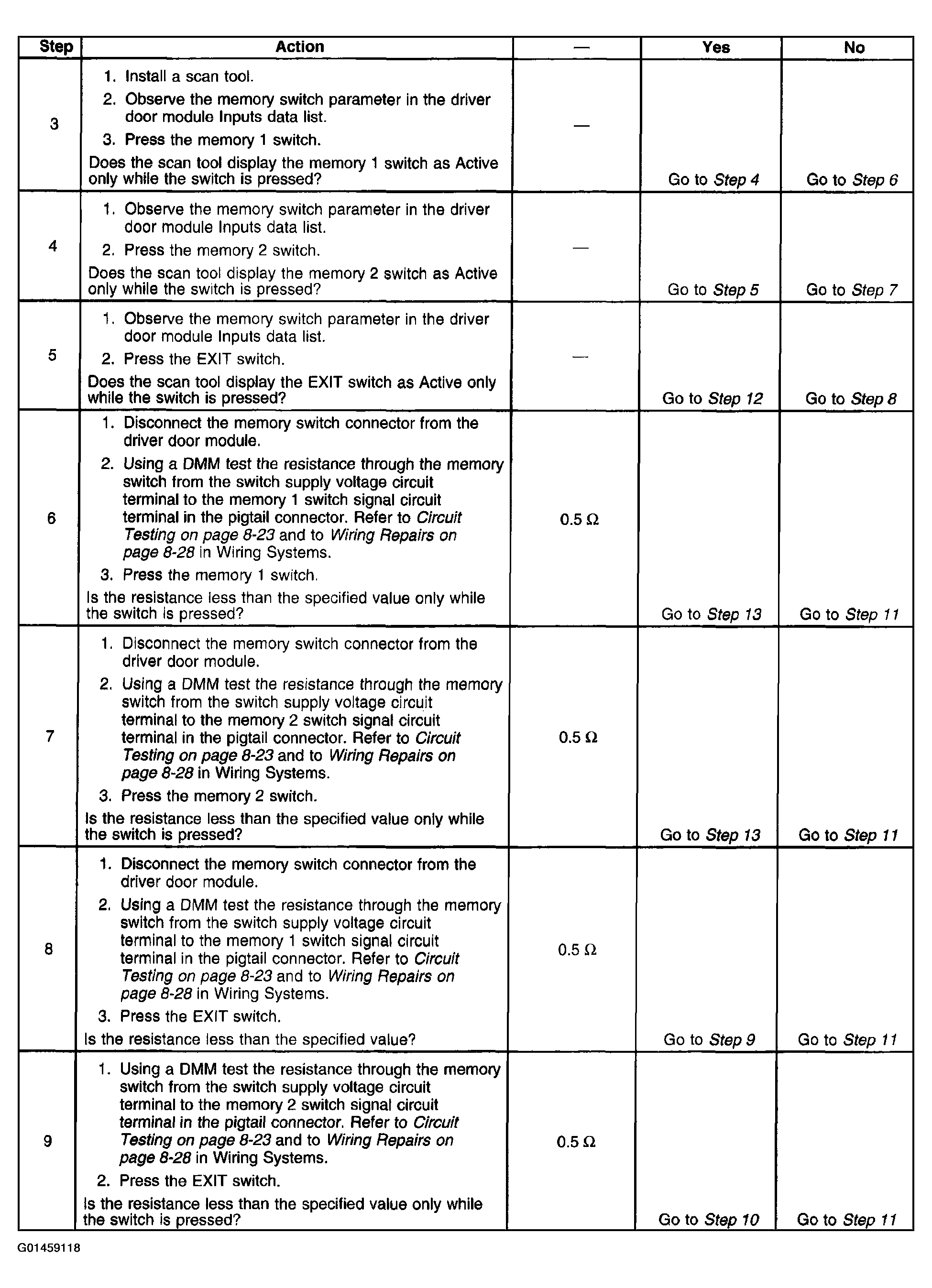

Fig 2: Diagnostic System Check - Memory Seat Feature Inoperative (2 Of 3)
G01459118Courtesy of GENERAL MOTORS CORP.

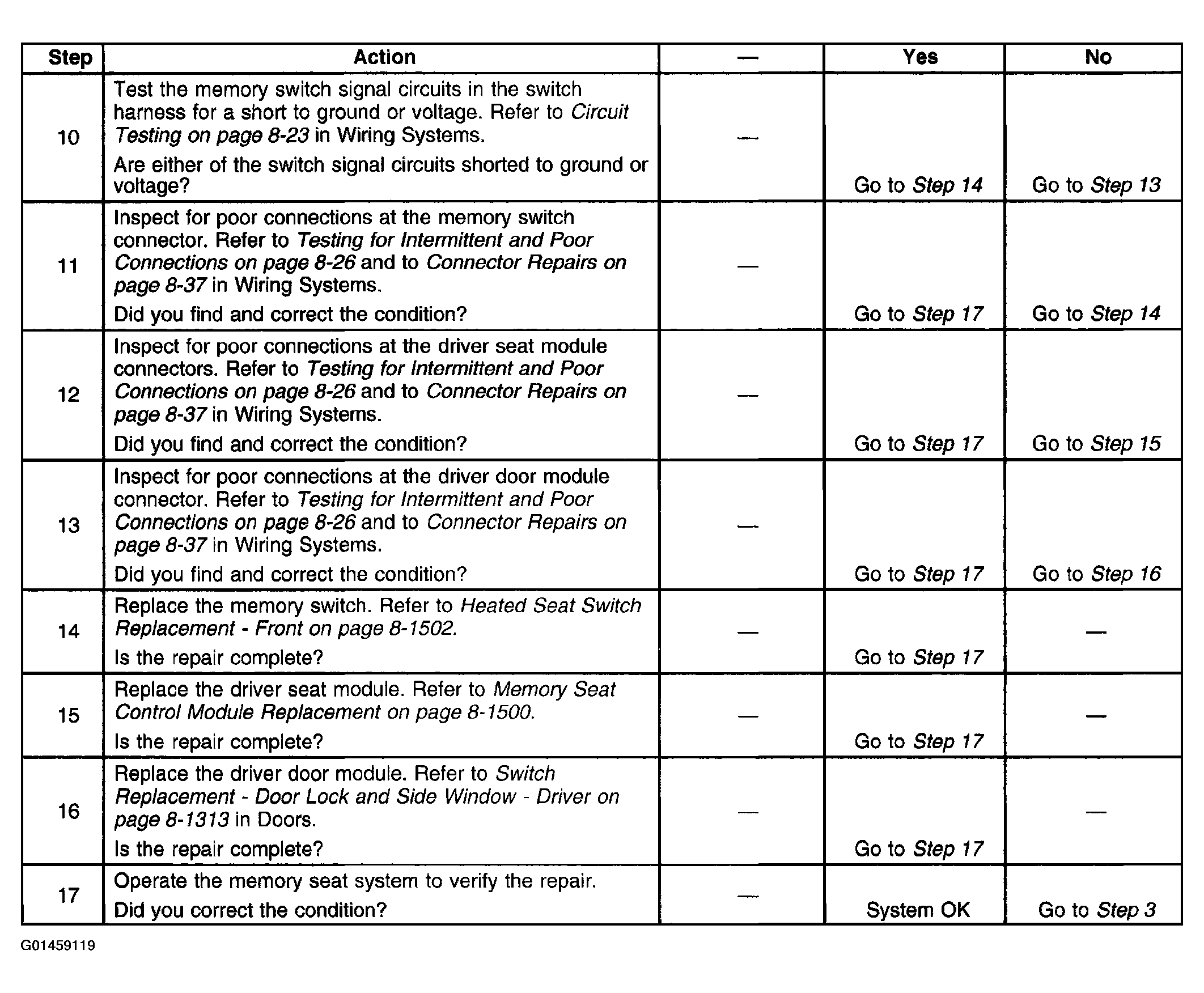

Fig 3: Diagnostic System Check - Memory Seat Feature Inoperative (3 Of 3)
G01459119Courtesy of GENERAL MOTORS CORP.
