Removal Procedure

  1. Remove the Park/Turn Signal. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT (EXCEPT AVALANCHE) or PARK/TURN SIGNAL LAMP REPLACEMENT (AVALANCHE) in Lighting Systems.
  2. Disconnect the electrical connector from the ambient air temperature sensor (3).
  3. Remove the ambient air temperature sensor (3).

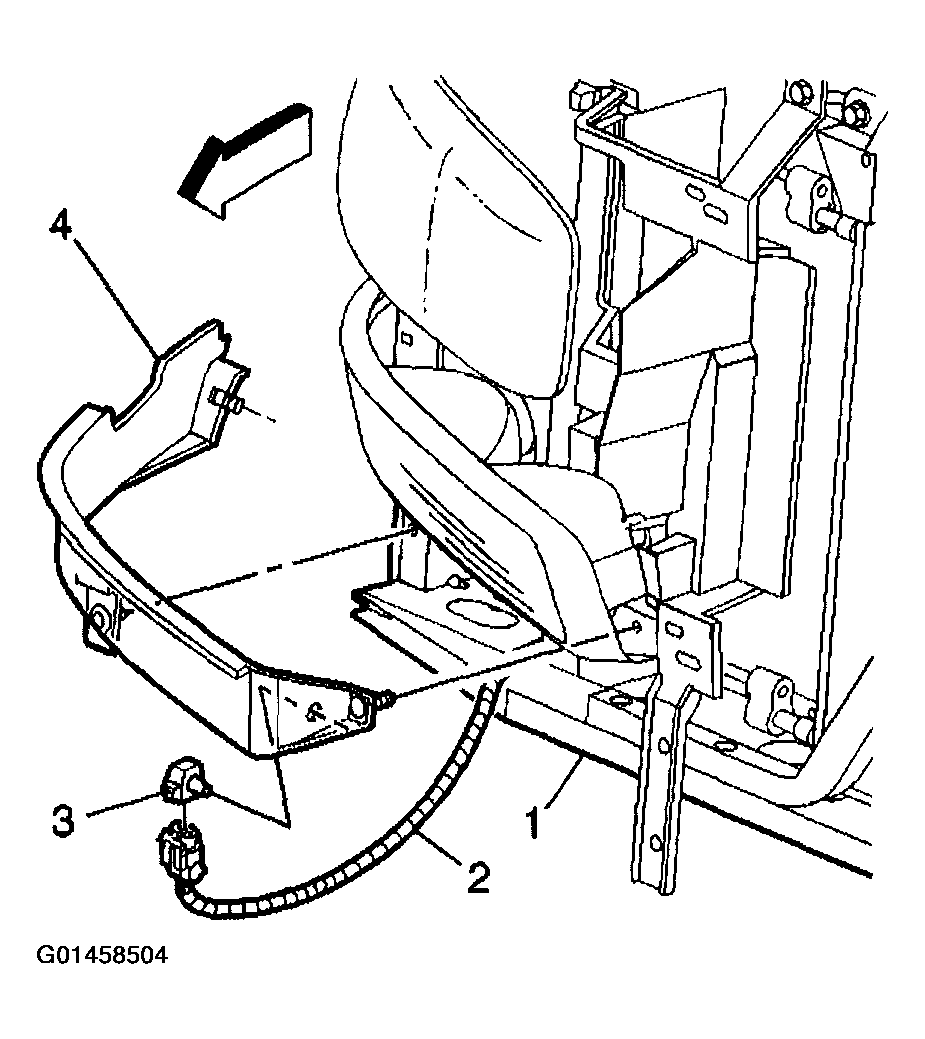

    Fig 1: Removing Ambient Air Temperature Sensor
    G01458504Courtesy of GENERAL MOTORS CORP.
