Scan Tool Data List

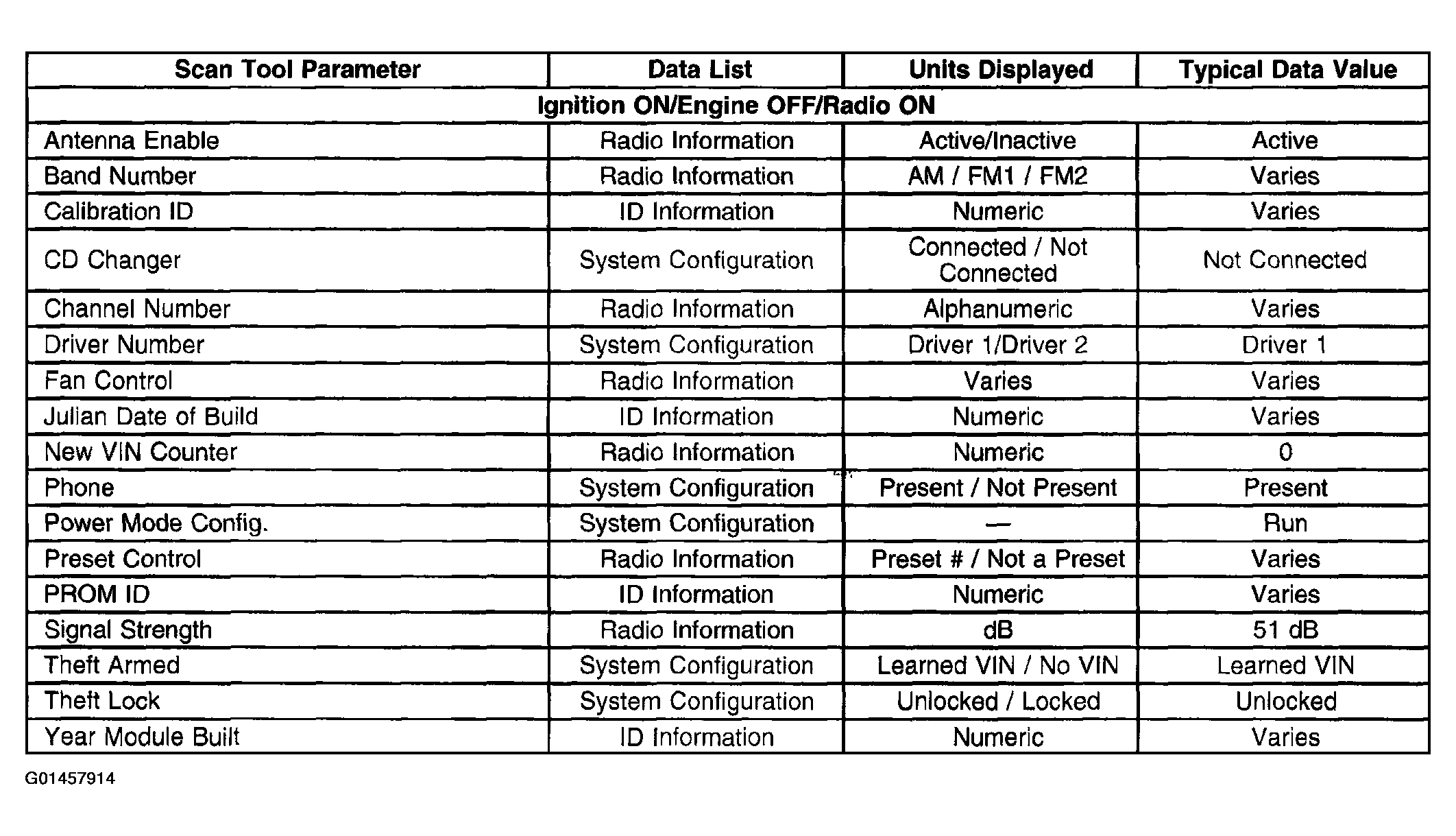

Fig 1: Scan Tool Data - Radio (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

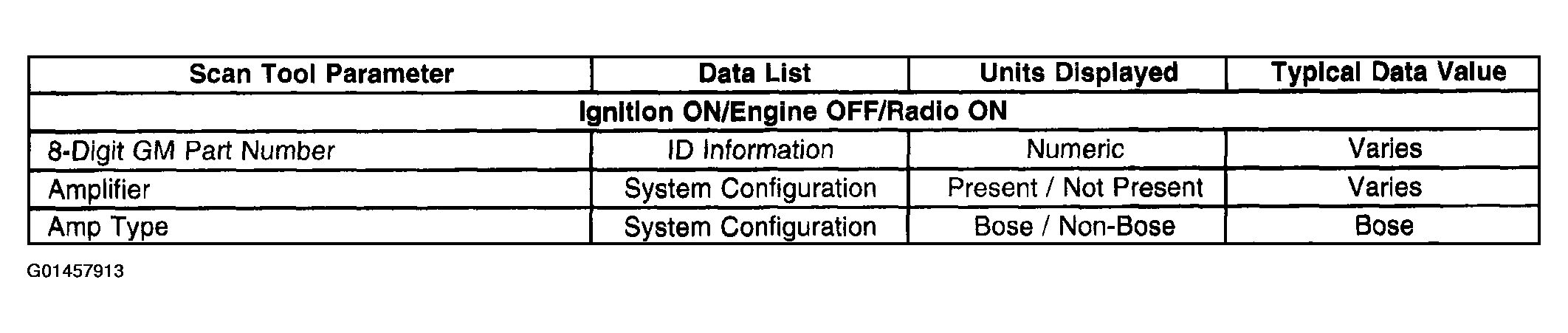

Fig 2: Scan Tool Data - Radio (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
