Cruise Control Connector End Views
Cruise Control Connector End Views

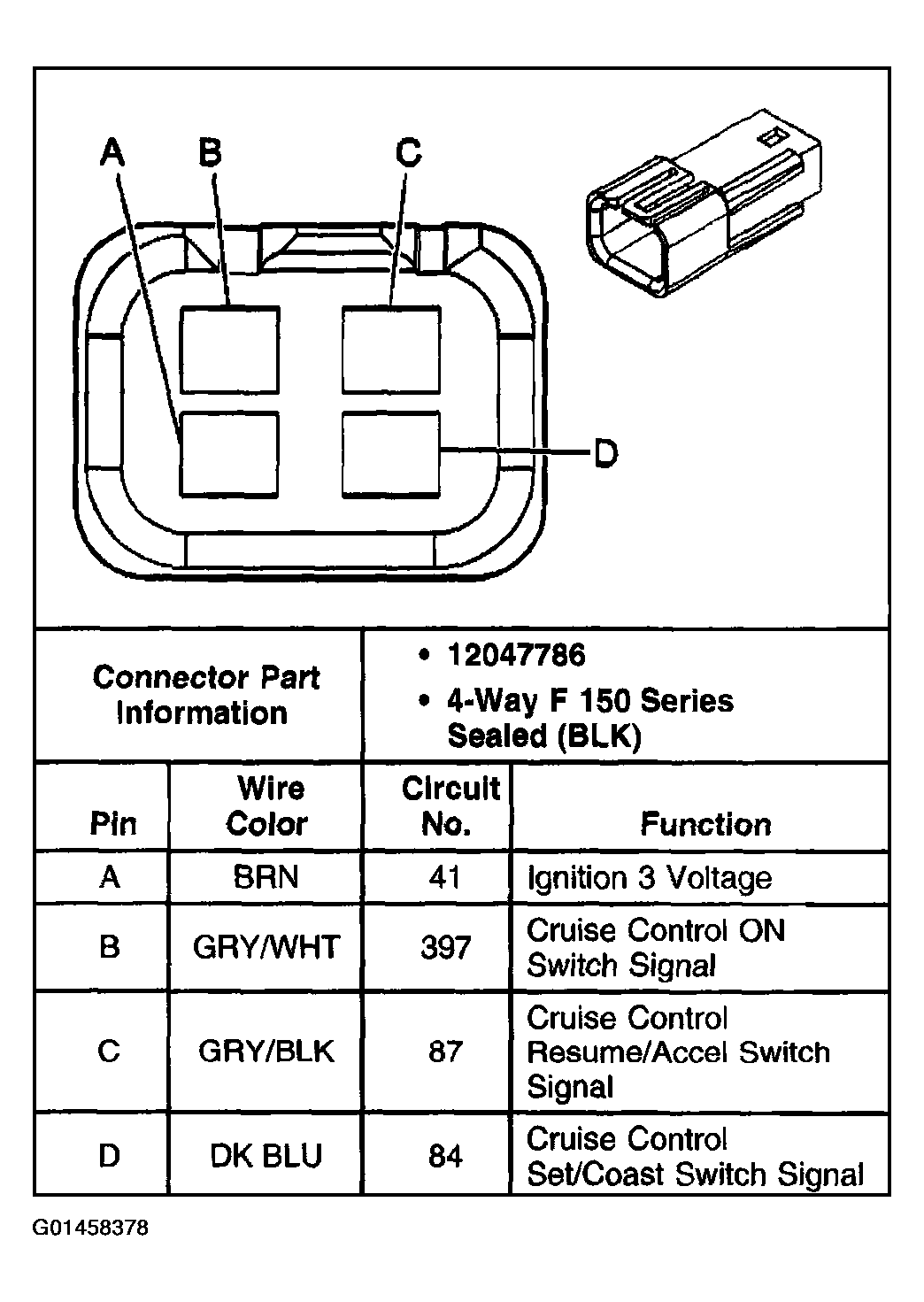

Fig 1: Identifying Cruise Control On/Off Switch Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
