Installation Procedure

  1. Install the shift control module to the bracket.

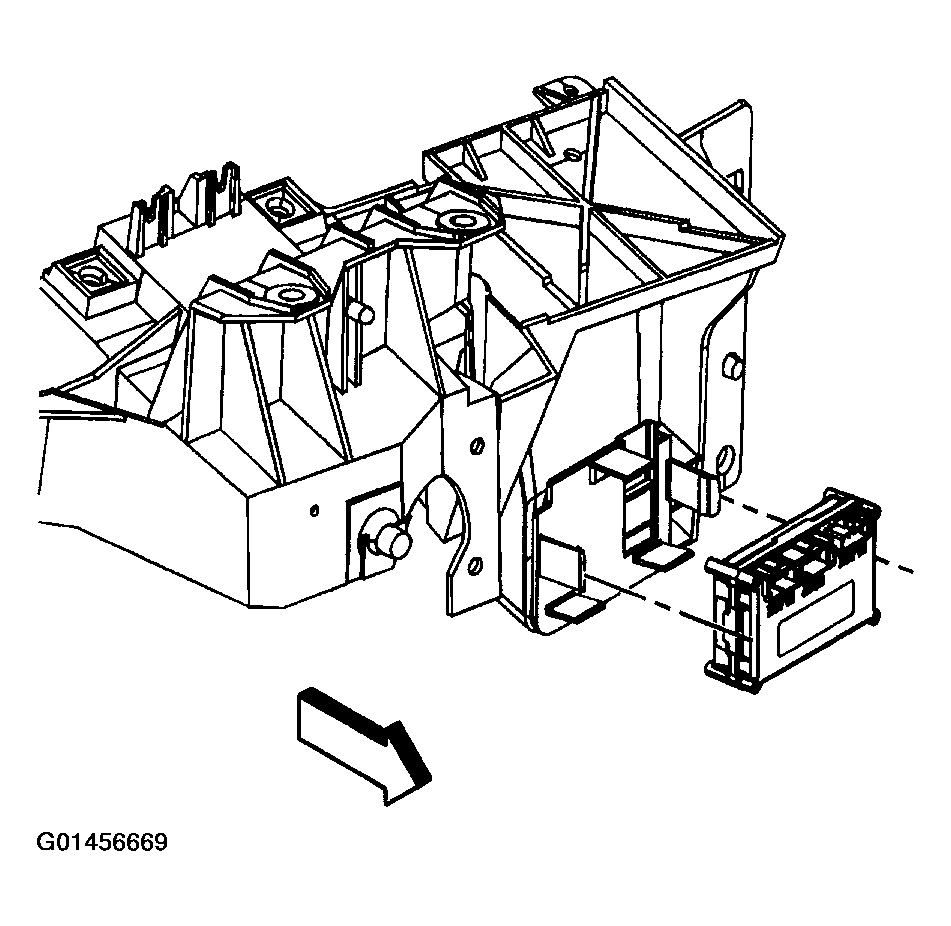

    Fig 1: Installing Shift Control Module To Bracket
    G01456669Courtesy of GENERAL MOTORS CORP.
  2. Connect the shift control module electrical connectors.
  3. Start the engine and test the automatic transfer case system for proper shift operation.

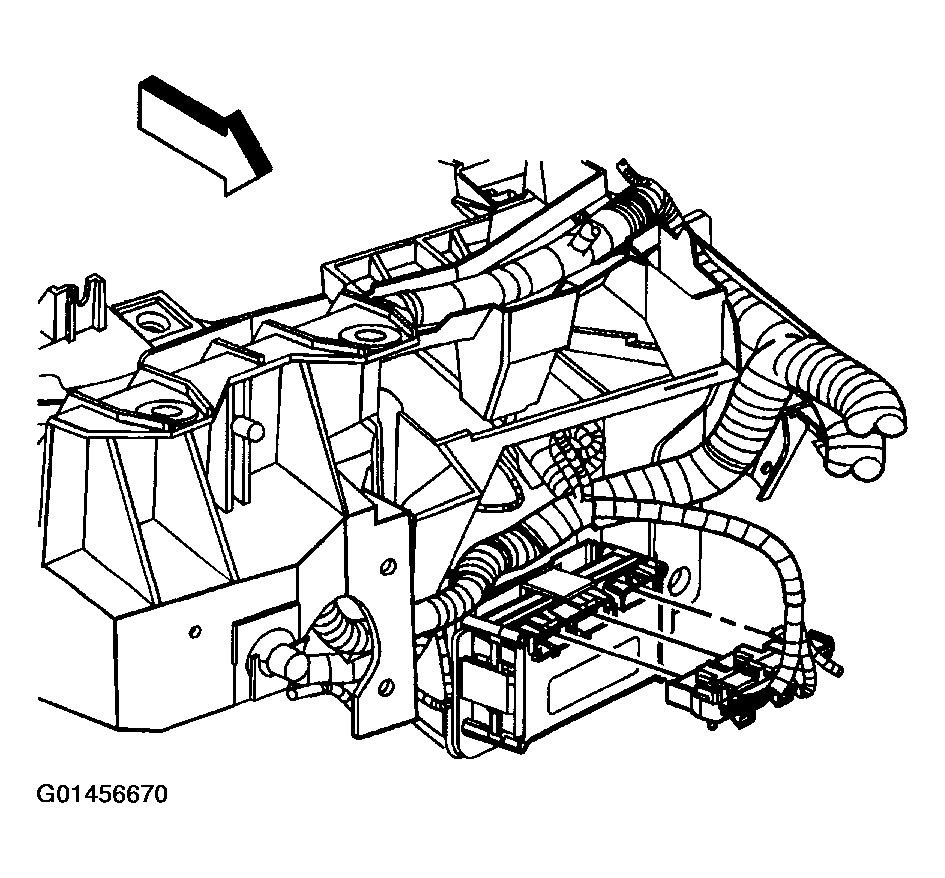

    Fig 2: Connecting Shift Control Module Electrical Connectors
    G01456670Courtesy of GENERAL MOTORS CORP.
