Transfer Case - NVG 149-NP (Unit Repair)
>>
Visual Identification
>>
Transfer Case Disassembled View
Transfer Case Disassembled View

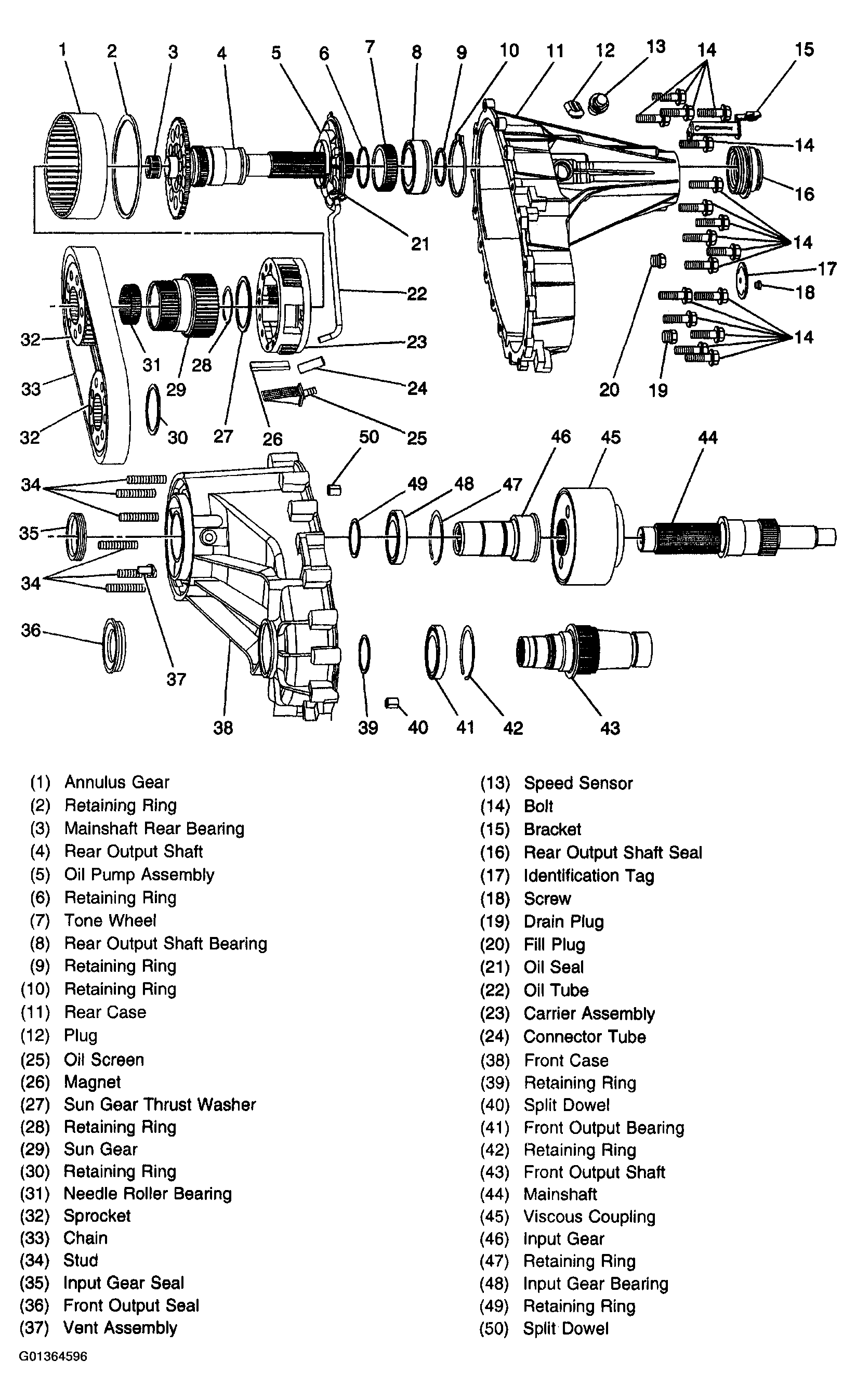

Fig 1: Exploded View Of Transfer Case Assembly
