Steering Wheel Speed/Position Sensor Connector End View

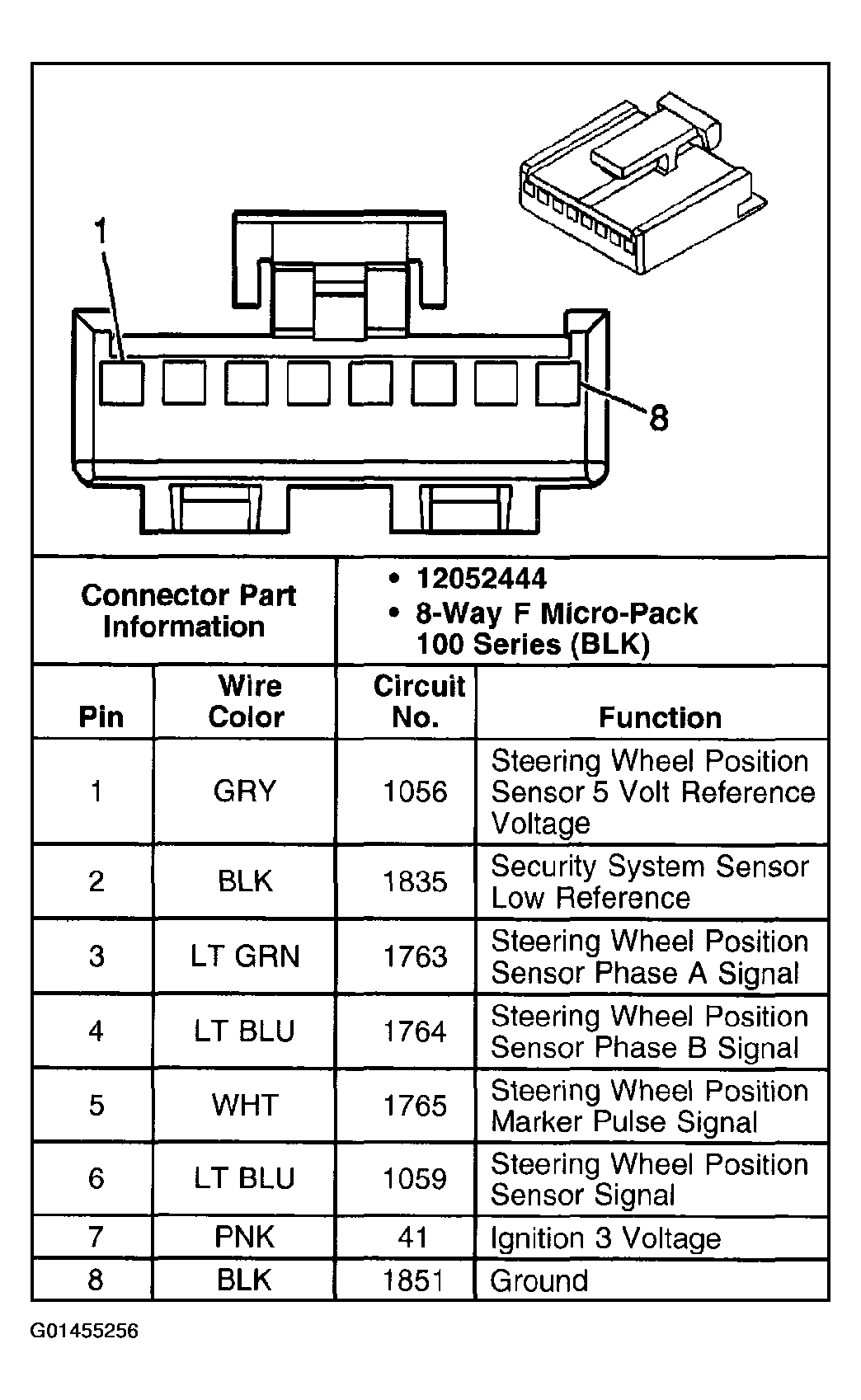

Fig 1: Steering Wheel Speed/Position Sensor Connector End View

G01455256

Courtesy of GENERAL MOTORS CORP.
