Rear Wheel Steering Mode Select Switch Connector End View

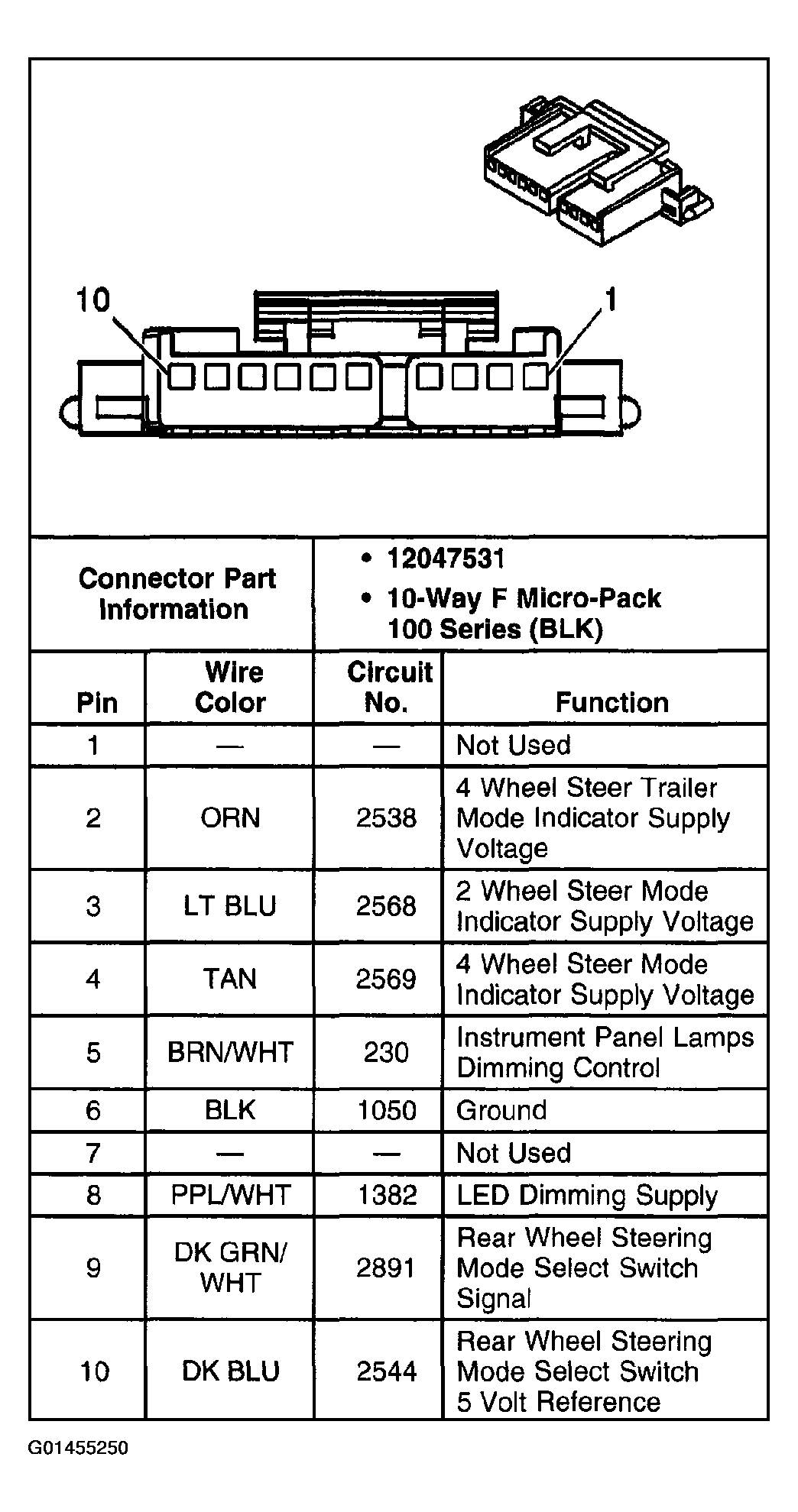

Fig 1: Rear Wheel Steering Mode Select Switch Connector End View

G01455250

Courtesy of GENERAL MOTORS CORP.
