Radio Antenna Module Connector End View

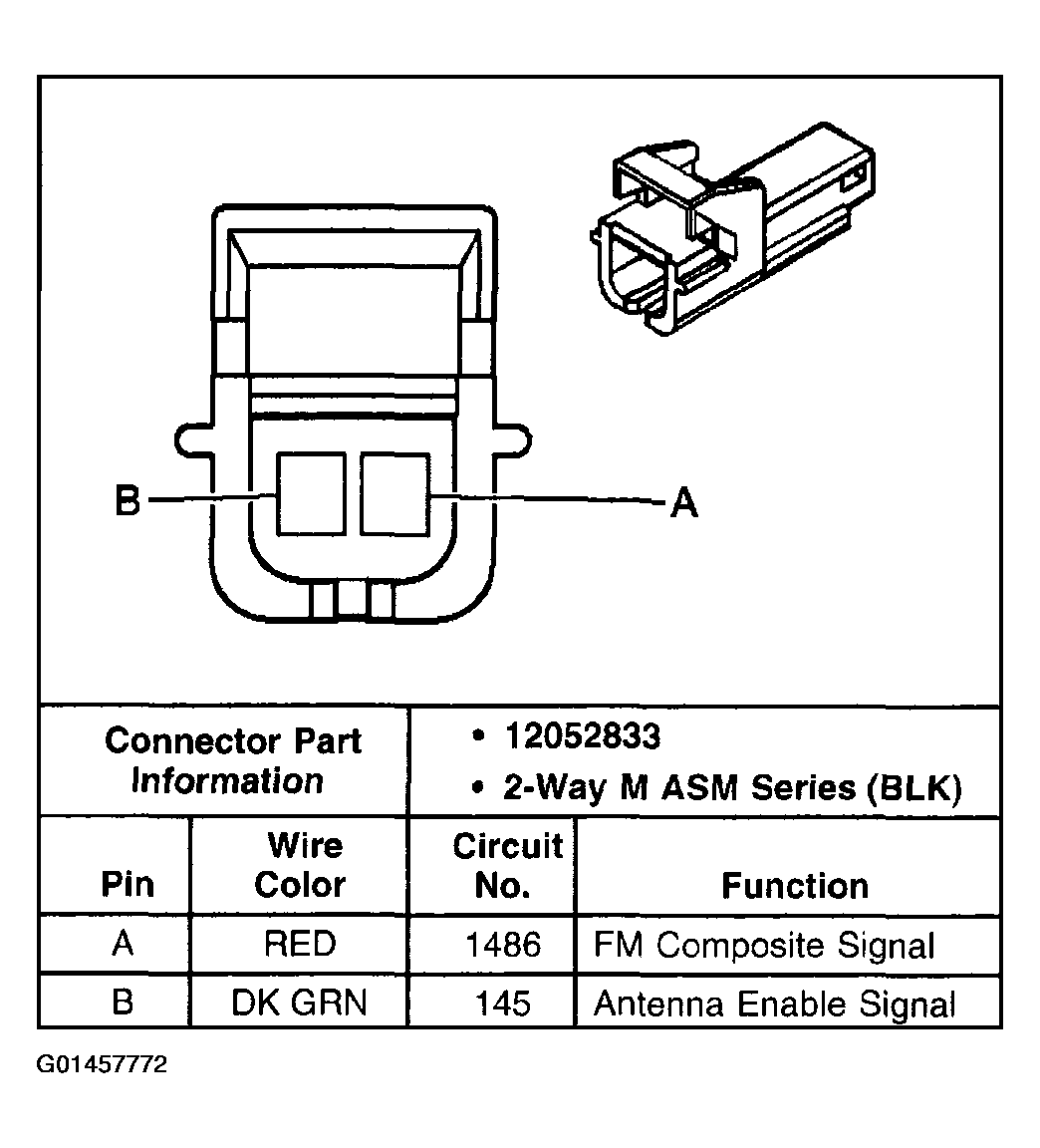

Fig 1: Radio Antenna Module Connector End View

G01457772

Courtesy of GENERAL MOTORS CORP.
