Powertrain Control Module (PCM) - C2 Connector End View (2 Of 3)

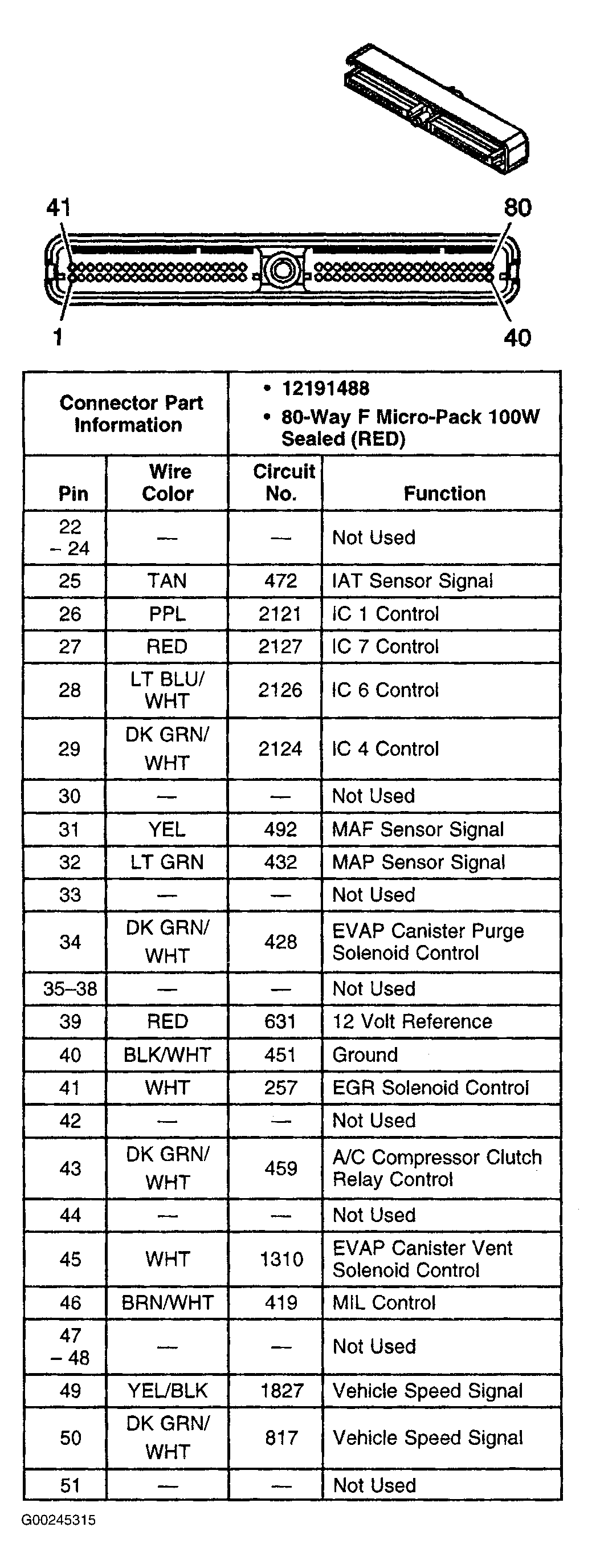

Fig 1: Powertrain Control Module (PCM) - C2 Connector End View (2 Of 3)

G00245315

Courtesy of GENERAL MOTORS CORP.
