Multifunction Accessory Switch Connector End View

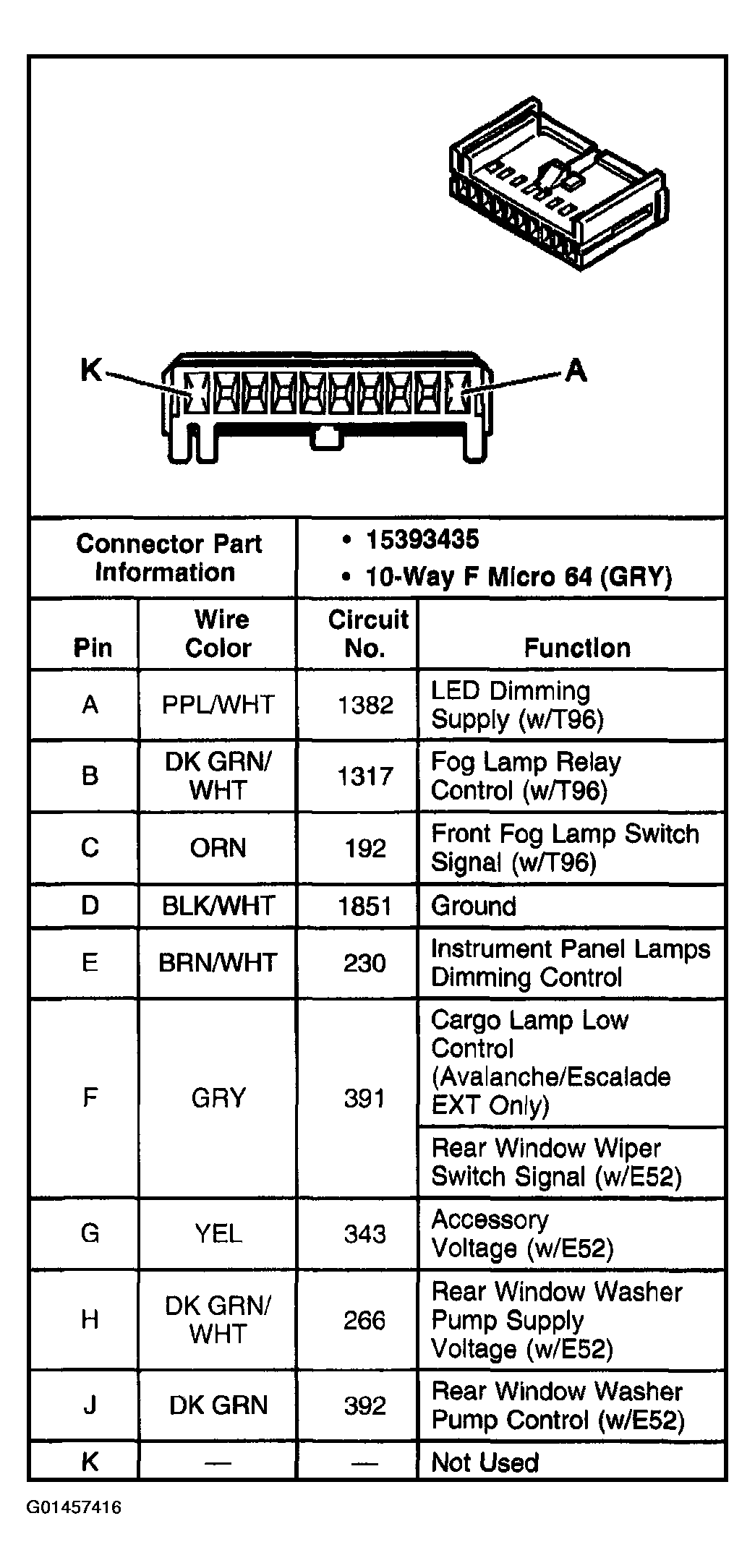

Fig 1: Multifunction Accessory Switch Connector End View

G01457416

Courtesy of GENERAL MOTORS CORP.
